FAG 61903-2RSR-HLC 1 Row Ball Bearing - 17 mm ID, 30 mm OD
- RS Stock No.:
- 260-0696
- Mfr. Part No.:
- 61903-2RSR-HLC
- Manufacturer:
- FAG
Subtotal (1 unit)*
PHP1,782.02
(exc. VAT)
PHP1,995.86
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 27 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP1,782.02 |
*price indicative
- RS Stock No.:
- 260-0696
- Mfr. Part No.:
- 61903-2RSR-HLC
- Manufacturer:
- FAG
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Ball Bearing | |
| Inside Diameter | 17mm | |
| Outside Diameter | 30mm | |
| Race Width | 7mm | |
| Ball Material | Steel | |
| Race Material | Bearing Steel | |
| Cage Material | Steel | |
| End Type | Closed | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 2.56kN | |
| Dynamic Load Rating | 4.59kN | |
| Series | 619-2RSR | |
| Standards/Approvals | No | |
| Bore Type | Cylindrical | |
| Limiting Speed | 12700rpm | |
| Race Type | Deep Groove | |
| Bearing Type | Single Row Deep Groove Ball | |
| Flange Outside Diameter | 30mm | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Ball Bearing | ||
Inside Diameter 17mm | ||
Outside Diameter 30mm | ||
Race Width 7mm | ||
Ball Material Steel | ||
Race Material Bearing Steel | ||
Cage Material Steel | ||
End Type Closed | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 2.56kN | ||
Dynamic Load Rating 4.59kN | ||
Series 619-2RSR | ||
Standards/Approvals No | ||
Bore Type Cylindrical | ||
Limiting Speed 12700rpm | ||
Race Type Deep Groove | ||
Bearing Type Single Row Deep Groove Ball | ||
Flange Outside Diameter 30mm | ||
RoHS Status: Exempt

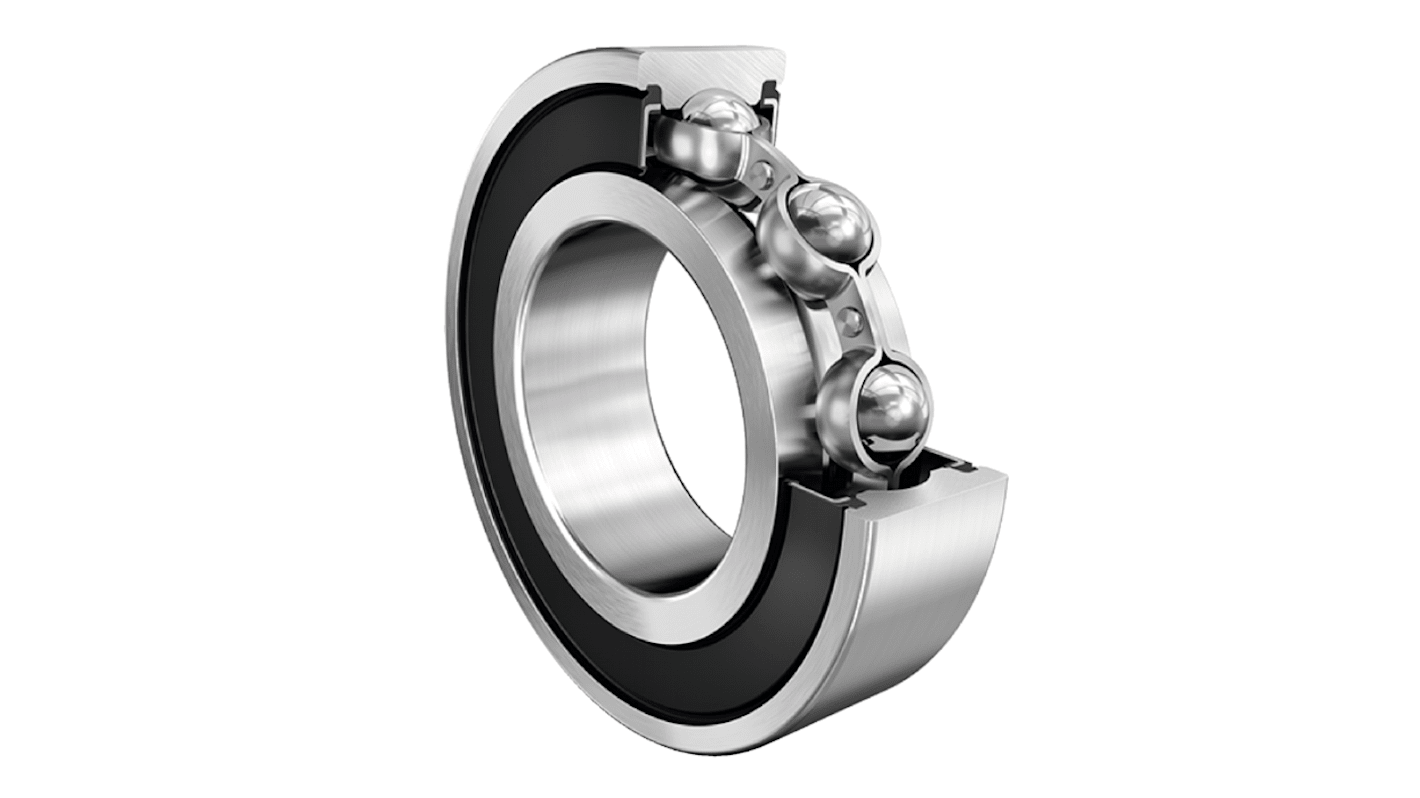

Schaeffler 619-2RSR Series Ball Bearing, 30mm Outside Diameter, 17mm Inside Diameter - 61903-2RSR-HLC
This ball bearing is a sealed single-row deep-groove radial bearing designed to support rotational loads in Compact assemblies. It operates across a wide temperature range and is suitable for applications requiring sealed protection and steel construction while maintaining high rotational capability.
Features and Benefits:
• Sealed construction limits contamination and reduces maintenance
• Steel cage offers Durable retention under continuous operation
• Internal clearance CN provides predictable axial and radial play
• Static load capacity 2.56 kN resists high stationary loads
• Dynamic load capacity 4.59 kN supports sustained radial loading
• Limiting speed 12,700 r/min enables high-speed miniature operation
• Steel cage offers Durable retention under continuous operation
• Internal clearance CN provides predictable axial and radial play
• Static load capacity 2.56 kN resists high stationary loads
• Dynamic load capacity 4.59 kN supports sustained radial loading
• Limiting speed 12,700 r/min enables high-speed miniature operation
Applications
• Suitable for precision motor shafts in Compact drives
• Ideal for small gearbox and transmission bearings
• Used with rotary actuators in automation equipment
• Can be used for wheel hubs in lightweight mechanisms
• Appropriate for instrumentation spindles requiring sealed units
• Ideal for small gearbox and transmission bearings
• Used with rotary actuators in automation equipment
• Can be used for wheel hubs in lightweight mechanisms
• Appropriate for instrumentation spindles requiring sealed units
What shaft and housing interfaces are required for correct mounting?
Minimum shaft shoulder diameter must allow a 19 mm seating and housing shoulder must not exceed 28 mm to ensure correct axial seating and ring engagement.
What operating temperatures can be expected without seal compromise?
The bearing functions from −30 °C up to 100 °C while retaining sealing integrity for typical industrial environments.
How should fillet and chamfer dimensions be accommodated during design?
Design fillet radii no larger than 0.3 mm and provide a minimum chamfer depth of 0.3 mm to avoid interference with ring edges.
What is the typical mass to consider in rotating assemblies?
The component mass is 17 g, which should be included when calculating rotor inertia and balance.
Which running clearance and fatigue limit relate to life predictions?
The internal clearance classification CN and a radial fatigue load limit of 150 N are the parameters used for bearing life and endurance calculations.
