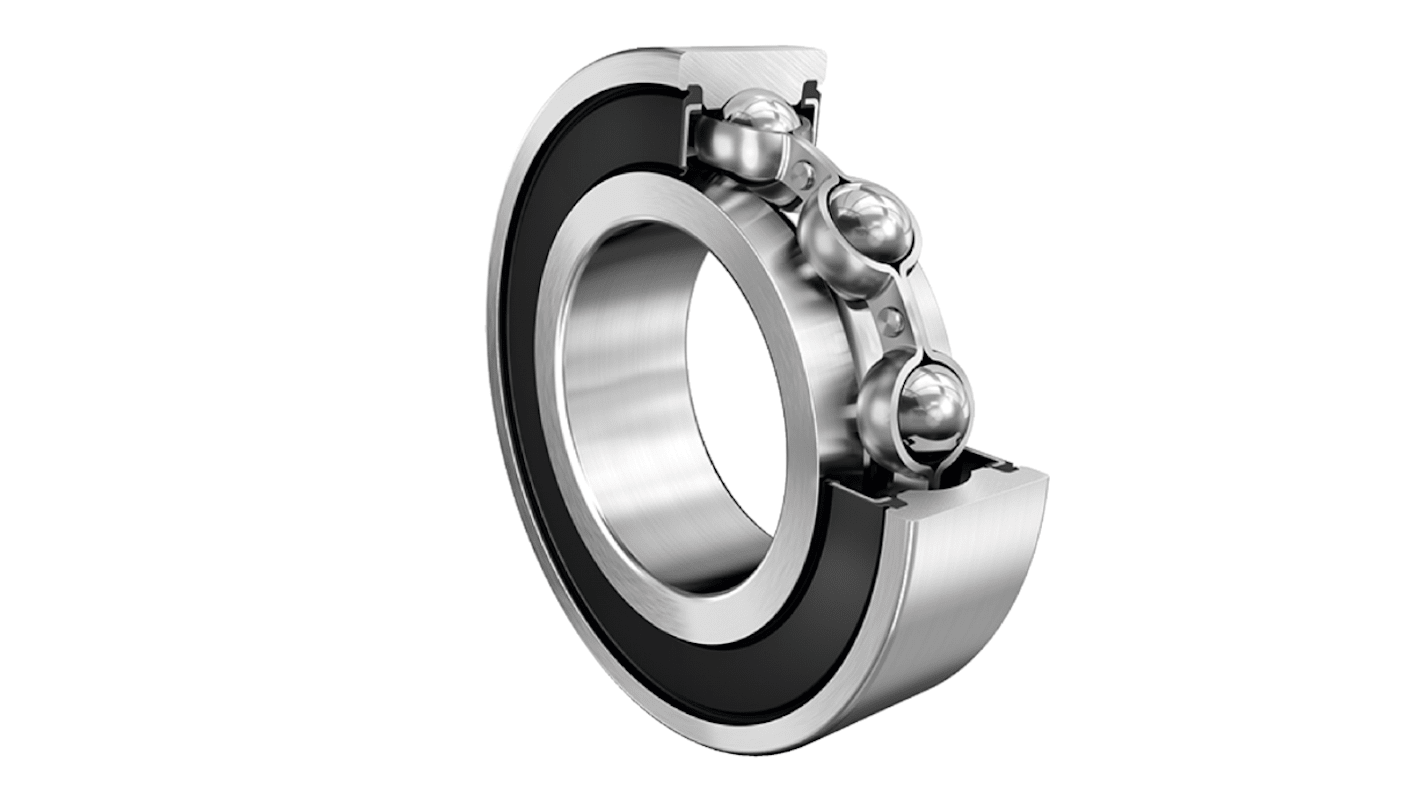

FAG 61801-2RSR-HLC 1 Row Ball Bearing - 12 mm ID, 21 mm OD
- RS Stock No.:
- 260-0685
- Mfr. Part No.:
- 61801-2RSR-HLC
- Manufacturer:
- FAG
Subtotal (1 pack of 10 units)*
PHP15,643.66
(exc. VAT)
PHP17,520.90
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 40 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 10 + | PHP1,564.366 | PHP15,643.66 |
*price indicative
- RS Stock No.:
- 260-0685
- Mfr. Part No.:
- 61801-2RSR-HLC
- Manufacturer:
- FAG
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 12mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 21mm | |
| Race Width | 5mm | |
| Cage Material | Steel | |
| Ball Material | Steel | |
| Race Material | Bearing Steel | |
| End Type | Closed | |
| Number of Rows | 1 | |
| Static Load Rating | 1.04kN | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 1.92kN | |
| Bore Type | Cylindrical | |
| Series | 618-2RSR | |
| Standards/Approvals | No | |
| Limiting Speed | 18100rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Deep Groove | |
| Flange Outside Diameter | 21mm | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 12mm | ||
Product Type Ball Bearing | ||
Outside Diameter 21mm | ||
Race Width 5mm | ||
Cage Material Steel | ||
Ball Material Steel | ||
Race Material Bearing Steel | ||
End Type Closed | ||
Number of Rows 1 | ||
Static Load Rating 1.04kN | ||
Internal Clearance CN | ||
Dynamic Load Rating 1.92kN | ||
Bore Type Cylindrical | ||
Series 618-2RSR | ||
Standards/Approvals No | ||
Limiting Speed 18100rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Deep Groove | ||
Flange Outside Diameter 21mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP
Schaeffler 618-2RSR Series Ball Bearing, 21mm Outside Diameter, 12mm Inside Diameter - 61801-2RSR-HLC
This ball bearing is a single-row deep-groove component designed to support radial loads in rotating assemblies where sealed protection and Compact form are required. It operates across a broad temperature span and is intended for use in applications demanding high rotational speed and sealed containment of the internal elements.
Features and Benefits:
• Dynamic load capacity 1.92 kN improves operational endurance
• Static load capacity 1.04 kN resists deformation under stoppage
• Limiting speed 18 100 r/min enables high-speed rotational use
• CN internal clearance ensures controlled axial and radial play
• Steel cage and sealed construction reduce contamination ingress
• Bearing steel races provide wear resistance and service life
• Static load capacity 1.04 kN resists deformation under stoppage
• Limiting speed 18 100 r/min enables high-speed rotational use
• CN internal clearance ensures controlled axial and radial play
• Steel cage and sealed construction reduce contamination ingress
• Bearing steel races provide wear resistance and service life
Applications
• Suitable for Compact electric motor shafts
• Ideal for precision gearbox input bearings
• Used with small pulleys and idler assemblies
• Can be used for automation actuator rotary joints
• Suitable for handheld power-tool spindle supports
• Ideal for precision gearbox input bearings
• Used with small pulleys and idler assemblies
• Can be used for automation actuator rotary joints
• Suitable for handheld power-tool spindle supports
What are the operating temperature limits for this bearing?
It functions between -30°C and 100°C.
What mounting shoulder dimensions must the assembly respect?
Shaft shoulder minimum diameter is 14 mm and housing shoulder maximum diameter is 19 mm for correct seating.
How should fillet and chamfer dimensions be treated during installation?
Maximum fillet radius permitted is 0.3 mm and minimum chamfer is 0.3 mm to avoid interference with ring profiles.
What are the inner and outer reference diameters for ring calibration?
The inner ring calibration diameter is 13.8 mm and the outer ring calibration diameter is 19.2 mm.
What is the component mass to consider in rotating mass calculations?
The unit weight is 0.009 kg for inertia and balance planning.
