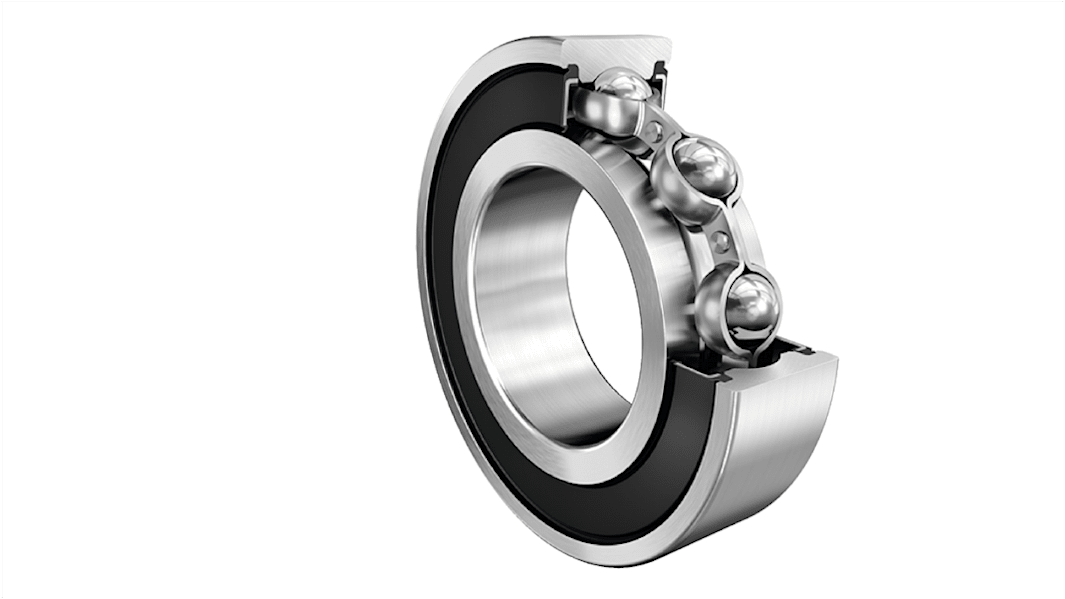

FAG S6201-2RSR-HLC 1 Row Ball Bearing - 12 mm ID, 32 mm OD
- RS Stock No.:
- 260-0680
- Mfr. Part No.:
- S6201-2RSR-HLC
- Manufacturer:
- FAG
Subtotal (1 unit)*
PHP1,720.03
(exc. VAT)
PHP1,926.43
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 158 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP1,720.03 |
*price indicative
- RS Stock No.:
- 260-0680
- Mfr. Part No.:
- S6201-2RSR-HLC
- Manufacturer:
- FAG
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Ball Bearing | |
| Inside Diameter | 12mm | |
| Outside Diameter | 32mm | |
| Race Width | 10mm | |
| Ball Material | Stainless Steel | |
| Cage Material | Steel | |
| Race Material | Corrosion Resistant Material | |
| End Type | Closed | |
| Number of Rows | 1 | |
| Static Load Rating | 2.44kN | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 5.78kN | |
| Bore Type | Parallel | |
| Series | S62-2RSR | |
| Standards/Approvals | No | |
| Limiting Speed | 14500rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Ball Bearing | ||
Inside Diameter 12mm | ||
Outside Diameter 32mm | ||
Race Width 10mm | ||
Ball Material Stainless Steel | ||
Cage Material Steel | ||
Race Material Corrosion Resistant Material | ||
End Type Closed | ||
Number of Rows 1 | ||
Static Load Rating 2.44kN | ||
Internal Clearance CN | ||
Dynamic Load Rating 5.78kN | ||
Bore Type Parallel | ||
Series S62-2RSR | ||
Standards/Approvals No | ||
Limiting Speed 14500rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Plain | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP
The FAG deep groove ball bearing has 12 mm bore diameter and 10 mm width with 9.8 calculation factor.
Operating temperature -30 to 100 °C
