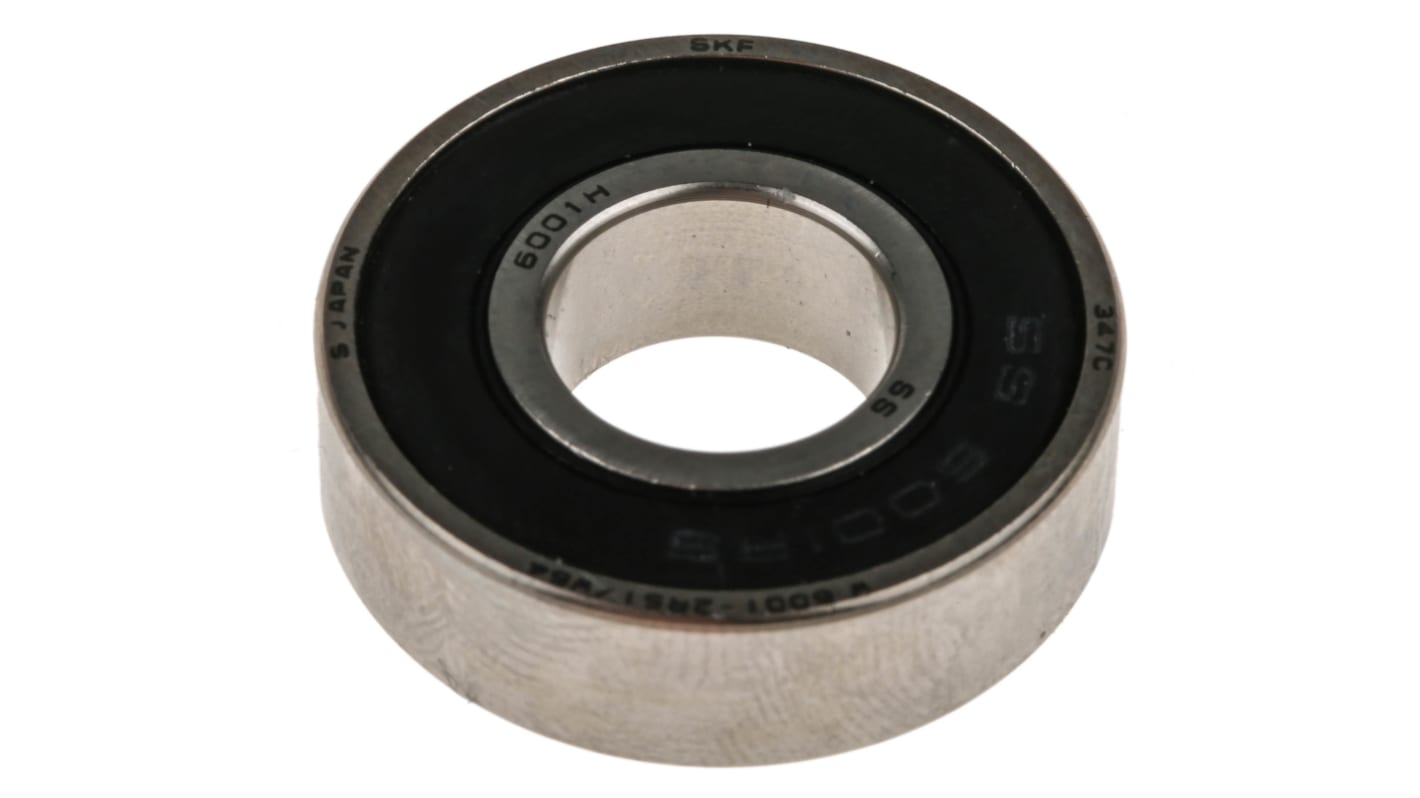

SKF W 6001-2RS1/W64 1 Row Deep Groove Ball Bearing - 12 mm ID, 28 mm OD
- RS庫存編號:
- 233-7234
- 製造零件編號:
- W 6001-2RS1/W64
- 製造商:
- SKF
小計（1 件）*
TWD3,600.00
(不含稅)
TWD3,780.00
(含稅)
訂單超過 $1,300.00 免費送貨
暫時缺貨
- 從 2026年11月04日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD3,600.00 |
* 參考價格
- RS庫存編號:
- 233-7234
- 製造零件編號:
- W 6001-2RS1/W64
- 製造商:
- SKF
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | SKF | |
| Inside Diameter | 12mm | |
| Product Type | Deep Groove Ball Bearing | |
| Outside Diameter | 28mm | |
| Race Width | 8mm | |
| Cage Material | Stainless Steel | |
| Ball Material | Stainless Steel | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Static Load Rating | 2.36kN | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 4.42kN | |
| Standards/Approvals | No | |
| Series | W 6001-2RS1 | |
| Bore Type | Cylindrical | |
| Limiting Speed | 16000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| 選取全部 | ||
|---|---|---|
品牌 SKF | ||
Inside Diameter 12mm | ||
Product Type Deep Groove Ball Bearing | ||
Outside Diameter 28mm | ||
Race Width 8mm | ||
Cage Material Stainless Steel | ||
Ball Material Stainless Steel | ||
End Type Sealed | ||
Number of Rows 1 | ||
Static Load Rating 2.36kN | ||
Internal Clearance CN | ||
Dynamic Load Rating 4.42kN | ||
Standards/Approvals No | ||
Series W 6001-2RS1 | ||
Bore Type Cylindrical | ||
Limiting Speed 16000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
- COO (Country of Origin):
- SE
SKF W 6001-2RS1 Series Deep Groove Ball Bearing, 12mm Inside Diameter, 28mm Outside Diameter - W 6001-2RS1/W64
This deep groove ball bearing is designed to support rotary shafts in Compact mechanical assemblies, offering sealed protection and robust stainless construction for use in automation, electronics and electrical applications. It operates effectively at high rotational speeds and suits environments where contamination control and long service intervals are required.
Features and Benefits:
• Sealed design reduces ingress and maintenance needs
• Stainless steel balls resist corrosion for longer service life
• Stainless steel cage improves dimensional stability under load
• High limiting speed enables Rapid rotational operation
• CN internal clearance permits controlled shaft radial movement
• Single-row configuration supports radial loads with low friction
• Stainless steel balls resist corrosion for longer service life
• Stainless steel cage improves dimensional stability under load
• High limiting speed enables Rapid rotational operation
• CN internal clearance permits controlled shaft radial movement
• Single-row configuration supports radial loads with low friction
Applications
• Suitable for high-speed motor spindles in automation systems
• Ideal for precision fans and blowers in electronics cooling
• Used for small gearboxes in electrical actuators
• Can be used for rotary encoders and sensor shafts
• Suitable for handheld tools requiring sealed bearings
• Ideal for precision fans and blowers in electronics cooling
• Used for small gearboxes in electrical actuators
• Can be used for rotary encoders and sensor shafts
• Suitable for handheld tools requiring sealed bearings
What load characteristics does it present under static conditions?
It exhibits a static load capacity of 2.36 kN, indicating the maximum sustained load it can hold without permanent deformation.
How does the bearing perform under dynamic operating conditions?
Its dynamic load rating is 4.42 kN, which defines the load it can endure while rotating for standard life calculations.
What rotational speed limits should be observed for high-speed applications?
The bearing’s maximum permissible speed is 16,000 r/min when installed and lubricated according to typical sealed bearing practice.
Which materials are used for the rolling elements and cage to handle corrosive environments?
Both the balls and the cage are MADE from stainless steel to provide enhanced resistance to corrosion and maintain mechanical integrity.
What internal geometry allows for slight shaft misalignment or thermal growth?
The specified CN clearance gives controlled internal radial play to accommodate shaft displacement and thermal expansion without excessive preload.
