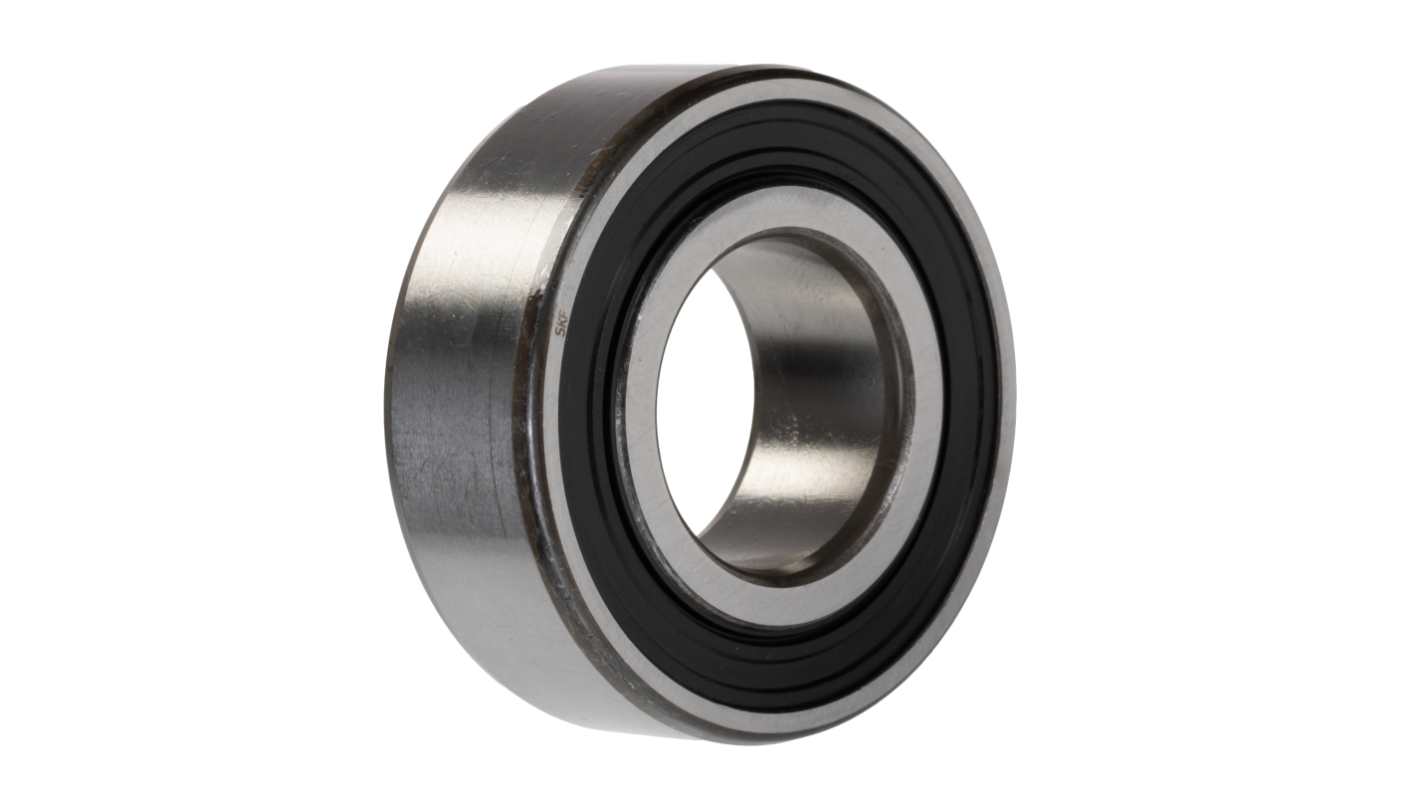

SKF 62203-2RS1 1 Row Deep Groove Ball Bearing - 17 mm ID, 40 mm OD
- RS Stock No.:
- 207-6615
- Mfr. Part No.:
- 62203-2RS1
- Manufacturer:
- SKF
Subtotal (1 unit)*
PHP1,751.94
(exc. VAT)
PHP1,962.17
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 50 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP1,751.94 |
*price indicative
- RS Stock No.:
- 207-6615
- Mfr. Part No.:
- 62203-2RS1
- Manufacturer:
- SKF
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Deep Groove Ball Bearing | |
| Inside Diameter | 17mm | |
| Outside Diameter | 40mm | |
| Race Width | 16mm | |
| Ball Material | Steel | |
| Cage Material | Sheet Metal | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 4.75kN | |
| Dynamic Load Rating | 9.56kN | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Series | 62203-2RS1 | |
| Limiting Speed | 12000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Deep Groove Ball Bearing | ||
Inside Diameter 17mm | ||
Outside Diameter 40mm | ||
Race Width 16mm | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
End Type Sealed | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 4.75kN | ||
Dynamic Load Rating 9.56kN | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Series 62203-2RS1 | ||
Limiting Speed 12000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
SKF Deep Groove Ball Bearing, 40mm Outside Diameter, 9.56 kN Dynamic Load Rating - 62203-2RS1
This deep groove ball bearing is suitable for various mechanical applications, facilitating smooth rotation and effective performance. Its robust construction features dual seals that safeguard against contaminants, making it an appropriate choice for both industrial and commercial utilisation. The precise design allows for easy integration into systems across automation, electronics, and other sectors.
Features & Benefits
• Single row design enhances load capacity
• Dual sealed construction protects against dirt and moisture
• Steel material makes it suitable for diverse operational environments
• Capable of supporting high dynamic load ratings for demanding tasks
• Delivers consistent performance with standard clearance settings
Applications
• Utilised in electric motors and gearboxes
• Commonly used in conveyors and automated machinery
• Suitable for in pumps and fans
• Ideal for high-speed machinery across various industries
• Employed in manufacturing equipment requiring precise motion control
Is this suitable for high-speed applications?
Yes, it can effectively handle high speeds.
How does the sealing improve performance?
The seals prevent contamination, prolonging the bearing's lifespan.
Is it compatible with standard mounting systems?
Yes, it is designed to fit common mounting arrangements in industrial settings.
