Texas Instruments Audio Power Amplifier, 8-Pin, 3W VSSOP LM4871MM/NOPB
- RS Stock No.:
- 268-7534
- Mfr. Part No.:
- LM4871MM/NOPB
- Manufacturer:
- Texas Instruments

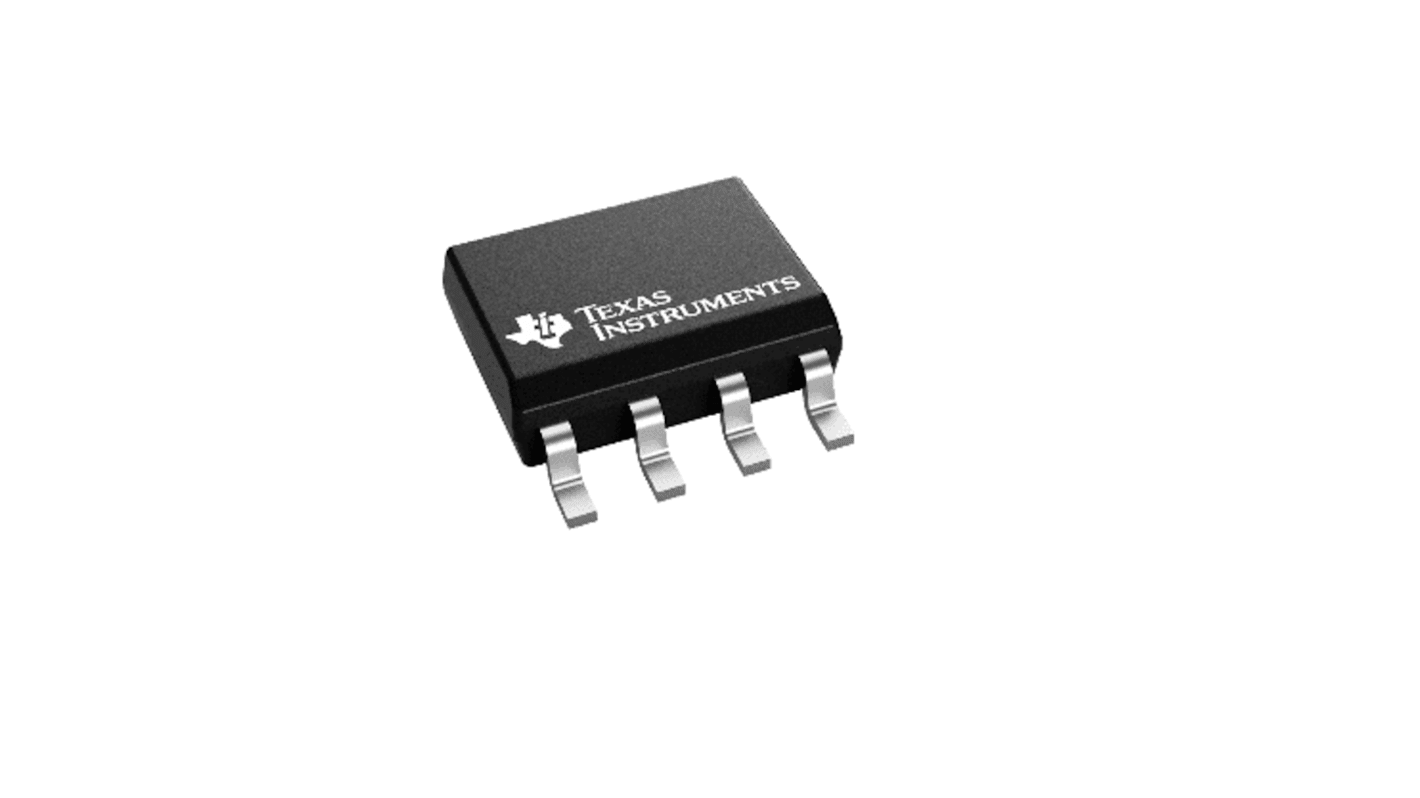

This image is representative of the product range
Get a bulk buy discount
Add 50 more to save 2%
View bulk pricing optionsSubtotal (1 pack of 5 units)*
PHP671.80
(exc. VAT)
PHP752.40
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- Plus 525 unit(s) shipping from November 09, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* | Saving |
|---|---|---|---|
| 5 - 45 | PHP134.36 | PHP671.80 | - |
| 50 - 95 | PHP130.332 | PHP651.66 | 2% |
| 100 - 245 | PHP122.51 | PHP612.55 | 8% |
| 250 - 495 | PHP111.482 | PHP557.41 | 17% |
| 500 + | PHP98.104 | PHP490.52 | 26% |
*price indicative
- RS Stock No.:
- 268-7534
- Mfr. Part No.:
- LM4871MM/NOPB
- Manufacturer:
- Texas Instruments
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Amplifier Type | Audio Power Amplifier | |
| Product Type | Audio Amplifier IC | |
| Output Power | 3W | |
| Application | Portable Computer, Low Voltage Audio System, Desktop Computer | |
| Mount Type | Surface | |
| Amplifier Class | Class A-B | |
| Number of Channels | 1 | |
| Package Type | VSSOP | |
| Pin Count | 8 | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | RoHS | |
| Height | 35mm | |
| Length | 208mm | |
| Width | 191mm | |
| Series | LM4871 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Supply Voltage | 2V | |
| Maximum Operating Temperature | 85°C | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Amplifier Type Audio Power Amplifier | ||
Product Type Audio Amplifier IC | ||
Output Power 3W | ||
Application Portable Computer, Low Voltage Audio System, Desktop Computer | ||
Mount Type Surface | ||
Amplifier Class Class A-B | ||
Number of Channels 1 | ||
Package Type VSSOP | ||
Pin Count 8 | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals RoHS | ||
Height 35mm | ||
Length 208mm | ||
Width 191mm | ||
Series LM4871 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Supply Voltage 2V | ||
Maximum Operating Temperature 85°C | ||
Automotive Standard No | ||
The Texas Instruments audio power amplifiers are designed specifically to provide high power and high fidelity audio output. They require few external components and operate on low supply voltages from 2.0 V to 5.5V. Since the amplifier does not require output coupling capacitors, bootstrap capacitors or snubber networks. It is ideally suited for low power portable systems that require minimum volume and weight.
Unity gain stable
External gain configuration capability
Shutdown current is 0.6 micro amp
