Phoenix Contact 1 Channel Galvanic Barrier, Digital, ATEX

RS Stock No.:: 709-9656
Mfr. Part No.:: 2924045
Manufacturer:: Phoenix Contact

Phoenix Contact 1 Channel Galvanic Barrier, Digital, ATEX

Subtotal (1 unit)*

PHP10,558.39

(exc. VAT)

PHP11,825.40

(inc. VAT)

FREE delivery for orders over ₱3,000.00

Stock information currently inaccessible

Units	Per Unit
1 +	PHP10,558.39

*price indicative

RS Stock No.:: 709-9656
Mfr. Part No.:: 2924045
Manufacturer:: Phoenix Contact

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Number of Channels	1
	Product Type	Galvanic Barrier
	Barrier Type	Galvanic Barrier
	Mount Type	DIN Rail
	Hazardous Area Certification	ATEX
	Terminal Type	Push-in
	Supply Voltage	19.2/30 V dc
	IP Rating	IP20
	Minimum Operating Temperature	-20°C
	Signal Type	Digital
	Maximum Safety Voltage	125, 253V dc
	Maximum Safety Current	10mA
	Maximum Operating Temperature	60°C
	Standards/Approvals	UL, CE, IEC, ATEX, RoHS, WEEE
	Series	MACX MCR-EX-SL-NAM

	Select all
	Brand Phoenix Contact
	Number of Channels 1
	Product Type Galvanic Barrier
	Barrier Type Galvanic Barrier
	Mount Type DIN Rail
	Hazardous Area Certification ATEX
	Terminal Type Push-in
	Supply Voltage 19.2/30 V dc
	IP Rating IP20
	Minimum Operating Temperature -20°C
	Signal Type Digital
	Maximum Safety Voltage 125, 253V dc
	Maximum Safety Current 10mA
	Maximum Operating Temperature 60°C
	Standards/Approvals UL, CE, IEC, ATEX, RoHS, WEEE
	Series MACX MCR-EX-SL-NAM

Datasheet 2924045

COO (Country of Origin):: DE

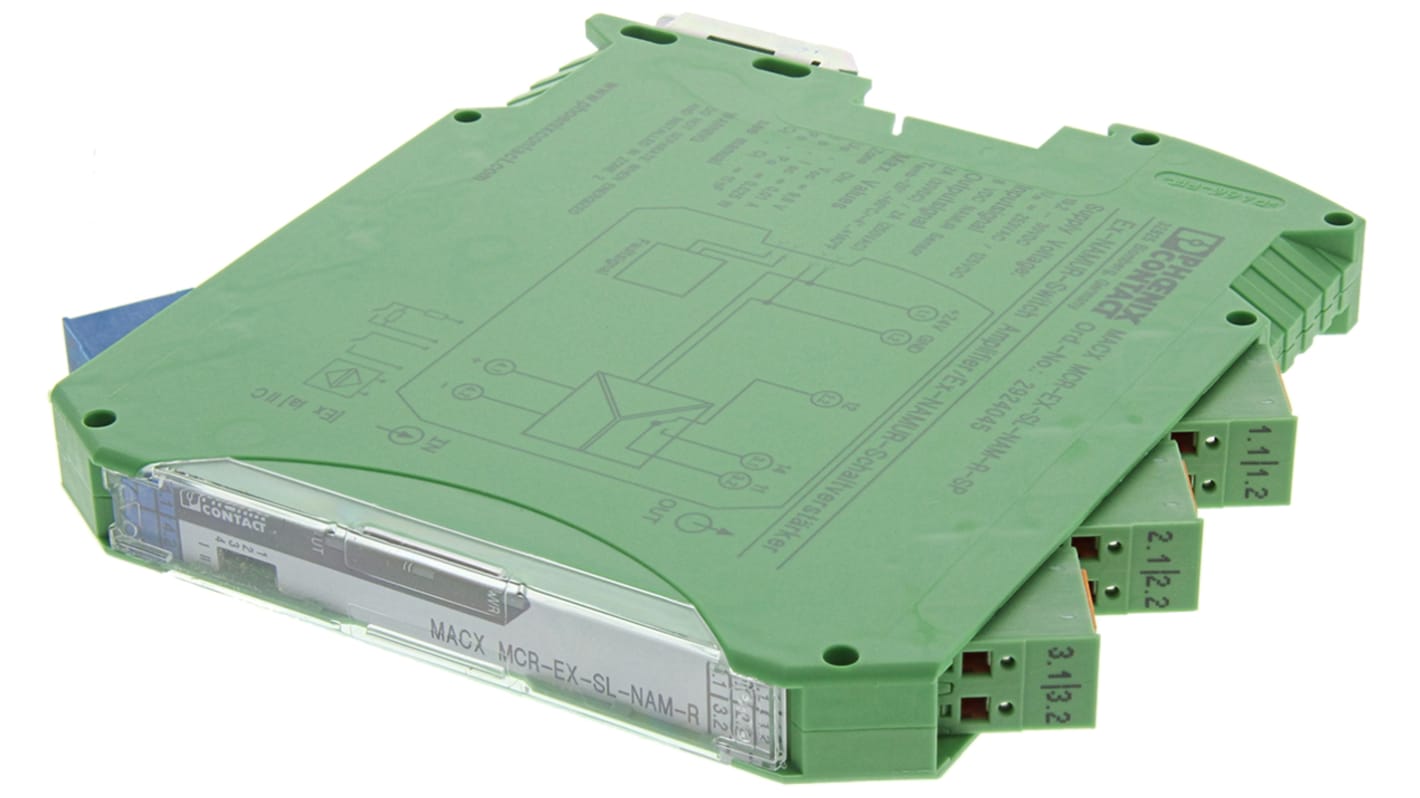

Phoenix Contact Galvanic Barrier, 125V DC, 253V AC - MACX MCR-EX-SL-NAM-R-SP - 2924045

This galvanic barrier from Phoenix Contact is an isolation amplifier that isolates high DC (direct current) levels from your device while passing a low AC (alternating current) signal. The barrier provides extra safety to your electrical device by protecting your input and output circuits from each other.

If an error occurs in this unit, the LED (light-emitting diode) indicator will illuminate to let you know. There's also an indicator that signals supply voltage and switching state, making it simple to use. The device has three-way isolation, controlling two separate output signals at one time while preventing short circuit hazards and current interference for greater safety and efficiency.

This component is built for use with proximity sensors and switches in explosive atmospheres. It can also be used in other monitoring applications such as laboratory testing, technical measurements and medical equipment.

Features & Benefits

• Distinctive Phoenix Contact green colour lets you spot it easily on your DIN rail

• ATEX hazardous area certification for use in potentially explosive environments

• Broad operating temperature range of -20°C to +60°C for use in demanding conditions

• Contacts are gold-plated to prevent corrosion for long-lasting performance

Ex i NAMUR Isolating Amplifier for Proximity Sensors and Switches

The signals are transmitted via a relay output (PDT contact) to the safe area

Line fault detection (LFD), 3-way isolation, SIL 2

Group and Category

EN 61326, ATEX II (1) GD [Ex ia] IIC, Ex II 3 G Ex nAC IIC T4 X, [Ex ia] IIC; [Ex iaD]; Ex nAC IIC T4 X, SIL 2 according to EN 61508, CUL Listed, UL Listed, IECEx, UL-EX LIS / CUL-EX LIS

Approvals

CE-compliant
