StarTech.com 1 Port VGA over Catx Extender Pair 80 m, 1920 x 1200 pixel Maximum Resolution

View all Video Extenders

Subtotal (1 unit)*

PHP16,925.73

(exc. VAT)

PHP18,956.82

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 15 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +PHP16,925.73

*price indicative

RS Stock No.:
898-8428
Distrelec Article No.:
302-20-187
Mfr. Part No.:
ST121UTPEP
Manufacturer:
StarTech.com
Find similar products by selecting one or more attributes.
Select all

Brand

StarTech.com

Video Connection Type

VGA

Product Type

Video Extender

Number of Video Ports

1

Transmission Method

Catx

Maximum Resolution

1920 x 1200 pixel

Extension Distance

80m

Sub Type

Extender Pair

Power Consumption

7.2W

Local Device Weight

36g

Remote Device Weight

36g

Local Device Depth

100mm

Local Device Height

25mm

Local Device Width

138mm

Standards/Approvals

CE/FCC

Remote Device Depth

100mm

Remote Device Height

25mm

Remote Device Width

138mm

COO (Country of Origin):
TW

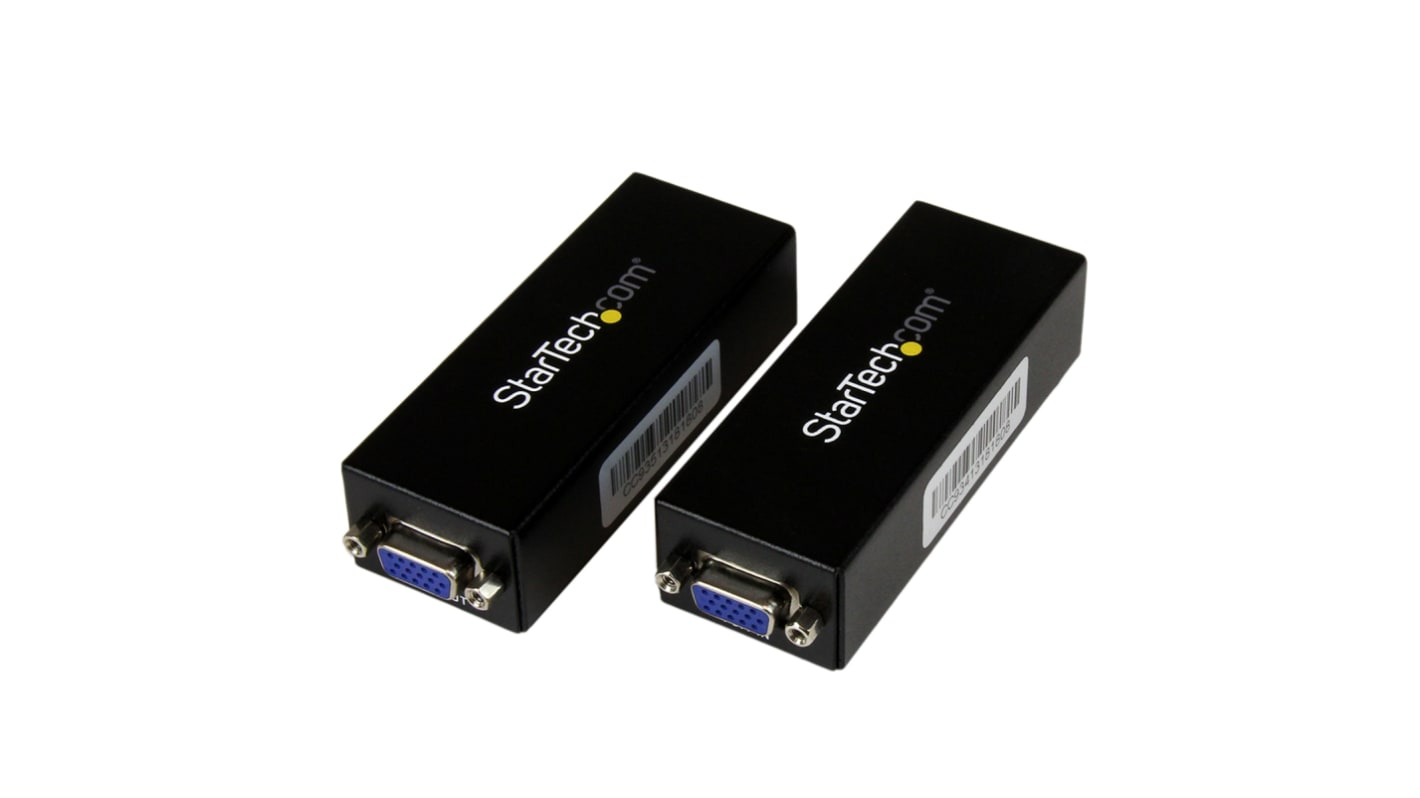

ST121UTPEP VGA Over Cat5 Extender


The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5 or better UTP cable, terminated with RJ45 connectors).

Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.

To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features & Benefits


• Extends video signal by up to 250 ft. (80m)

• Supports 1920x1200 or 1600x1200 resolutions at 150 ft. (50m)

• Supports 1280x1024 or 1024x768 resolutions at 250 ft. (80m)

• Mounting bracket included

• Single power adapter can be connected at local or remote end of the extension

• Uses standard Cat 5 or better cabling

• Kit consists of 1 Base unit and 1 Remote unit

• Pure hardware design - no software or drivers required

• The ST121UTPEP only requires one power adapter, installed at either the local or remote unit, wherever is most convenient for the application.

• Extends the connection distance of VGA displays by up to 250 feet (80 meters) offering flexibility in the placement of your equipment

• Included mounting bracket provides versatile mounting options such as a wall, desk or cabinet, for a clean and manageable installation

Applications


• Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment

• Ideal for digital signage applications in financial, educational, and business sectors

• Extend your display across harsh environment industrial sites

• Perfect for video conferencing solutions in boardrooms and office settings

• Optimize placement of your demo stations at tradeshows and in auditoriums

What’s in the package?


• VGA over Cat5 Transmitter

• VGA over Cat5 Receiver

• Installation Bracket (w/ screws)

• VGA Cable

• Universal Power Adapter (NA/UK/EU/AUS)

• Instruction Manual

FAQs


Can I route my network cables through a router or switch?

No, this device is designed to be a point-to-point solution using networking cabling only.

VGA Extender
