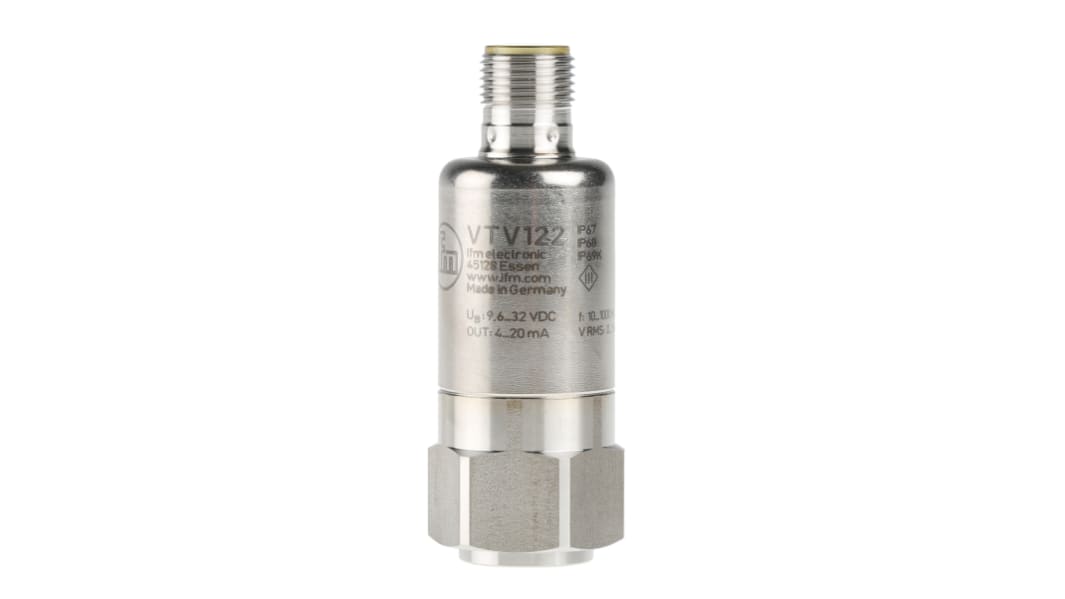

ifm electronic Vibration Sensor 25 mm/s, 20 mA Max, 32 V dc Max, 30 °C → 125 °C
- RS Stock No.:
- 123-8754
- Mfr. Part No.:
- VTV122
- Manufacturer:
- ifm electronic
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
PHP34,335.47
(exc. VAT)
PHP38,455.73
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- Plus 6 unit(s) shipping from October 19, 2026
- Plus 18 unit(s) shipping from October 22, 2026
- Plus 15 unit(s) shipping from October 29, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP34,335.47 |
| 5 + | PHP33,305.41 |
*price indicative
- RS Stock No.:
- 123-8754
- Mfr. Part No.:
- VTV122
- Manufacturer:
- ifm electronic
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Product Type | Vibration Sensor | |
| Maximum Current | 20mA | |
| Maximum DC Voltage | 32V dc | |
| Contact Resistance | 720Ω | |
| Depth | 63.25mm | |
| Minimum Operating Temperature | 30°C | |
| Maximum Shock/Vibration | 25 mm/s | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | ISO 10816 | |
| Series | VTV | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Product Type Vibration Sensor | ||
Maximum Current 20mA | ||
Maximum DC Voltage 32V dc | ||
Contact Resistance 720Ω | ||
Depth 63.25mm | ||
Minimum Operating Temperature 30°C | ||
Maximum Shock/Vibration 25 mm/s | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals ISO 10816 | ||
Series VTV | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- DE
VTV Series Vibration switches
Ifm electronic VTV series vibration transmitters monitor machinery and equipment according to ISO 10816. The robust design, high IP Rating and high temperature rating are suitable for use in harsh environments. The VTV sensors measure the true RMS velocity of non-rotating component surfaces, values are then transmitted as an analogue signal (4...20 mA) directly to the PLC.
Continuous vibration monitoring according to ISO 10816
2-wire loop powered
4...20 mA signal output
True RMS monitoring of the overall velocity
Robust metal housing provides high protection rating.
M12 connector
