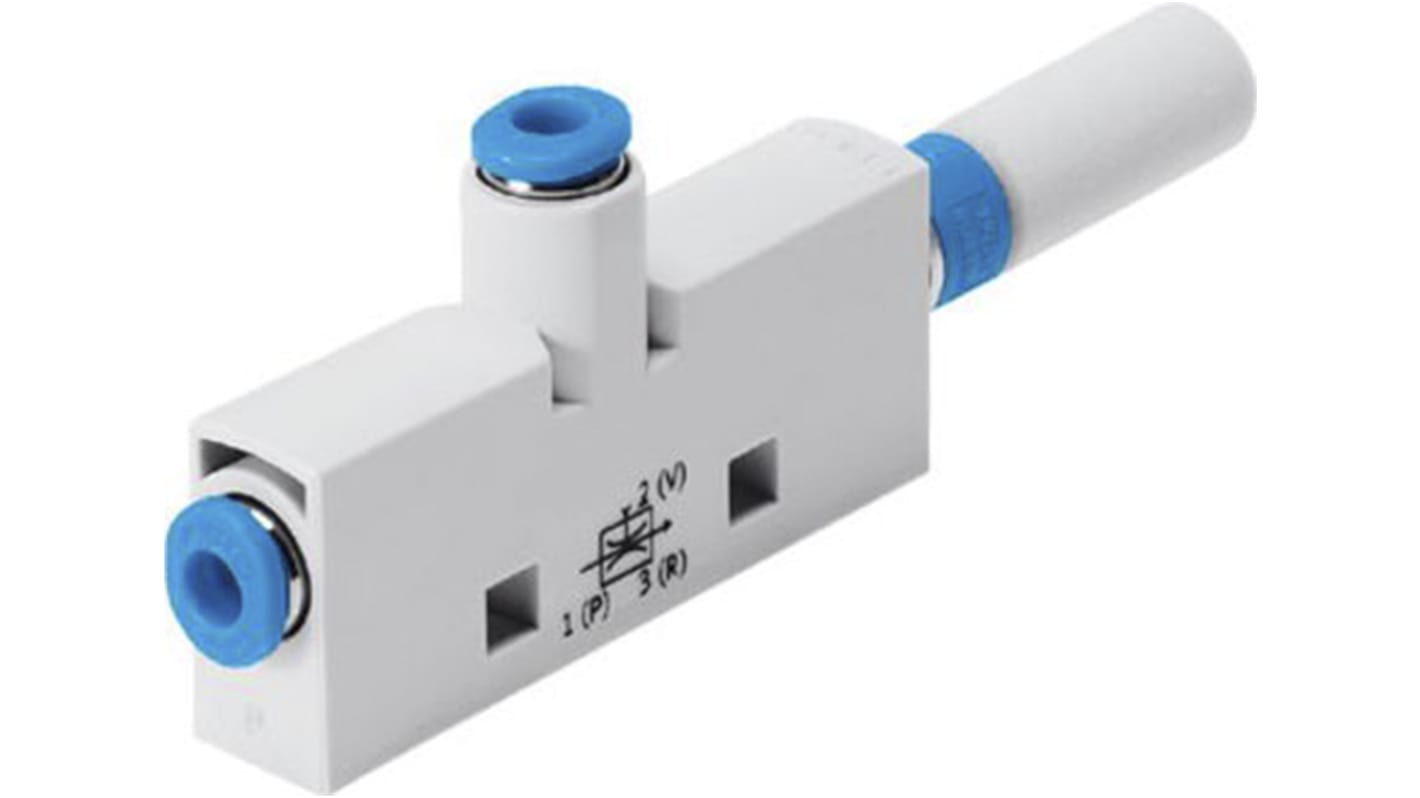

Festo Vacuum Generator, 0.45 mm nozzle, 4.5 bar 6.2 L/min, VN series

RS Stock No.:: 203-6257
Distrelec Article No.:: 304-10-246
Mfr. Part No.:: VN-05-H-T3-PQ2-VQ2-RO1
Manufacturer:: Festo

Festo Vacuum Generator, 0.45 mm nozzle, 4.5 bar 6.2 L/min, VN series

Subtotal (1 unit)*

PHP4,120.93

(exc. VAT)

PHP4,615.44

(inc. VAT)

FREE delivery for orders over ₱3,000.00

Temporarily out of stock

Shipping from September 10, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP4,120.93

*price indicative

RS Stock No.:: 203-6257
Distrelec Article No.:: 304-10-246
Mfr. Part No.:: VN-05-H-T3-PQ2-VQ2-RO1
Manufacturer:: Festo

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Product Type	Vacuum Generator
	Maximum Suction Flow	6.2L/min
	Maximum Vacuum Pressure	4.5bar
	Nozzle Diameter	0.45mm
	Series	VN
	Silencer	Yes
	Maximum Operating Temperature	60°C
	Standards/Approvals	RoHS, ISO8573-1:2010 (7:4:4)
	Hazardous Area Certification	No
	Model Number	193488
	Outlet Port Size	QS-6

	Select all
	Brand Festo
	Product Type Vacuum Generator
	Maximum Suction Flow 6.2L/min
	Maximum Vacuum Pressure 4.5bar
	Nozzle Diameter 0.45mm
	Series VN
	Silencer Yes
	Maximum Operating Temperature 60°C
	Standards/Approvals RoHS, ISO8573-1:2010 (7:4:4)
	Hazardous Area Certification No
	Model Number 193488
	Outlet Port Size QS-6

DataSheet - VN-05-H-T3-PQ2-VQ2-RO1

COO (Country of Origin):: HU

Festo Series VN Vacuum Generator, 4.5 Bar Maximum Vacuum Pressure, 6.2 L/min Maximum Suction Flow - VN-05-H-T3-PQ2-VQ2-RO1

This vacuum generator is a compact pneumatic device designed to create suction for industrial automation tasks. It operates as an inline vacuum source with a built-in silencer and is suitable for general factory use where controlled negative pressure is required. The unit is intended for applications that demand a small footprint and straightforward integration with compressed-air systems.

Features and Benefits:

• 0.45mm nozzle delivers focused suction for precise handling
• Maximum vacuum pressure 4.5 bar for strong grip force
• Maximum suction flow 6.2 L/min supports moderate throughput
• Outlet port QS-6 enables quick push-in tubing connections
• Rated maximum operating temperature 60°C for hot environments
• Conforms to ISO 8573-1:2010 (7:4:4) for air quality considerations

Applications

• Suitable for pick-and-place of small components in assembly
• Ideal for end-of-arm tooling on compact robots
• Used with suction cups for handling delicate parts
• Can be used for vacuum hold-down on light fixtures
• Used for intermittent vacuum cycles in testing rigs

What environmental approvals or restrictions apply to this device?

It is not certified for hazardous-area use and carries RoHS compliance for restricted substances.

How does the silencer affect installation options?

The integrated silencer reduces exhaust noise, allowing placement closer to workstations without separate muffling accessories.

What air quality should be supplied for reliable operation?

Supply air meeting ISO 8573-1:2010 class 7:4:4 is appropriate to prevent premature wear of the nozzle and internal components.

How does the outlet interface aid maintenance?

The QS-6 push-fit outlet permits rapid disconnection and reconnection of tubing for quick servicing.
