ILH-XQ01-S410-SC211-WIR200. Intelligent LED Solutions N5050 1 Powerstar Series 1-LEDs UV LED 420 nm 1400 mW 135 °, 4-Pin

View all UV LEDs
Bulk discount available

Subtotal (1 unit)*

PHP2,717.09

(exc. VAT)

PHP3,043.14

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 11 unit(s) shipping from March 02, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 - 9PHP2,717.09
10 - 49PHP2,632.41
50 +PHP2,552.86

*price indicative

RS Stock No.:
825-1587
Distrelec Article No.:
301-81-176
Mfr. Part No.:
ILH-XQ01-S410-SC211-WIR200.
Manufacturer:
Intelligent LED Solutions
Find similar products by selecting one or more attributes.
Select all

Brand

Intelligent LED Solutions

UV Type

UV C

Number of LEDs

1

Product Type

UV LED

Peak Wavelength

420nm

Radiant Flux

1400mW

Viewing Angle

135 °

Lens Shape

Dome

Number of Pins

4

LED Material

Metal Alloy Substrate

Mount Type

Surface Mount

Diameter

21.6 mm

Width

2 mm

Height

4.55mm

Length

21mm

Standards/Approvals

EN60598-1, IEC 61547, EN 55015, IEC62471, ENEC: 61374-2-13, IEC 61000-3-2, IEC/EN 62384, CE: EC 61374-2-13

Series

N5050 1 Powerstar

Automotive Standard

No

COO (Country of Origin):
GB

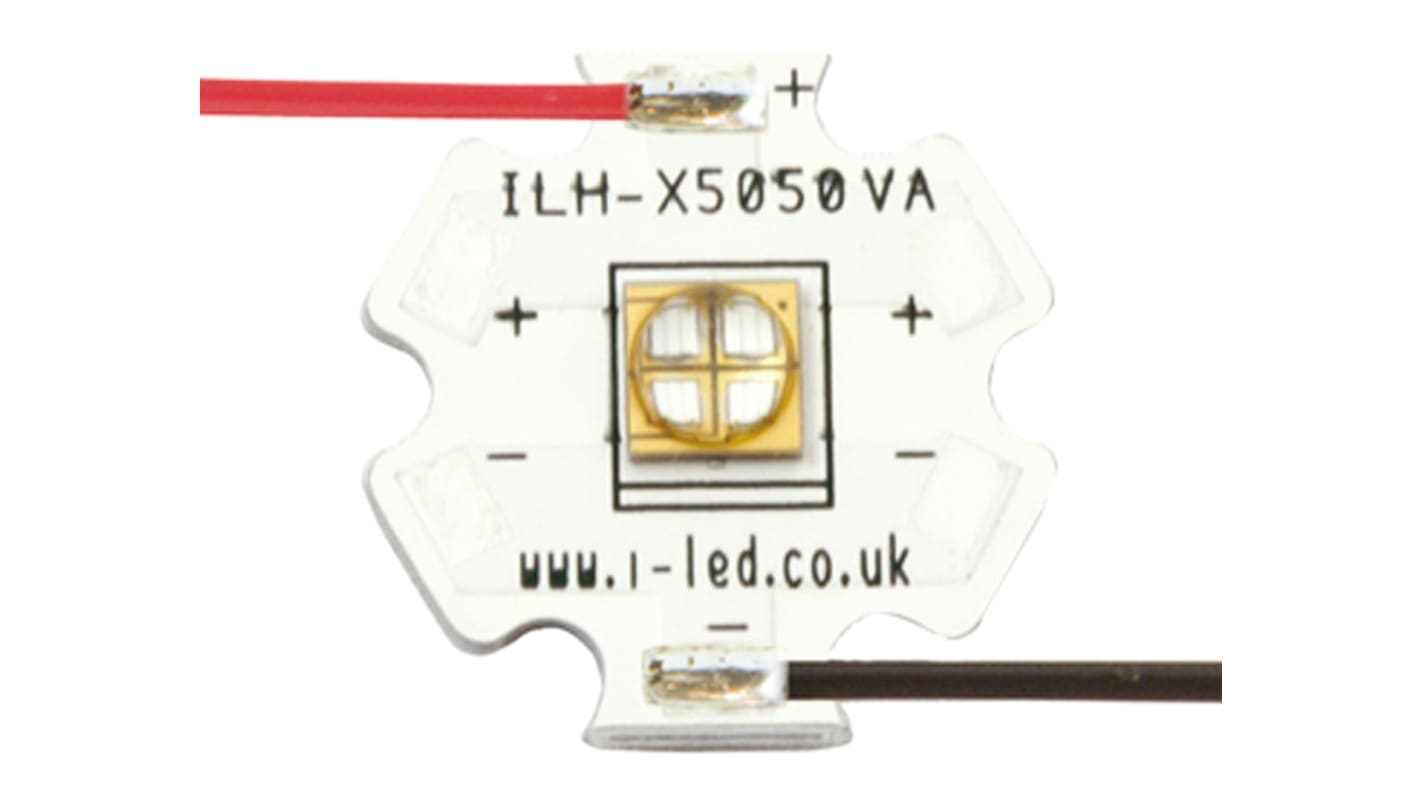

Intelligent LED Solutions UV PowerStar, ILH-Xx01-Sxxx-SC211-WIR200 Series


The ILH-Xx01-Sxxx-SC211-WIR200 series, from Intelligent LED Solutions (ILS), are a family of compact and powerful UV LED arrays. The arrays consist of a TSLC LED mounted on to an ILS UV PowerStar board.

This family of UV LED arrays comes in a variety of TSLC LED options, all of which are compact, high quality and reliable. TSLC UV LEDs also offer a high radiometric power density and design flexibility.

Built on an aluminium substrate, the UV PowerStar arrays offer optimal thermal management. They have been designed primarily for industrial applications, for example; polymer curing, ink curing, counterfeit detection, aquarium lighting, medical and DNA sequencing and inspection equipment.

Features of the UV PowerStar family:

Variety of TSLC chip options

Mounting holes using M3 screws

200 mm connecting wires

PowerStars can be linked together to produce longer chains

TSLC LEDs and viewing angle:

C3535 - 125°

N3535 - 125°

N5050 - 65° or 135°

S5050 - 110°

T7070 - 65°

U9090 - 140°

TSLC UV LED Arrays


Warning

UV LEDs emit ultraviolet light which can be hazardous to the human eye. Do not look at operating UV LEDs without necessary skin and eye protection.
