VCC VAOL Series 1-LEDs UV LED 405 nm 15 °, 2-Pin Through Hole package
- RS Stock No.:
- 137-1420
- Mfr. Part No.:
- VAOL-5EUV0T4
- Manufacturer:
- VCC

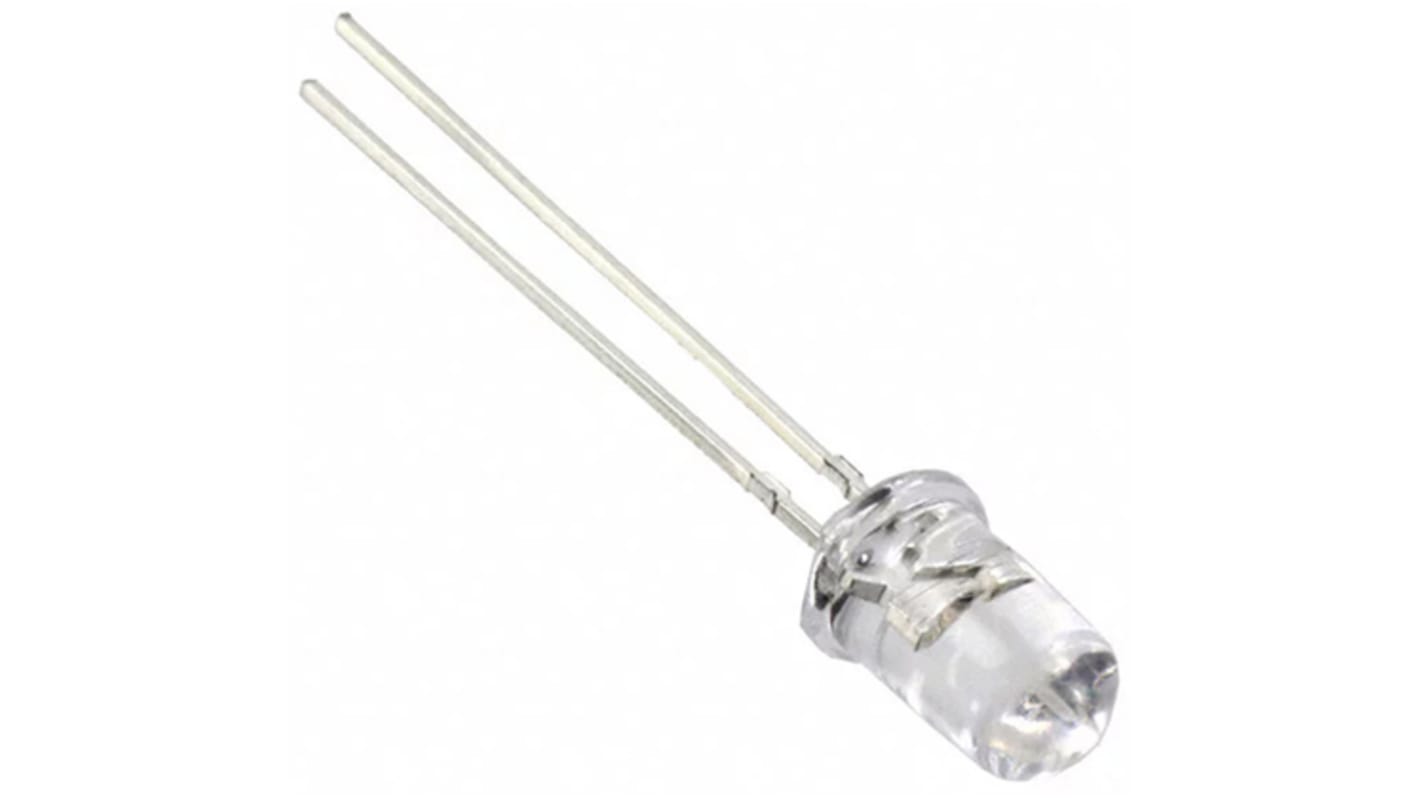

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 10 units)*
PHP702.02
(exc. VAT)
PHP786.26
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Last RS stock
- 20 left, ready to ship from another location
- Final 630 unit(s) shipping from May 05, 2026
Units | Per Unit | Per Pack* |
|---|---|---|
| 10 - 40 | PHP70.202 | PHP702.02 |
| 50 - 90 | PHP68.096 | PHP680.96 |
| 100 - 240 | PHP66.055 | PHP660.55 |
| 250 - 490 | PHP64.074 | PHP640.74 |
| 500 + | PHP62.153 | PHP621.53 |
*price indicative
- RS Stock No.:
- 137-1420
- Mfr. Part No.:
- VAOL-5EUV0T4
- Manufacturer:
- VCC
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | VCC | |
| Product Type | UV LED | |
| Number of LEDs | 1 | |
| UV Type | Ultraviolet | |
| Peak Wavelength | 405nm | |
| Luminous Intensity | 200mcd | |
| Package Type | 5 mm | |
| Viewing Angle | 15 ° | |
| Number of Pins | 2 | |
| LED Material | InGaN | |
| Mount Type | Through Hole | |
| Diameter | 5.9mm | |
| Height | 8.6mm | |
| Length | 34mm | |
| Width | 5.9mm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Series | VAOL | |
| Select all | ||
|---|---|---|
Brand VCC | ||
Product Type UV LED | ||
Number of LEDs 1 | ||
UV Type Ultraviolet | ||
Peak Wavelength 405nm | ||
Luminous Intensity 200mcd | ||
Package Type 5 mm | ||
Viewing Angle 15 ° | ||
Number of Pins 2 | ||
LED Material InGaN | ||
Mount Type Through Hole | ||
Diameter 5.9mm | ||
Height 8.6mm | ||
Length 34mm | ||
Width 5.9mm | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
Series VAOL | ||
- COO (Country of Origin):
- TW
VCC Ultraviolet LED lamps, T1-3/4 5mm
A range of UV (Ultraviolet) T1-3/4 (5mm) LED lamps from VCC. The LEDs utilise InGaN material technology and feature water-clear transparent lenses. Typical application areas include disinfection and sterilisation, adhesive curing, leak detection and security authentication. A choice of Peak UV Wavelength and radiation angle is available:
• VAOL-5EUV0T4 405nm 15°
• VAOL-5EUV8T4 385nm 15°
• VAOL-5GUV0T4 405nm 30
• VAOL-5GUV8T4 385nm 30°
Ultraviolet (UV) LEDs, VCC
Warning
UV LEDs emit ultraviolet light which can be hazardous to the human eye. Do not look at operating UV LEDs without necessary eye protection.
