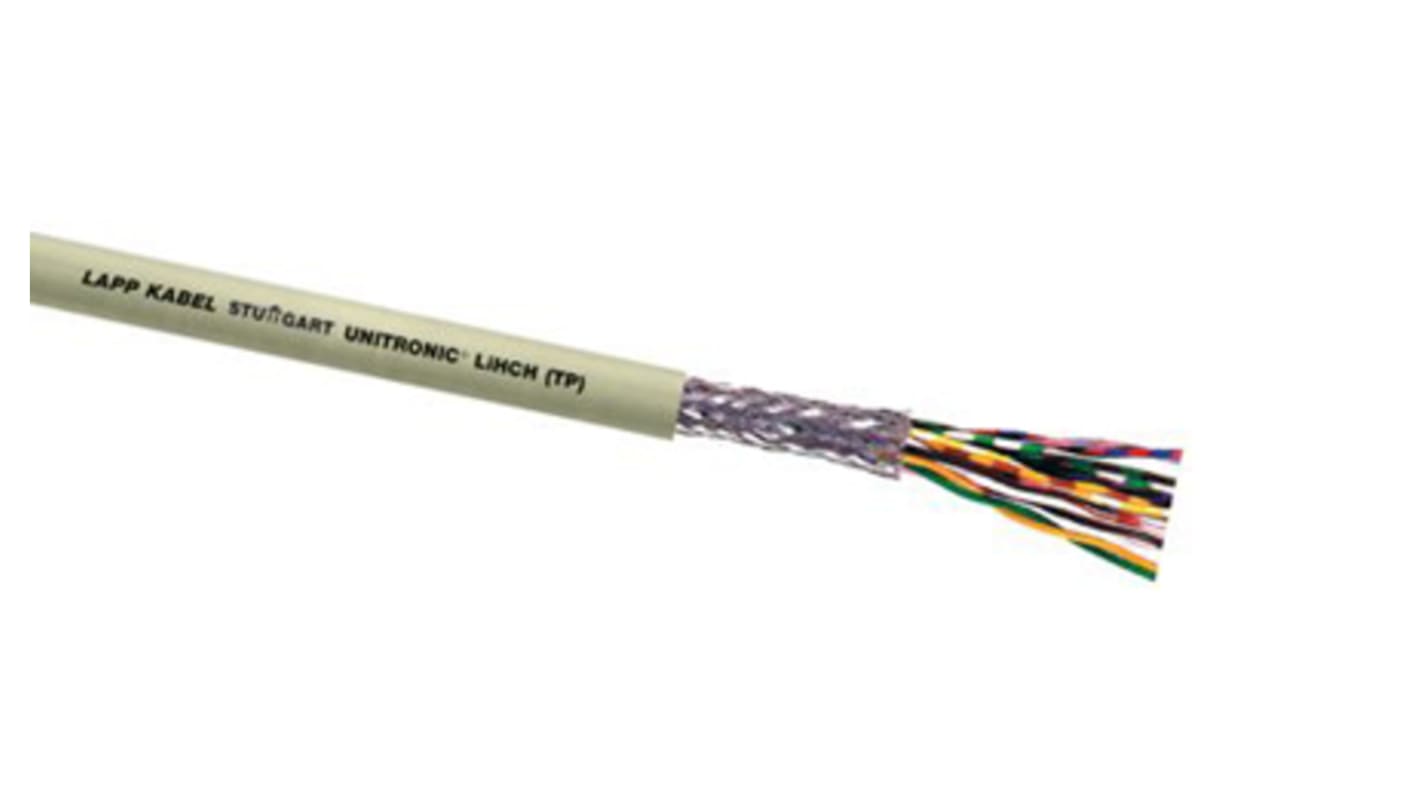

Lapp Unitronic LiHCH Series Data Cable 2 Pairs 0.5 mm² 50 m Pebble Grey Sheath Low Smoke Zero Halogen
- RS Stock No.:
- 807-9209
- Distrelec Article No.:
- 304-36-407
- Mfr. Part No.:
- 0038602
- Manufacturer:
- Lapp
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 50 metres)*
PHP17,505.00
(exc. VAT)
PHP19,605.60
(inc. VAT)
FREE delivery for orders over ₱5,000.00
Temporarily out of stock
- 8 unit(s) shipping from November 20, 2026
- Plus 8 unit(s) shipping from December 11, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 4 | PHP17,505.00 | PHP350.10 |
| 5 + | PHP16,979.85 | PHP339.597 |
*price indicative
- RS Stock No.:
- 807-9209
- Distrelec Article No.:
- 304-36-407
- Mfr. Part No.:
- 0038602
- Manufacturer:
- Lapp
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Product Type | Data Cable | |
| Number of Pairs | 2 | |
| Cross Sectional Area | 0.5 mm² | |
| Cable Length | 50m | |
| Jacket Colour | Pebble Grey | |
| Outside Diameter | 8.1mm | |
| Jacket Material | Low Smoke Zero Halogen | |
| Conductor Type | Stranded | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | EU-Directive 2014/35/EU (Low Voltage Directive) and to EU-Directive 2011/65/EU (RoHS, Restriction of the use of certain hazardous substances) | |
| Screened/Unscreened | Screened | |
| Voltage | 250V | |
| Series | Unitronic LiHCH | |
| Conductor Material | Bare Copper | |
| Fire Behaviour | Flame Retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2 | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Product Type Data Cable | ||
Number of Pairs 2 | ||
Cross Sectional Area 0.5 mm² | ||
Cable Length 50m | ||
Jacket Colour Pebble Grey | ||
Outside Diameter 8.1mm | ||
Jacket Material Low Smoke Zero Halogen | ||
Conductor Type Stranded | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals EU-Directive 2014/35/EU (Low Voltage Directive) and to EU-Directive 2011/65/EU (RoHS, Restriction of the use of certain hazardous substances) | ||
Screened/Unscreened Screened | ||
Voltage 250V | ||
Series Unitronic LiHCH | ||
Conductor Material Bare Copper | ||
Fire Behaviour Flame Retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2 | ||
- COO (Country of Origin):
- DE
Lapp UNITRONIC Series Data Cable, 50 m Length, 250 V Voltage Rating - 0038602
This data cable by Lapp is a high-quality twisted pair cable. It is designed to provide reliable data transmission with its flame retardant properties and shielded construction.
Features & Benefits
• Twisted pair design for reduced crosstalk interference
• Screened construction for added protection
• Flame retardant properties for enhanced safety
• CPR certified for quality assurance
• 20 AWG American Wire Gauge for reliable performance
• Grey sheath colour for easy identification
Applications
• Suitable for data processing, measurement, and control engineering
• Ideal for use in computer systems, office equipment, and industrial plants
• Can be used for areas with a high density of people needing fire protection
Can this data cable be used in public buildings?
Yes, this Lapp data cable is suitable for use in public buildings due to its flame retardant and halogen-free properties.
Is this cable suitable for use in industrial plants?
Yes, this UNITRONIC cable is designed for use in industrial plants where reliable data transmission is needed.
Will this cable provide reliable data transmission in computer systems?
Yes, this data cable is reliable for use in computer systems to ensure efficient data transmission.
