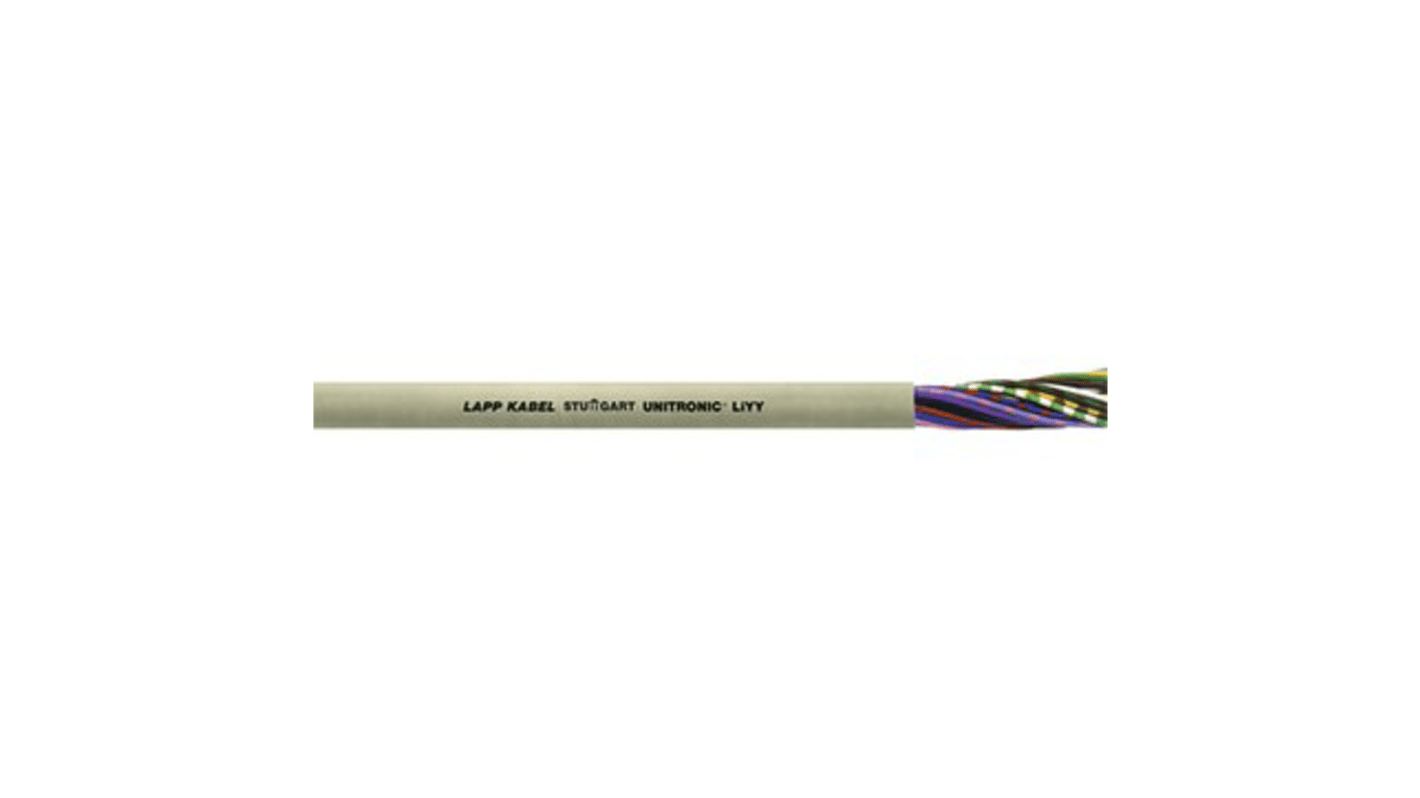

Lapp UNITRONIC LiYY Series Data Cable, 14 Pairs, 0.34 mm², 100 m, Grey Sheath Polyvinyl Chloride

RS Stock No.:: 491-8826
Distrelec Article No.:: 304-33-432
Mfr. Part No.:: 0028414
Manufacturer:: Lapp

Lapp UNITRONIC LiYY Series Data Cable, 14 Pairs, 0.34 mm², 100 m, Grey Sheath Polyvinyl Chloride

Bulk discount available

Subtotal (1 reel of 100 metres)*

PHP25,218.31

(exc. VAT)

PHP28,244.51

(inc. VAT)

FREE delivery for orders over ₱3,000.00

Temporarily out of stock

2 unit(s) shipping from April 24, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 - 10	PHP25,218.31	PHP252.183
11 +	PHP24,461.75	PHP244.618

*price indicative

RS Stock No.:: 491-8826
Distrelec Article No.:: 304-33-432
Mfr. Part No.:: 0028414
Manufacturer:: Lapp

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Product Type	Data Cable
	Number of Pairs	14
	Cross Sectional Area	0.34mm²
	Cable Length	100m
	Jacket Colour	Grey
	Outside Diameter	8.2mm
	Conductor Type	Extra Fine
	Minimum Operating Temperature	-40°C
	Jacket Material	Polyvinyl Chloride
	Maximum Operating Temperature	80°C
	Standards/Approvals	EAC
	Series	UNITRONIC LiYY
	Core Strands	7
	Conductor Material	Bare Copper
	Fire Behaviour	Flame Retardant
	Voltage	500V

	Select all
	Brand Lapp
	Product Type Data Cable
	Number of Pairs 14
	Cross Sectional Area 0.34mm²
	Cable Length 100m
	Jacket Colour Grey
	Outside Diameter 8.2mm
	Conductor Type Extra Fine
	Minimum Operating Temperature -40°C
	Jacket Material Polyvinyl Chloride
	Maximum Operating Temperature 80°C
	Standards/Approvals EAC
	Series UNITRONIC LiYY
	Core Strands 7
	Conductor Material Bare Copper
	Fire Behaviour Flame Retardant
	Voltage 500V

COO (Country of Origin):: DE

LAPP Control Cable, 57Ω/km Conductor Resistance, 6A Current Rating - UNITRONIC Series - 0028414

Looking for a LiYY cable to make connections in your system? Choose this 14-core control cable from LAPP to reliably transmit data between equipment and computers. Its copper wires are highly conductive for fast data transmission. The PVC sheath is flame-retardant to minimise the risk of fires catching and spreading. This external jacket also protects your wire from chemicals and oils, making the cable suitable for use in contaminated conditions.

Features & Benefits

• Wide operating temperature range between -40°C and +80°C for use in extreme environments

• 100m length can be cut to the exact size each job needs

• Compact 8.2mm diameter cable for space-saving installation

Applications

• Office equipment

• Computer network systems

• Industrial automation

• Manufacturing industry

Why should I choose an unscreened cable?

Unscreened cables are more flexible than shielded wires, so are easier to install in complex setups.
