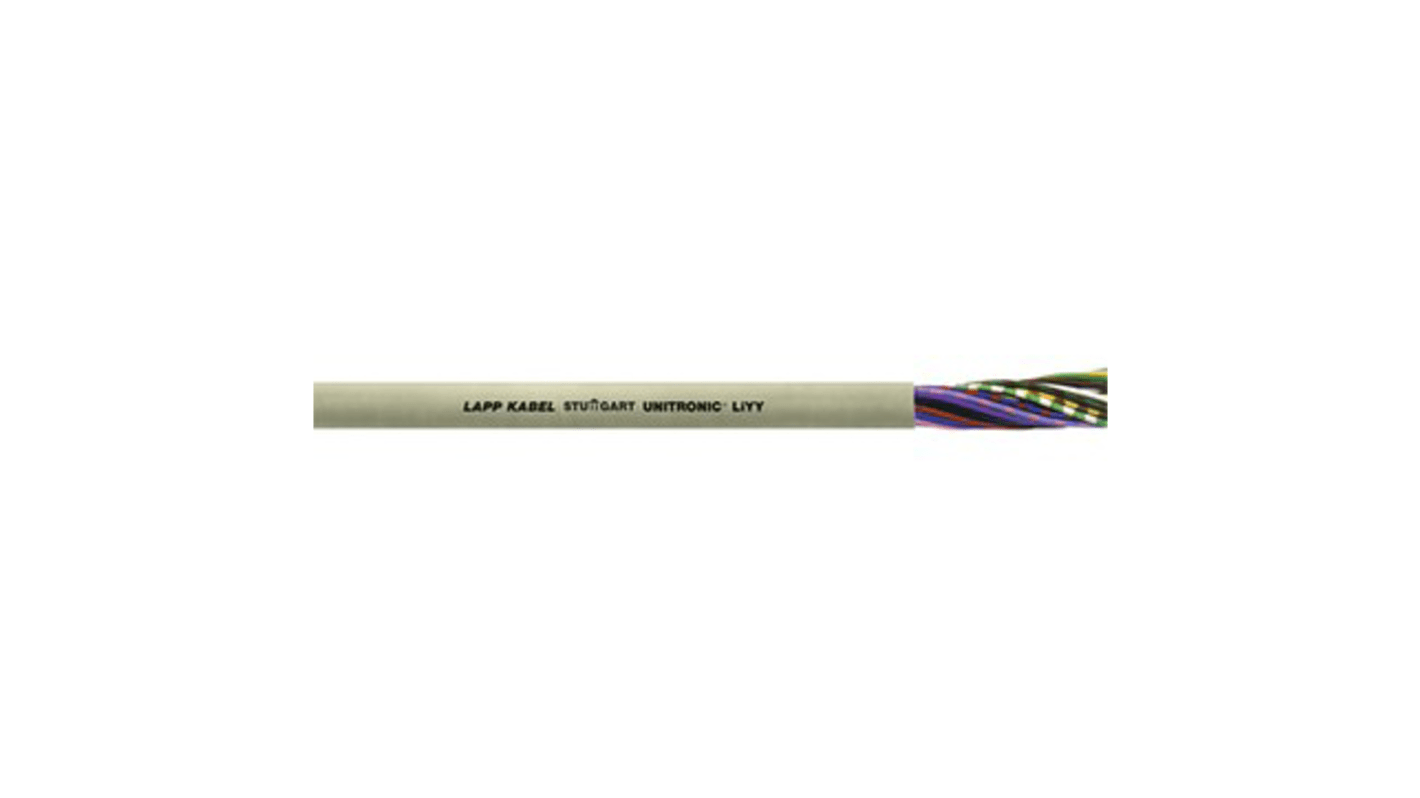

Lapp UNITRONIC LiYY Series Data Cable, 4 Pairs, 0.14 mm², 100 m, Grey Sheath Polyvinyl Chloride
- RS Stock No.:
- 491-8567
- Distrelec Article No.:
- 304-33-436
- Mfr. Part No.:
- 0028204
- Manufacturer:
- Lapp
Bulk discount available
Subtotal (1 reel of 100 metres)*
PHP3,482.13
(exc. VAT)
PHP3,899.99
(inc. VAT)
Stock information currently inaccessible - Please check back later
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 25 | PHP3,482.13 | PHP34.821 |
| 26 - 129 | PHP3,377.66 | PHP33.777 |
| 130 + | PHP3,276.33 | PHP32.763 |
*price indicative
- RS Stock No.:
- 491-8567
- Distrelec Article No.:
- 304-33-436
- Mfr. Part No.:
- 0028204
- Manufacturer:
- Lapp
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Number of Pairs | 4 | |
| Product Type | Data Cable | |
| Cross Sectional Area | 0.14 mm² | |
| Cable Length | 100m | |
| Jacket Colour | Grey | |
| Outside Diameter | 3.6 mm | |
| Minimum Operating Temperature | -40°C | |
| Jacket Material | Polyvinyl Chloride | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | CE | |
| Voltage | 350 V | |
| Fire Behaviour | Flame Retardant | |
| Series | UNITRONIC LiYY | |
| Core Strands | 18/0.1 mm | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Number of Pairs 4 | ||
Product Type Data Cable | ||
Cross Sectional Area 0.14 mm² | ||
Cable Length 100m | ||
Jacket Colour Grey | ||
Outside Diameter 3.6 mm | ||
Minimum Operating Temperature -40°C | ||
Jacket Material Polyvinyl Chloride | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals CE | ||
Voltage 350 V | ||
Fire Behaviour Flame Retardant | ||
Series UNITRONIC LiYY | ||
Core Strands 18/0.1 mm | ||
- COO (Country of Origin):
- DE
LAPP Data Cable, 350V Voltage Rating, 138Ω/km Conductor Resistance - UNITRONIC LiYY Series - 0028204
Need a compact but robust solution for linking your network? Choose this data cable from LAPP. Its tough PVC sheath withstands oils and moisture to deliver long-lasting performance you can bank on. The twisted copper cores reduce crosstalk and are corrosion-resistant, for signal transmission that's clear as a bell. With a 3A current rating, this cable is well suited for use in many kinds of domestic, commercial and industrial applications, so it's a versatile piece of kit.
Features & Benefits
• Wide operating temperature range between -40°C and +80°C for use in demanding conditions
• Bending radius of 14.4mm in fixed installation, so it's a flexible choice
• Slender 26AWG size, meaning it fits in tight spaces
Applications
• Computer networks
• Measuring equipment
• Control systems
How long is this data cable?
This data cable is supplied in a length of 100m, so you'll have enough for a long run or multiple cut-and-fix jobs.
