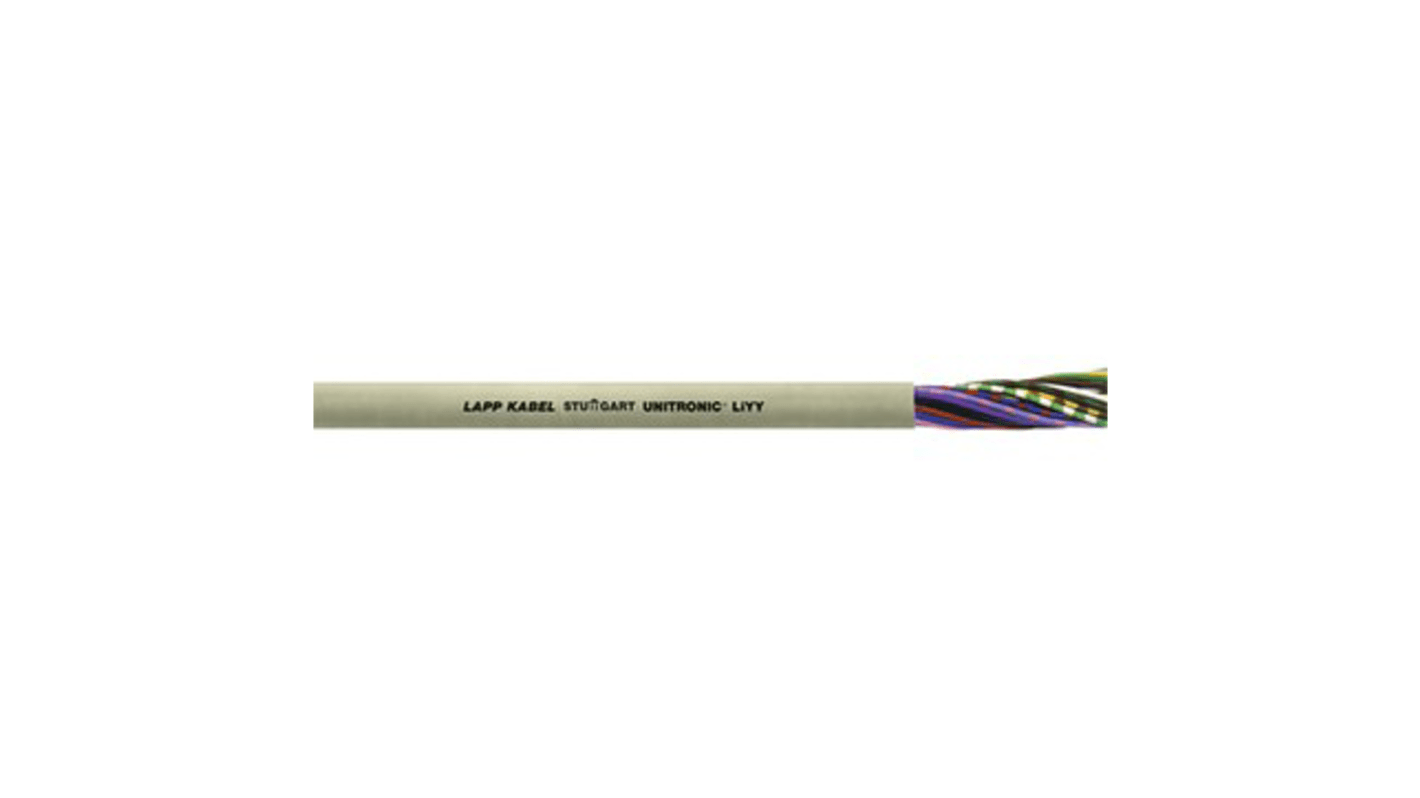

Lapp UNITRONIC LiYY Series Data Cable 2 Pairs 2 Cores 0.25 mm² 100 m Grey Sheath PVC
- RS Stock No.:
- 445-1430
- Distrelec Article No.:
- 304-10-285
- Mfr. Part No.:
- 0028302
- Manufacturer:
- Lapp
Add 5 more to save PHP603.70
View bulk pricing optionsSubtotal (1 reel of 100 metres)*
PHP4,024.55
(exc. VAT)
PHP4,507.50
(inc. VAT)
FREE delivery for orders over ₱5,000.00
- 64 unit(s) ready to ship from another location
Reel(s) | Per Reel | Per Metre* | Saving |
|---|---|---|---|
| 1 - 4 | PHP4,024.55 | PHP40.246 | - |
| 5 + | PHP3,903.81 | PHP39.038 | PHP603.70 |
*price indicative
- RS Stock No.:
- 445-1430
- Distrelec Article No.:
- 304-10-285
- Mfr. Part No.:
- 0028302
- Manufacturer:
- Lapp
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Product Type | Data Cable | |
| Number of Pairs | 2 | |
| Cross Sectional Area | 0.25mm² | |
| Number of Cores | 2 | |
| Cable Length | 100m | |
| Jacket Colour | Grey | |
| Outside Diameter | 3.8mm | |
| Minimum Operating Temperature | -40°C | |
| Conductor Type | Stranded | |
| Jacket Material | PVC | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | EN 13501-6 and EN 50575 | |
| Screened/Unscreened | Unscreened | |
| Series | UNITRONIC LiYY | |
| Core Strands | 14 x 140 μm | |
| Size of Strands | 140μm | |
| Conductor Material | Bare Copper | |
| Number of Strands | 14 | |
| Fire Behaviour | Flame Retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2 | |
| Voltage | 350V | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Product Type Data Cable | ||
Number of Pairs 2 | ||
Cross Sectional Area 0.25mm² | ||
Number of Cores 2 | ||
Cable Length 100m | ||
Jacket Colour Grey | ||
Outside Diameter 3.8mm | ||
Minimum Operating Temperature -40°C | ||
Conductor Type Stranded | ||
Jacket Material PVC | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals EN 13501-6 and EN 50575 | ||
Screened/Unscreened Unscreened | ||
Series UNITRONIC LiYY | ||
Core Strands 14 x 140 μm | ||
Size of Strands 140μm | ||
Conductor Material Bare Copper | ||
Number of Strands 14 | ||
Fire Behaviour Flame Retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2 | ||
Voltage 350V | ||
- COO (Country of Origin):
- DE
LAPP Control Cable, 500V Voltage Rating, 3.8mm OD - UNITRONIC LiYY Series - 0028302
Features & Benefits
Applications
Can I use this control cable in applications with high EMI levels?
