Belden 9843 Series Data Cable, 3 Pairs, 0.2 mm², 152 m, Silver Sheath Polyvinyl Chloride
- RS Stock No.:
- 331-8916
- Distrelec Article No.:
- 304-10-132
- Mfr. Part No.:
- 9843 060500
- Manufacturer:
- Belden
Subtotal (1 reel of 152 metres)*
PHP132,098.35
(exc. VAT)
PHP147,950.15
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- 1 unit(s) shipping from April 17, 2026
- Plus 1 unit(s) shipping from May 01, 2026
- Plus 1 unit(s) shipping from June 19, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | PHP132,098.35 | PHP869.068 |
*price indicative
- RS Stock No.:
- 331-8916
- Distrelec Article No.:
- 304-10-132
- Mfr. Part No.:
- 9843 060500
- Manufacturer:
- Belden
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Number of Pairs | 3 | |
| Product Type | Data Cable | |
| Cross Sectional Area | 0.2 mm² | |
| Cable Length | 152m | |
| Jacket Colour | Silver | |
| Outside Diameter | 9.14 mm | |
| Jacket Material | Polyvinyl Chloride | |
| Minimum Operating Temperature | -30°C | |
| Conductor Type | Stranded | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | Euroclass Eca | |
| Voltage | 30 V | |
| Series | 9843 | |
| Fire Behaviour | Flame Retardant | |
| Conductor Material | Tin Copper Wire | |
| Core Strands | 7 | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Number of Pairs 3 | ||
Product Type Data Cable | ||
Cross Sectional Area 0.2 mm² | ||
Cable Length 152m | ||
Jacket Colour Silver | ||
Outside Diameter 9.14 mm | ||
Jacket Material Polyvinyl Chloride | ||
Minimum Operating Temperature -30°C | ||
Conductor Type Stranded | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals Euroclass Eca | ||
Voltage 30 V | ||
Series 9843 | ||
Fire Behaviour Flame Retardant | ||
Conductor Material Tin Copper Wire | ||
Core Strands 7 | ||
- COO (Country of Origin):
- US
Belden Data Cable, RS-485 Cable Type, Beldfoil Z-Fold Shield - 9843 060500

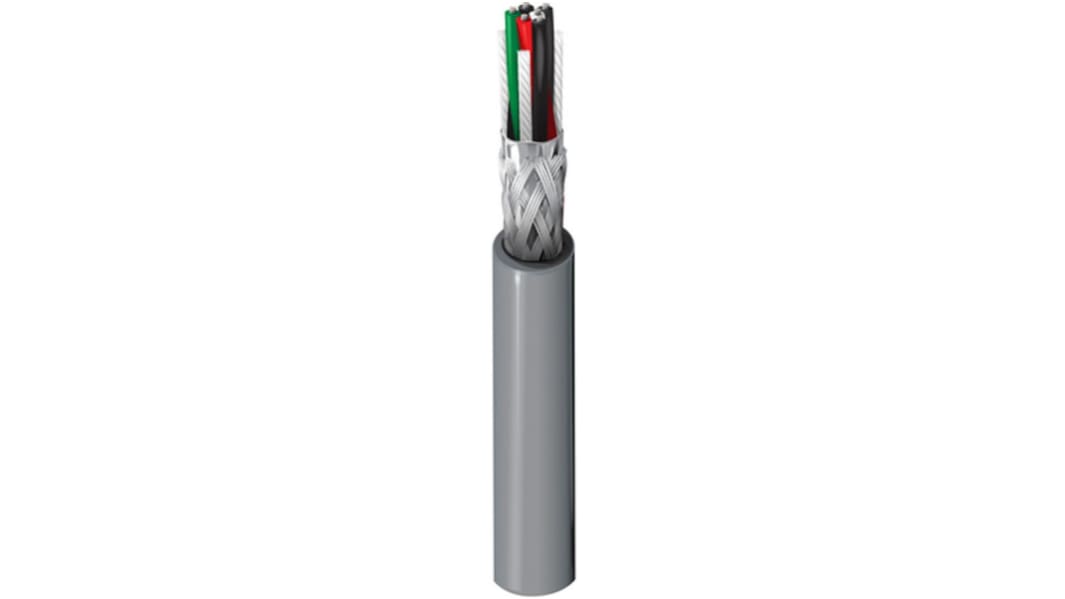

Build RS-485 and DMX512 networks you can rely on with this 6-core data cable from Belden. Tinned copper conductors offer reliably high conductivity to relay your signals without a hiccup. They're protected from EMI by a Beldfoil Z-fold shield – plus a layer of tinned copper braid – to make sure interference from outside doesn't degrade your signal. The conductors are laid in twisted pairs to minimise crosstalk, which keeps your transmission clean.
Features & Benefits
• Suitable for industrial environments, thanks to an operating temperature range of -30°C to +80°C
• Flame-retardant PVC sheath improves workplace safety
• 152m length gives you a ready supply and can be cut to the exact length you need
Applications
• Commercial aircraft
• Lighting controls
• Office networks
What's RS-485?
RS-485 is a standard for receivers and drivers used for industrial control systems and telecommunications. It indicates the kit, which is frequently used in a commercial aircraft cabin's vehicle bus, supports long-distance data transmission.
Standards
NEC CM; UL2919
