Alpha Wire Alpha Essentials Communication & Control Series Data Cable, 7 Pairs, 0.23 mm², 30 m, Grey Sheath Polyvinyl

View this category

Subtotal (1 reel of 30 metres)*

PHP12,735.54

(exc. VAT)

PHP14,263.80

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 60 unit(s) ready to ship from another location
  • Plus 240 unit(s) shipping from May 19, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Reel*
30 +PHP424.518PHP12,735.54

*price indicative

RS Stock No.:
187-2015
Distrelec Article No.:
301-20-631
Mfr. Part No.:
5477C SL005
Manufacturer:
Alpha Wire
Find similar products by selecting one or more attributes.
Select all

Brand

Alpha Wire

Number of Pairs

7

Product Type

Data Cable

Cross Sectional Area

0.23 mm²

Cable Length

30m

Jacket Colour

Grey

Outside Diameter

7.85 mm

Jacket Material

Polyvinyl Chloride

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

80°C

Standards/Approvals

CSA, CE, UL

Conductor Material

Tin Copper Wire

Fire Behaviour

FT4

Core Strands

7

Voltage

300 V

Series

Alpha Essentials Communication & Control

Belden Alpha Essentials Communication & Control Series Control Cable, 30m Length, 0.23mm² Cross Sectional Area - 5477C SL005

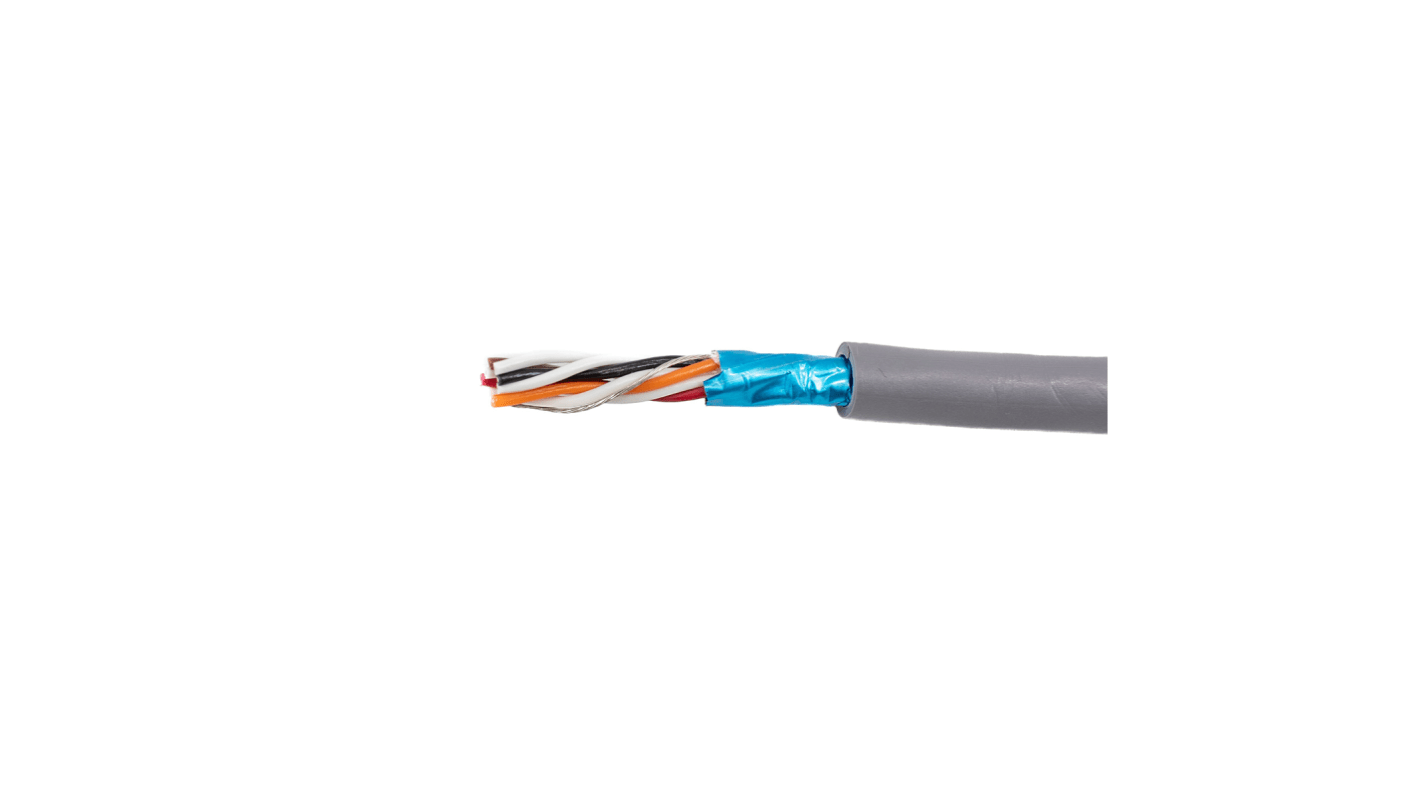

This control cable is manufactured by Belden and is a versatile solution for automation and communication systems. Featuring 30m in length, it consists of 7 twisted pairs making up a total of 14 cores. The cable is designed with an outer diameter of 7.85mm, housed in grey PVC sheath, and is compliant with temperature ranges from -20°C to +80°C.

Features & Benefits


• Shielded design reduces electromagnetic interference for optimal performance

• Twisted pairs enhance signal integrity and reduce crosstalk

• 24 AWG wire gauge ensures suitability for various voltage applications

• Aluminium Mylar shield adds durability and improves reliability

• PVC construction offers flexibility and resistance to environmental factors

• Rated for 300V, allowing safe operation in demanding conditions

Applications


• Used in industrial automation for control

• Suitable for signal transmission in communication systems

• Employed in electronic equipment requiring shielded connections

• Ideal for machine tools and process control

What is the significance of the shield in this cable?


The shield provides enhanced protection against external electrical interference, ensuring that signals remain clear and reliable during transmission, which is crucial in sensitive communication and automation tasks.

How does the twisted pair design impact performance?


Twisted pairs minimise signal degradation and crosstalk by improving the balance of electrical properties, which results in a stronger signal, especially over longer distances in control applications.

What are the implications of the temperature rating?


The temperature range of -20°C to +80°C indicates that the cable can function effectively in diverse environments, making it suitable for both indoor and outdoor applications without compromising performance.

How resistant is the PVC sheath to environmental factors?


The PVC sheath is designed to resist abrasion and moisture, protecting the internal conductors from damage due to exposure to various environmental conditions, thus extending the cable's lifespan.

What maintenance is required to ensure optimal function?


Regular visual inspections for wear and tear, along with ensuring connections are secure, will help maintain optimal functioning of the cable throughout its service life.
