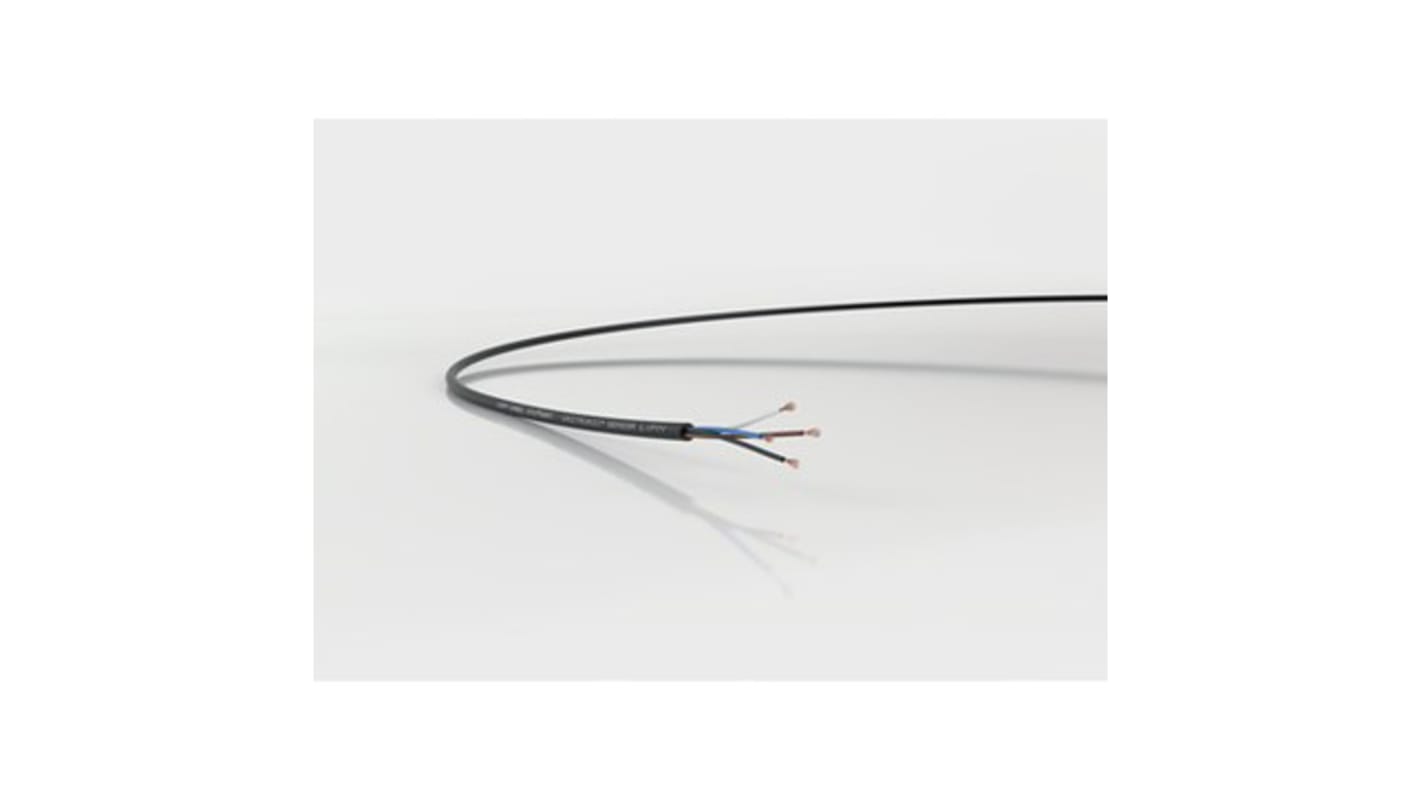

Lapp Unitronic Series Data Cable, 3 Pairs, 0.34 mm², 100 m, Black Sheath Thermoplastic Elastomer
- RS Stock No.:
- 161-1950
- Mfr. Part No.:
- 7038895
- Manufacturer:
- Lapp
Subtotal (1 reel of 100 metres)*
PHP13,649.08
(exc. VAT)
PHP15,286.97
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 2 unit(s) shipping from March 16, 2026
- Plus 2 unit(s) shipping from May 19, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | PHP13,649.08 | PHP136.491 |
*price indicative
- RS Stock No.:
- 161-1950
- Mfr. Part No.:
- 7038895
- Manufacturer:
- Lapp
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Number of Pairs | 3 | |
| Product Type | Data Cable | |
| Cross Sectional Area | 0.34 mm² | |
| Cable Length | 100m | |
| Jacket Colour | Black | |
| Outside Diameter | 5 mm | |
| Minimum Operating Temperature | -50°C | |
| Conductor Type | Stranded | |
| Jacket Material | Thermoplastic Elastomer | |
| Maximum Operating Temperature | 90°C | |
| Standards/Approvals | EN 50267-2-1, EN 50267-2-2, EN 50305, EN 50396, EN 50525-1, EN 60947-5-2, EU Directive 2011/65/EU, IEC 60754-1, IEC 60754-2, IEC 60811-404, IEC 61034-2, VDE 0812 | |
| Fire Behaviour | Halogen Free | |
| Voltage | 300 V | |
| Series | Unitronic | |
| Conductor Material | Bare Copper | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Number of Pairs 3 | ||
Product Type Data Cable | ||
Cross Sectional Area 0.34 mm² | ||
Cable Length 100m | ||
Jacket Colour Black | ||
Outside Diameter 5 mm | ||
Minimum Operating Temperature -50°C | ||
Conductor Type Stranded | ||
Jacket Material Thermoplastic Elastomer | ||
Maximum Operating Temperature 90°C | ||
Standards/Approvals EN 50267-2-1, EN 50267-2-2, EN 50305, EN 50396, EN 50525-1, EN 60947-5-2, EU Directive 2011/65/EU, IEC 60754-1, IEC 60754-2, IEC 60811-404, IEC 61034-2, VDE 0812 | ||
Fire Behaviour Halogen Free | ||
Voltage 300 V | ||
Series Unitronic | ||
Conductor Material Bare Copper | ||
- COO (Country of Origin):
- DE
Cables for sensor/actuator cabling in rough environments. For use in drag chains, halogenfree, to connect to M8, M12 connectors
Good chemical resistance to ester-based hydraulic fluids
Ozone, UV and weather-resistant according to EN 50396 and HD 605 S2
Suitable for drag chains
Torsion-resistant
Halogen-free
