Alpha Wire Alpha Essentials Communication & Control Series Data Cable, 9 Pairs, 0.23 mm², 30 m, Grey Sheath Polyvinyl

RS Stock No.:: 111-9004
Mfr. Part No.:: 5479C SL005
Manufacturer:: Alpha Wire

Alpha Wire Alpha Essentials Communication & Control Series Data Cable, 9 Pairs, 0.23 mm², 30 m, Grey Sheath Polyvinyl

Bulk discount available

Subtotal (1 reel of 30 metres)*

PHP12,014.92

(exc. VAT)

PHP13,456.71

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

Plus 5 unit(s) shipping from March 16, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 - 14	PHP12,014.92	PHP400.497
15 - 74	PHP11,654.48	PHP388.483
75 +	PHP11,188.29	PHP372.943

*price indicative

RS Stock No.:: 111-9004
Mfr. Part No.:: 5479C SL005
Manufacturer:: Alpha Wire

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Alpha Wire
	Number of Pairs	9
	Product Type	Data Cable
	Cross Sectional Area	0.23 mm²
	Cable Length	30m
	Jacket Colour	Grey
	Outside Diameter	8.71 mm
	Minimum Operating Temperature	-20°C
	Jacket Material	Polyvinyl Chloride
	Maximum Operating Temperature	80°C
	Standards/Approvals	CE
	Voltage	300 V
	Conductor Material	Tin Copper Wire
	Fire Behaviour	Flame Retardant
	Core Strands	7
	Series	Alpha Essentials Communication & Control

	Select all
	Brand Alpha Wire
	Number of Pairs 9
	Product Type Data Cable
	Cross Sectional Area 0.23 mm²
	Cable Length 30m
	Jacket Colour Grey
	Outside Diameter 8.71 mm
	Minimum Operating Temperature -20°C
	Jacket Material Polyvinyl Chloride
	Maximum Operating Temperature 80°C
	Standards/Approvals CE
	Voltage 300 V
	Conductor Material Tin Copper Wire
	Fire Behaviour Flame Retardant
	Core Strands 7
	Series Alpha Essentials Communication & Control

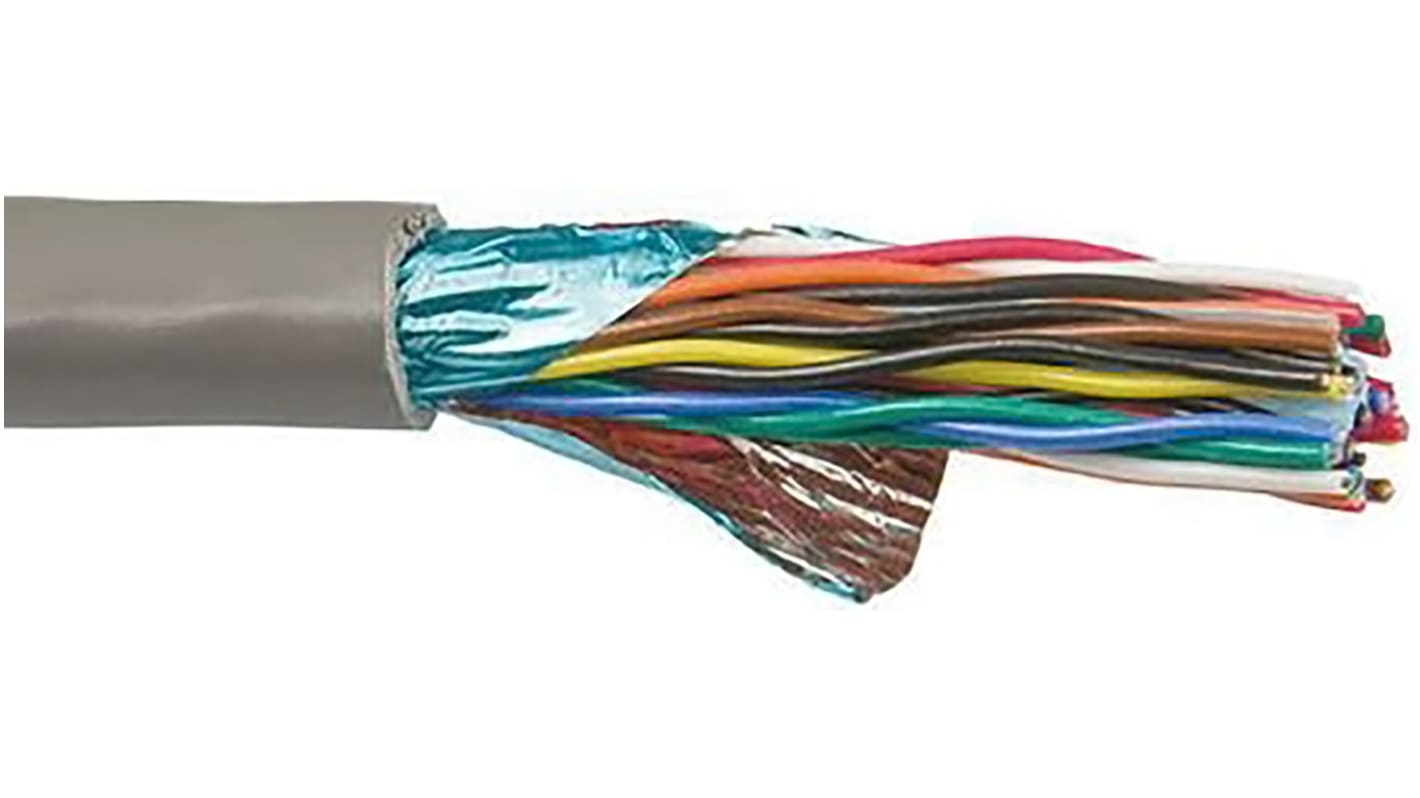

Foil Shielded Multi-pair

The Alpha Wire foil shielded multi-pair cable contains 24 AWG stranded tinned copper wire conductors; the foil shield is made of aluminium/mylar tape facing inwards. The low capacitance of this cable improves transmission and signal integrity.

Features and benefits

Foil shield offers good high-frequency shielding;Stranded tinned copper conductors improve flexibility;PVC insulation provides good resistance to abrasion, chemicals, and water;Flame Retardant to rating FT4

Applications

Audio systems: speakers, microphones, intercoms;Broadcast and studio;Data transmission: RS-232, 422, 485;CAD/CAM;Computer peripherals;Business machines;Security systems: alarms, cameras, sensors;Control systems;Instrumentation systems;Point-of-sale systems;Banking systems

Approvals

UL Recognised, CSA
