Alpha Wire Alpha Essentials Communication & Control Series Data Cable, 3 Pairs, 0.23 mm², 30 m, Grey Sheath Polyvinyl

RS Stock No.:: 111-8966
Distrelec Article No.:: 301-34-051
Mfr. Part No.:: 5473C SL005
Manufacturer:: Alpha Wire

Alpha Wire Alpha Essentials Communication & Control Series Data Cable, 3 Pairs, 0.23 mm², 30 m, Grey Sheath Polyvinyl

Bulk discount available

Subtotal (1 reel of 30 metres)*

PHP6,282.74

(exc. VAT)

PHP7,036.67

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

108 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 - 14	PHP6,282.74	PHP209.425
15 - 74	PHP5,853.40	PHP195.113
75 +	PHP4,817.35	PHP160.578

*price indicative

RS Stock No.:: 111-8966
Distrelec Article No.:: 301-34-051
Mfr. Part No.:: 5473C SL005
Manufacturer:: Alpha Wire

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Alpha Wire
	Product Type	Data Cable
	Number of Pairs	3
	Cross Sectional Area	0.23 mm²
	Cable Length	30m
	Jacket Colour	Grey
	Outside Diameter	5.69 mm
	Minimum Operating Temperature	-20°C
	Jacket Material	Polyvinyl Chloride
	Maximum Operating Temperature	80°C
	Standards/Approvals	CE
	Voltage	300 V
	Core Strands	7
	Series	Alpha Essentials Communication & Control
	Fire Behaviour	Flame Retardant
	Conductor Material	Tin Copper Wire

	Select all
	Brand Alpha Wire
	Product Type Data Cable
	Number of Pairs 3
	Cross Sectional Area 0.23 mm²
	Cable Length 30m
	Jacket Colour Grey
	Outside Diameter 5.69 mm
	Minimum Operating Temperature -20°C
	Jacket Material Polyvinyl Chloride
	Maximum Operating Temperature 80°C
	Standards/Approvals CE
	Voltage 300 V
	Core Strands 7
	Series Alpha Essentials Communication & Control
	Fire Behaviour Flame Retardant
	Conductor Material Tin Copper Wire

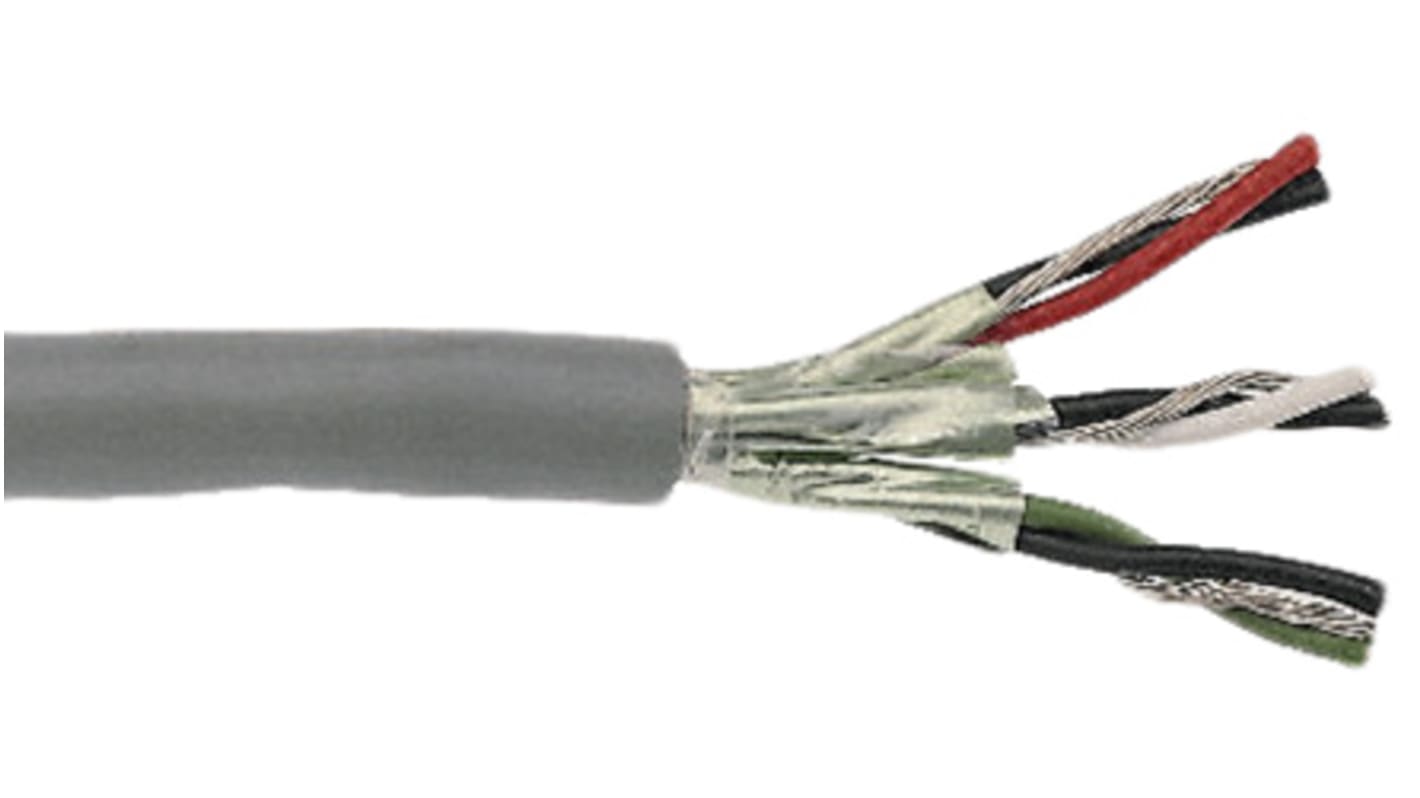

Belden Alpha Wire Grey 3-Pair Screened Data Cable, 24AWG - 5473C

For effective data transmission in your communication equipment, choose this twisted pair data cable from Belden's Alpha Wire range. The cable is an F/UTP type, which means its conductors are twisted in pairs and covered in aluminium/Mylar foil to prevent crosstalk and electromagnetic interference (EMI). Its copper conductors ensure a stable and reliable connection and PVC insulation protects you against electric shocks. The cable's outer sheath is also made of PVC, which has reliable resistance to impact, so it's suitable for use in demanding industrial environments.

Features & Benefits

• Low characteristic impedance of 76Ω for speedy signal transmission

• Low mutual capacitance of 25pF/ft (picofarads per foot) for high integrity signals

• Compact outer diameter of 5.69mm for space efficiency in small enclosures

Applications

• Control and instrumentation systems

• CAD (computer-aided design) setups

• POS (point-of-sale) devices

What's the temperature threshold of this data cable?

This cable has an operating temperature range of -20°C to +80°C, so it's suitable for use in a wide range of demanding environments.

Approvals

UL2464 Type CM
