Belden 70001E Series Multi-Core Industrial Cable, 1 Pairs, 120 m, Black Sheath Polyvinyl Chloride
- RS Stock No.:
- 382-866
- Mfr. Part No.:
- 70001E.0120
- Manufacturer:
- Belden
Subtotal (1 reel of 120 metres)*
PHP49,090.05
(exc. VAT)
PHP54,980.86
(inc. VAT)
Stock information currently inaccessible - Please check back later
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | PHP49,090.05 | PHP409.084 |
*price indicative
- RS Stock No.:
- 382-866
- Mfr. Part No.:
- 70001E.0120
- Manufacturer:
- Belden
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Number of Pairs | 1 | |
| Product Type | Multi-Core Industrial Cable | |
| Cable Length | 120m | |
| Jacket Colour | Black | |
| Outside Diameter | 8mm | |
| Conductor Type | Stranded | |
| Jacket Material | Polyvinyl Chloride | |
| Minimum Operating Temperature | -45°C | |
| Maximum Operating Temperature | 75°C | |
| Standards/Approvals | Euroclass Eca | |
| Voltage | 300V | |
| Series | 70001E | |
| Conductor Material | Tin Copper Wire | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
| Core Strands | 7 | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Number of Pairs 1 | ||
Product Type Multi-Core Industrial Cable | ||
Cable Length 120m | ||
Jacket Colour Black | ||
Outside Diameter 8mm | ||
Conductor Type Stranded | ||
Jacket Material Polyvinyl Chloride | ||
Minimum Operating Temperature -45°C | ||
Maximum Operating Temperature 75°C | ||
Standards/Approvals Euroclass Eca | ||
Voltage 300V | ||
Series 70001E | ||
Conductor Material Tin Copper Wire | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
Core Strands 7 | ||
- COO (Country of Origin):
- NL

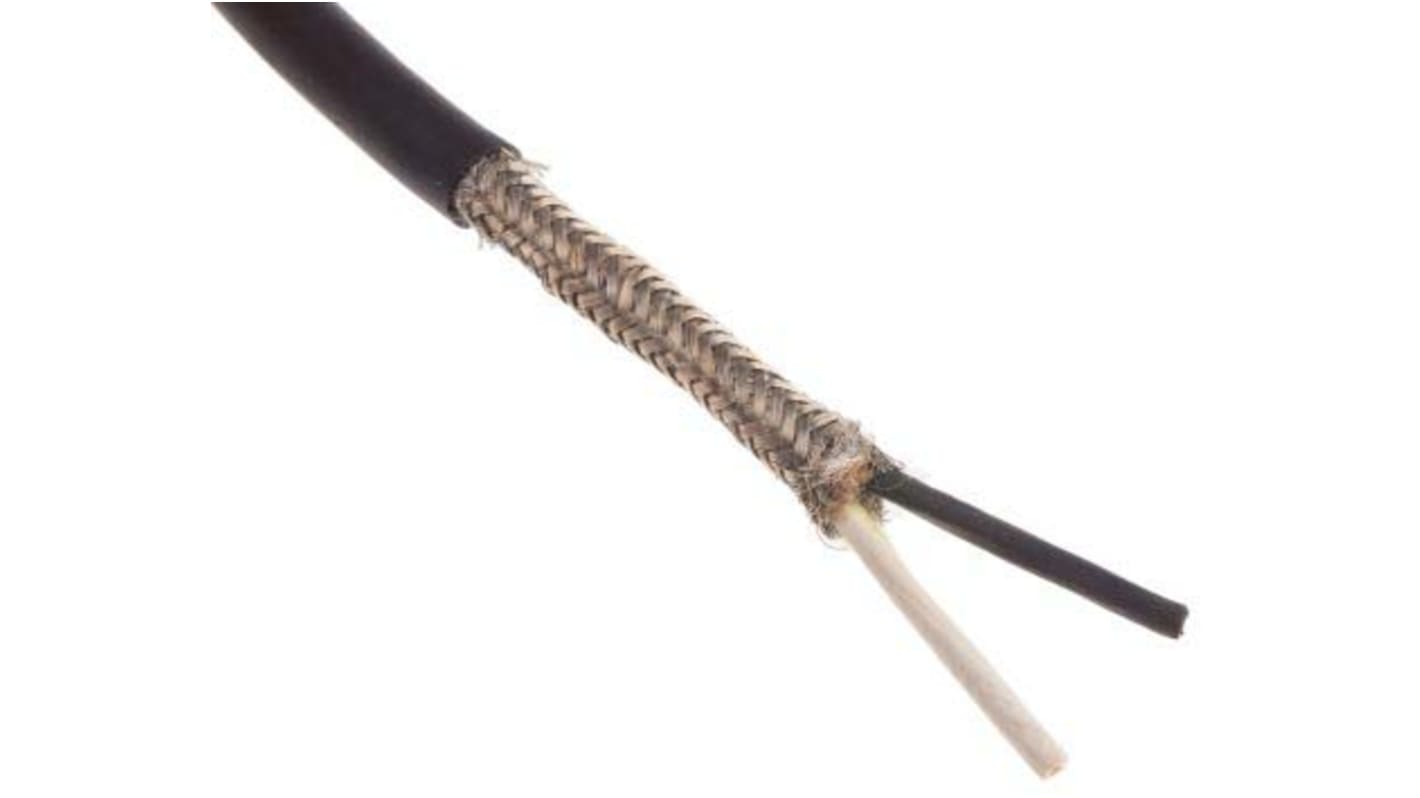

Belden Multicore Industrial Cable, 18AWG, 2 Cores - 70001E.0120
To keep your industrial applications hard at work, wire them up with this multicore industrial cable from Belden. To ensure efficient signal transmission via PROFIBUS between peripheral devices and your control system, it has a twisted pair of highly conductive tinned copper conductors. These are wrapped in a black PVC jacket, so they're protected against oil and abrasion in contaminated settings.
Features & Benefits
• Does the job reliably in a wide operating temperature range between -45°C and +75°C
• 120m length can be cut to size or used for long runs or
• Aluminium and polyester foil shield to protect against EMI
• 300V rating to support demanding systems
Applications
• Industrial automation
• Process control
• Research labs
What's the cable's minimum bend radius?
This cable has an optimal bend radius of 120mm. Maintaining the cable at or below 120mm ensures peak signal performance, conductor integrity and insulation preservation.
