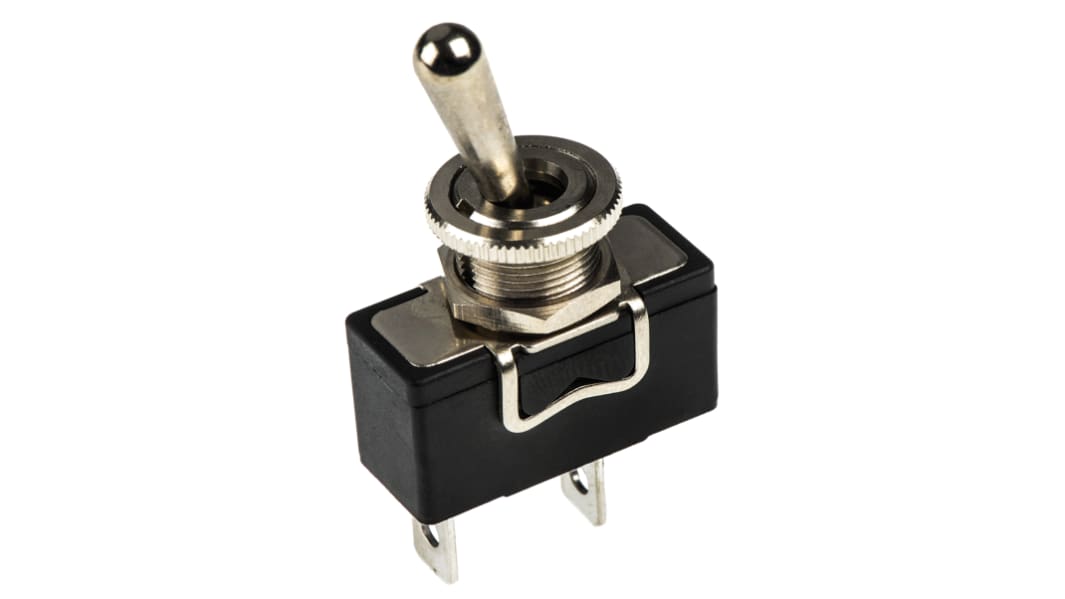

APEM Toggle Switch, Panel Mount, On-Off, SPST, Tab Terminal, 24 V dc, 250 V ac
- RS Stock No.:
- 518-5291
- Mfr. Part No.:
- X12CP
- Manufacturer:
- APEM
Bulk discount available
Subtotal (1 unit)*
PHP633.20
(exc. VAT)
PHP709.18
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 1 unit(s) ready to ship
- Plus 190 unit(s) ready to ship from another location
- Plus 3,600 unit(s) shipping from June 08, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 24 | PHP633.20 |
| 25 - 49 | PHP620.53 |
| 50 - 99 | PHP608.11 |
| 100 - 249 | PHP595.96 |
| 250 + | PHP584.04 |
*price indicative
- RS Stock No.:
- 518-5291
- Mfr. Part No.:
- X12CP
- Manufacturer:
- APEM
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Contact Configuration | SPST | |
| Product Type | Toggle Switch | |
| Switch Operation | On-Off | |
| Switch Contact Current | 15A | |
| Mount Type | Panel | |
| Terminal Type | Tab | |
| Illuminated | No | |
| Minimum Operating Temperature | -20°C | |
| Contact AC Voltage | 250V ac | |
| Actuator Length | 17.5mm | |
| Contact DC Voltage | 24V dc | |
| Maximum Operating Temperature | 55°C | |
| Switch Configuration | On-Off | |
| Series | X and Y New | |
| Length | 17.5mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Contact Configuration SPST | ||
Product Type Toggle Switch | ||
Switch Operation On-Off | ||
Switch Contact Current 15A | ||
Mount Type Panel | ||
Terminal Type Tab | ||
Illuminated No | ||
Minimum Operating Temperature -20°C | ||
Contact AC Voltage 250V ac | ||
Actuator Length 17.5mm | ||
Contact DC Voltage 24V dc | ||
Maximum Operating Temperature 55°C | ||
Switch Configuration On-Off | ||
Series X and Y New | ||
Length 17.5mm | ||
Standards/Approvals RoHS | ||
Toggle Switches, Std, 15A
Moulded body with slow-break silver plated contacts and pear-shaped toggle
The blade terminals are suitable for 250 (1/4 in) receptacles or soldering
Mounting bush 0.468in dia., length 11mm, single locating slot
