Infineon, Thyristor 2800 V, 2720 A 250 mA 43500 A 1.79 V
- RS Stock No.:
- 262-5884
- Mfr. Part No.:
- T2481N28TOFVTXPSA1
- Manufacturer:
- Infineon

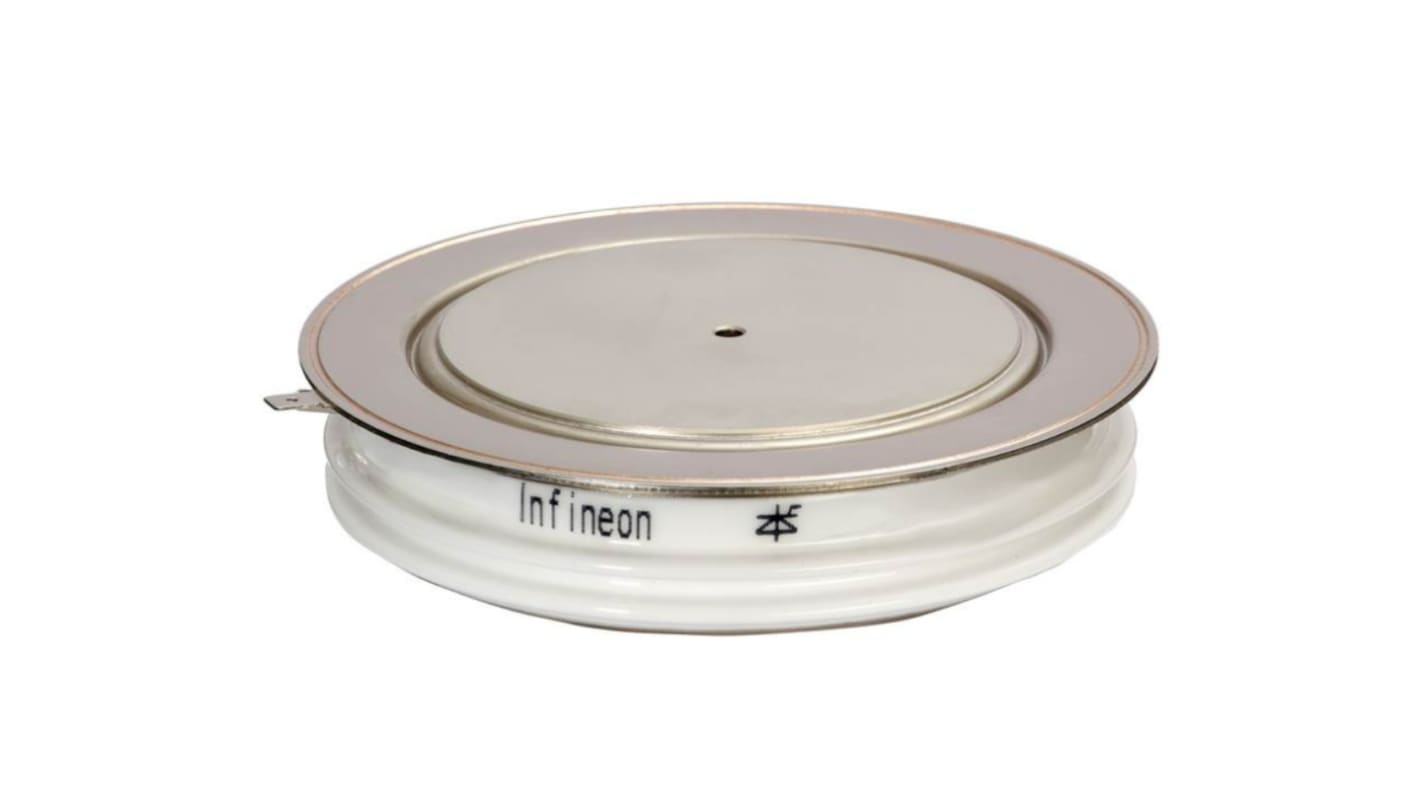

This image is representative of the product range
Subtotal (1 unit)*
PHP62,176.58
(exc. VAT)
PHP69,637.77
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP62,176.58 |
*price indicative
- RS Stock No.:
- 262-5884
- Mfr. Part No.:
- T2481N28TOFVTXPSA1
- Manufacturer:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Thyristor | |
| Rated Average On-State Current Irms | 2720A | |
| Thyristor Type | SCR | |
| Package Type | BG-T12026K-1 | |
| Repetitive Peak Reverse Voltage VDRM | 2800V | |
| Surge Current Rating | 43500A | |
| Maximum Gate Trigger Current Igt | 250mA | |
| Maximum Holding Current Ih | 300mA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Gate Trigger Voltage Vgt | 2.5V | |
| Maximum Operating Temperature | 140°C | |
| Series | T2481N28TOF | |
| Standards/Approvals | RoHS | |
| Peak On-State Voltage | 1.79V | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Thyristor | ||
Rated Average On-State Current Irms 2720A | ||
Thyristor Type SCR | ||
Package Type BG-T12026K-1 | ||
Repetitive Peak Reverse Voltage VDRM 2800V | ||
Surge Current Rating 43500A | ||
Maximum Gate Trigger Current Igt 250mA | ||
Maximum Holding Current Ih 300mA | ||
Minimum Operating Temperature -40°C | ||
Maximum Gate Trigger Voltage Vgt 2.5V | ||
Maximum Operating Temperature 140°C | ||
Series T2481N28TOF | ||
Standards/Approvals RoHS | ||
Peak On-State Voltage 1.79V | ||
Automotive Standard No | ||
The Infineon phase control thyristor has 120 mm diameter in a ceramic housing. The power disc is specially optimized for high current rectifier within the water electrolysis process.
High DC blocking stability
High surge current capability
Industrial standard package
