Infineon, Thyristor Module 1800 V 9000 A, 280 A 150 mA 1.77 V 7-Pin
- RS Stock No.:
- 217-7232
- Mfr. Part No.:
- TT280N18SOFHPSA1
- Manufacturer:
- Infineon

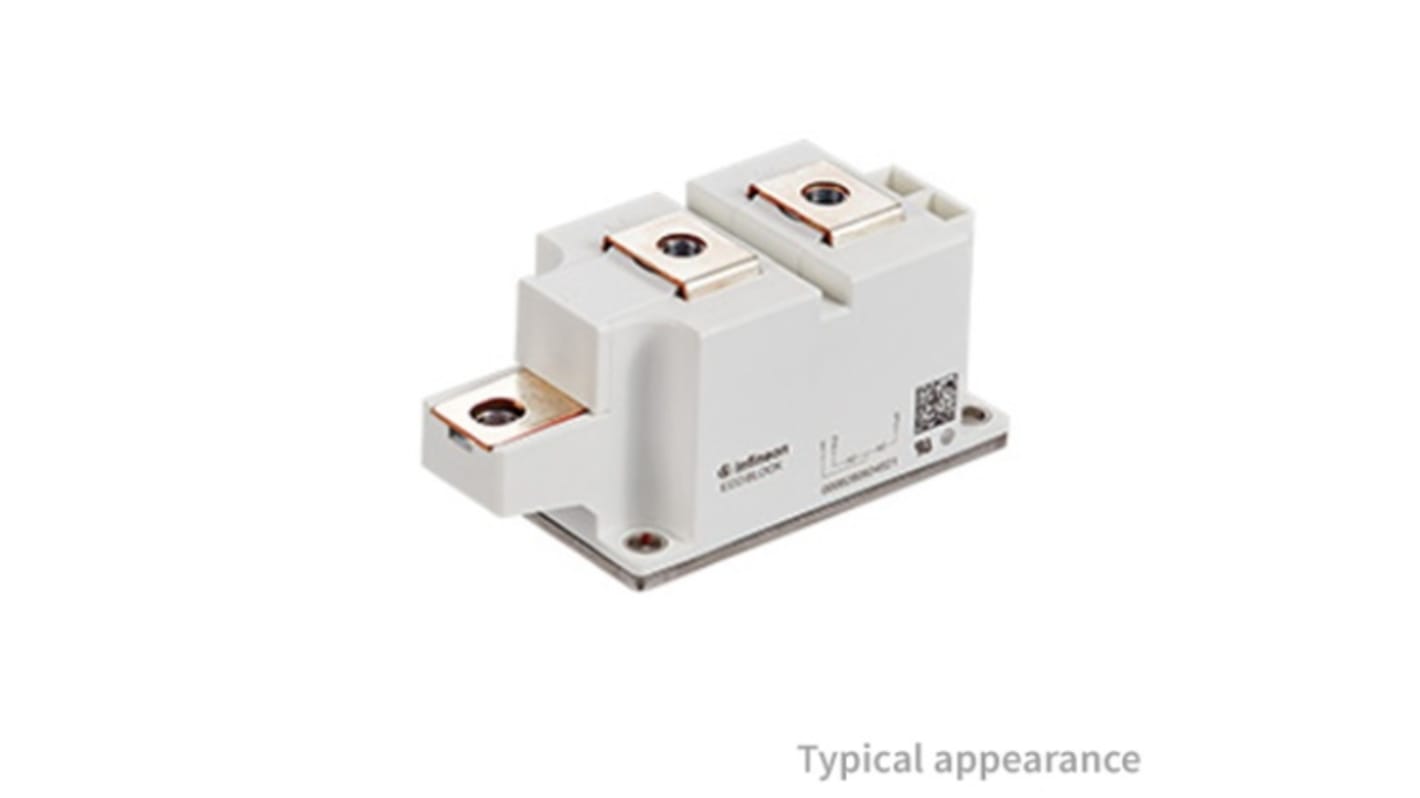

This image is representative of the product range
Bulk discount available
Subtotal (1 tray of 3 units)*
PHP21,879.84
(exc. VAT)
PHP24,505.41
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from August 10, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tray* |
|---|---|---|
| 3 - 6 | PHP7,293.28 | PHP21,879.84 |
| 9 - 12 | PHP7,001.233 | PHP21,003.70 |
| 15 + | PHP6,819.747 | PHP20,459.24 |
*price indicative
- RS Stock No.:
- 217-7232
- Mfr. Part No.:
- TT280N18SOFHPSA1
- Manufacturer:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Rated Average On-State Current Irms | 280A | |
| Product Type | Thyristor Module | |
| Repetitive Peak Reverse Voltage VDRM | 1800V | |
| Surge Current Rating | 9000A | |
| Maximum Gate Trigger Current Igt | 150mA | |
| Pin Count | 7 | |
| Maximum Holding Current Ih | 150mA | |
| Maximum Gate Trigger Voltage Vgt | 2V | |
| Maximum Operating Temperature | 130°C | |
| Standards/Approvals | No | |
| Peak On-State Voltage | 1.77V | |
| Repetitive Peak Off-State Current | 30mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Rated Average On-State Current Irms 280A | ||
Product Type Thyristor Module | ||
Repetitive Peak Reverse Voltage VDRM 1800V | ||
Surge Current Rating 9000A | ||
Maximum Gate Trigger Current Igt 150mA | ||
Pin Count 7 | ||
Maximum Holding Current Ih 150mA | ||
Maximum Gate Trigger Voltage Vgt 2V | ||
Maximum Operating Temperature 130°C | ||
Standards/Approvals No | ||
Peak On-State Voltage 1.77V | ||
Repetitive Peak Off-State Current 30mA | ||
Automotive Standard No | ||
The Infineon Thyristor/Thyristor 50 mm eco block 1800 V, 280 A module for phase control in solder bond technology. Please also find our Power Block Thyristor module for phase control with high reliable pressure contact technology.
Solder bond technology
Industrial standard package
Electrically insulated base plate
