Infineon, Thyristor Module 1600 V 5200 A, 240 A 145 mA 1.52 V 7-Pin
- RS Stock No.:
- 217-7208
- Mfr. Part No.:
- TD240N16SOFHPSA1
- Manufacturer:
- Infineon

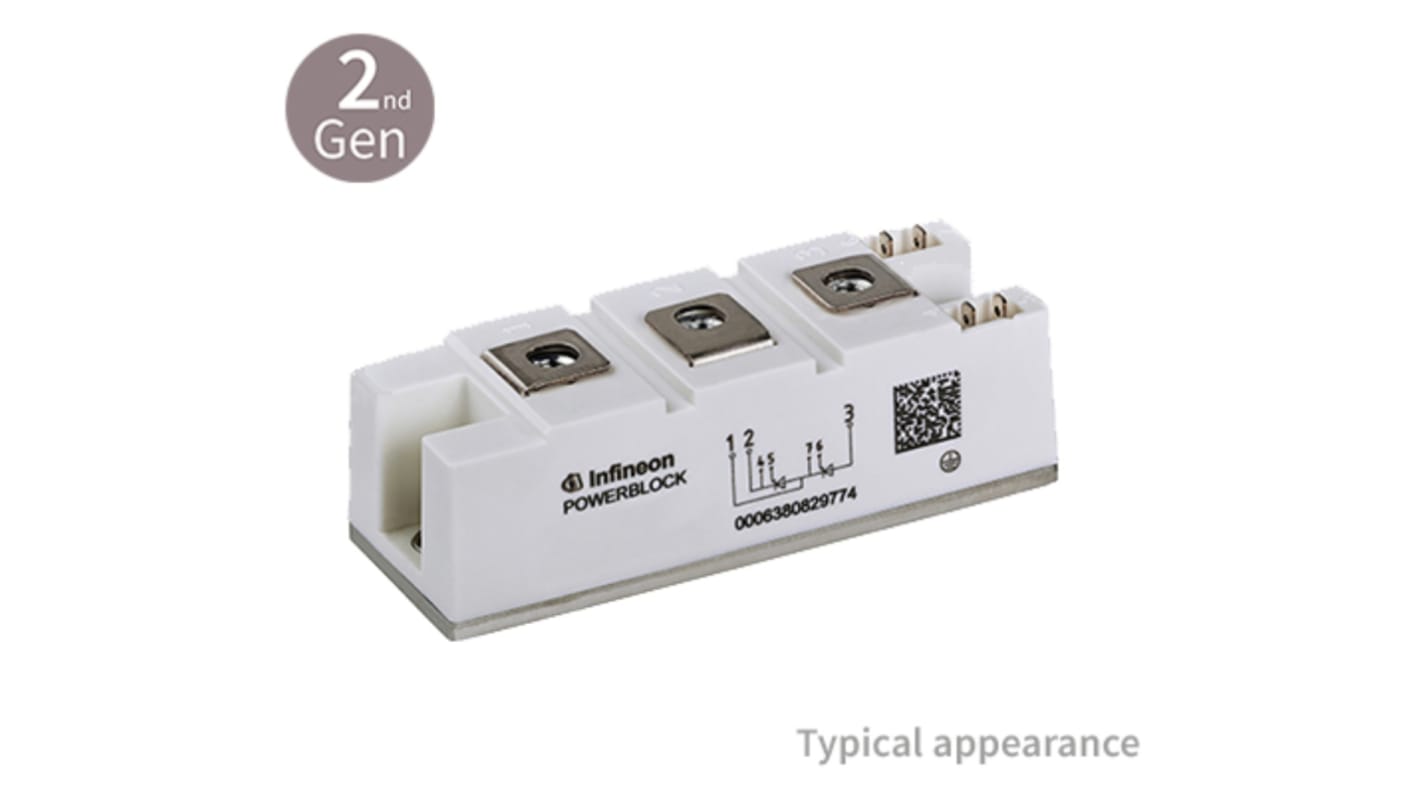

This image is representative of the product range
Bulk discount available
Subtotal (1 tray of 8 units)*
PHP28,721.68
(exc. VAT)
PHP32,168.32
(inc. VAT)
Add 8 units to get free delivery
Temporarily out of stock
- Shipping from August 07, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tray* |
|---|---|---|
| 8 - 16 | PHP3,590.21 | PHP28,721.68 |
| 24 - 32 | PHP3,446.68 | PHP27,573.44 |
| 40 + | PHP3,357.215 | PHP26,857.72 |
*price indicative
- RS Stock No.:
- 217-7208
- Mfr. Part No.:
- TD240N16SOFHPSA1
- Manufacturer:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Thyristor Module | |
| Rated Average On-State Current Irms | 240A | |
| Repetitive Peak Reverse Voltage VDRM | 1600V | |
| Surge Current Rating | 5200A | |
| Maximum Gate Trigger Current Igt | 145mA | |
| Pin Count | 7 | |
| Maximum Holding Current Ih | 200mA | |
| Maximum Gate Trigger Voltage Vgt | 2.5V | |
| Maximum Operating Temperature | 140°C | |
| Height | 34mm | |
| Standards/Approvals | EN 61140 | |
| Automotive Standard | No | |
| Repetitive Peak Off-State Current | 30mA | |
| Peak On-State Voltage | 1.52V | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Thyristor Module | ||
Rated Average On-State Current Irms 240A | ||
Repetitive Peak Reverse Voltage VDRM 1600V | ||
Surge Current Rating 5200A | ||
Maximum Gate Trigger Current Igt 145mA | ||
Pin Count 7 | ||
Maximum Holding Current Ih 200mA | ||
Maximum Gate Trigger Voltage Vgt 2.5V | ||
Maximum Operating Temperature 140°C | ||
Height 34mm | ||
Standards/Approvals EN 61140 | ||
Automotive Standard No | ||
Repetitive Peak Off-State Current 30mA | ||
Peak On-State Voltage 1.52V | ||
The Infineon Thyristor/diode 34 mm eco block 1600 V, 240 A module for phase control in solder bond technology. This is the second generation with increase current rating. If you need higher blocking voltage go to TD240N18SOF and if you need additional features or higher performance go to pressure contact technology.
Solder bond technology
Industrial standard package
Electrically insulated base plate
