Infineon STT800N16P55XPSA1, Thyristor Module 1600 V 6300 A, 800 A 200 mA 1.56 V 8-Pin
- RS Stock No.:
- 217-7203
- Mfr. Part No.:
- STT800N16P55XPSA1
- Manufacturer:
- Infineon
Bulk discount available
Subtotal (1 unit)*
PHP22,959.80
(exc. VAT)
PHP25,714.98
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from June 03, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 2 | PHP22,959.80 |
| 3 - 4 | PHP22,040.85 |
| 5 + | PHP21,468.44 |
*price indicative
- RS Stock No.:
- 217-7203
- Mfr. Part No.:
- STT800N16P55XPSA1
- Manufacturer:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Rated Average On-State Current Irms | 800A | |
| Product Type | Thyristor Module | |
| Repetitive Peak Reverse Voltage VDRM | 1600V | |
| Surge Current Rating | 6300A | |
| Maximum Gate Trigger Current Igt | 200mA | |
| Pin Count | 8 | |
| Maximum Holding Current Ih | 300mA | |
| Maximum Gate Trigger Voltage Vgt | 2V | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Peak On-State Voltage | 1.56V | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Rated Average On-State Current Irms 800A | ||
Product Type Thyristor Module | ||
Repetitive Peak Reverse Voltage VDRM 1600V | ||
Surge Current Rating 6300A | ||
Maximum Gate Trigger Current Igt 200mA | ||
Pin Count 8 | ||
Maximum Holding Current Ih 300mA | ||
Maximum Gate Trigger Voltage Vgt 2V | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Peak On-State Voltage 1.56V | ||

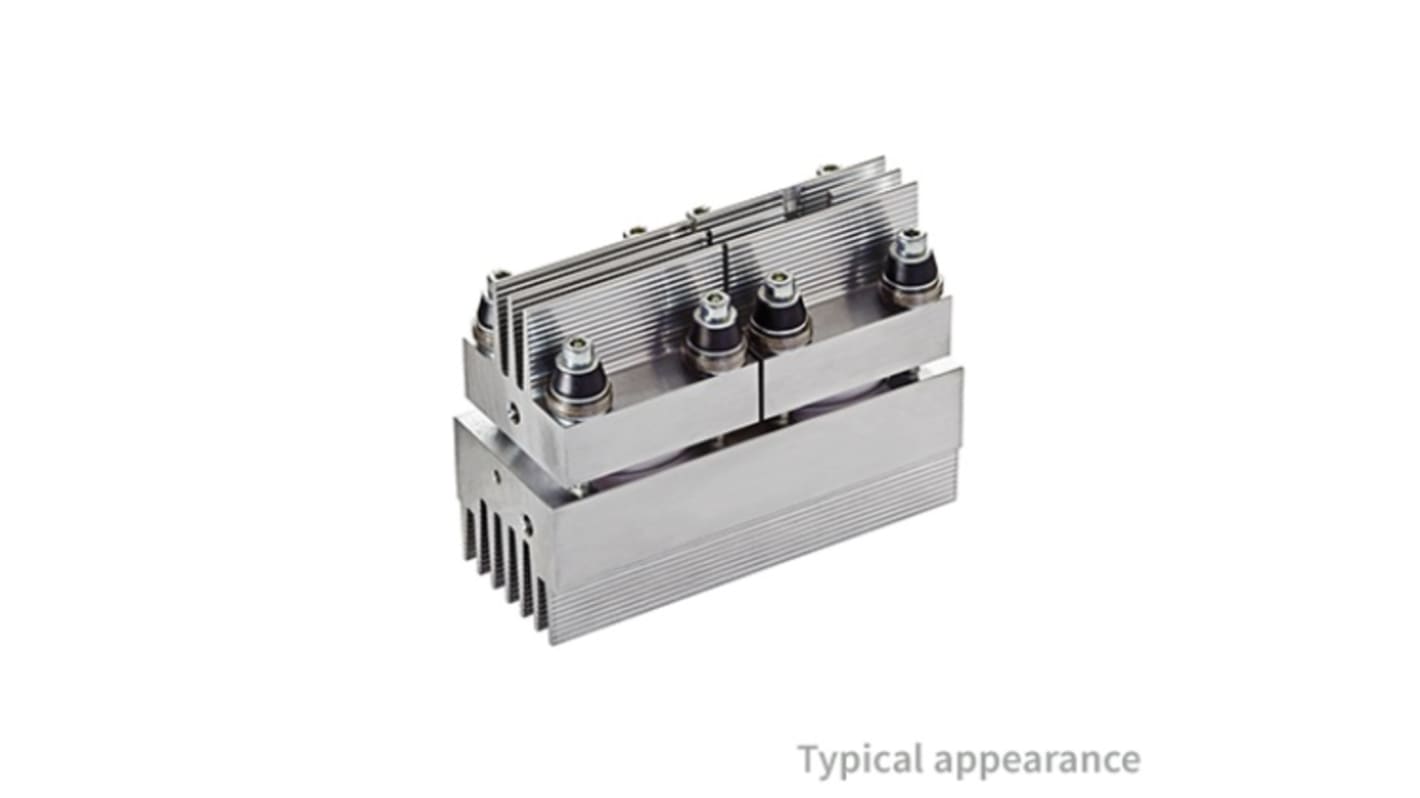

The Infineon Thyristor/Thyristor 55 mm power start with 1600 V, 800 A module for soft start applications in pressure contact technology. The main benefit of the design concept in comparison to existing soft starter solutions is one slim foot-print fitting 800 A starting current which allows contactor compatible designs.
One slim foot-print
Reduction to essential components
Integrated heatsink & no thermal grease
Thermal capacity directly coupled to silicon
Double side cooling
Less complexity – one fits all
Easy mounting
Faster time-to-market
Best Power to Price Ratio for cost sensitive applications
