Infineon, Thyristor Module 1600 V 19800 A, 635 A 250 mA 1.37 V 7-Pin
- RS Stock No.:
- 217-7170
- Mfr. Part No.:
- ETD630N16P60HPSA1
- Manufacturer:
- Infineon

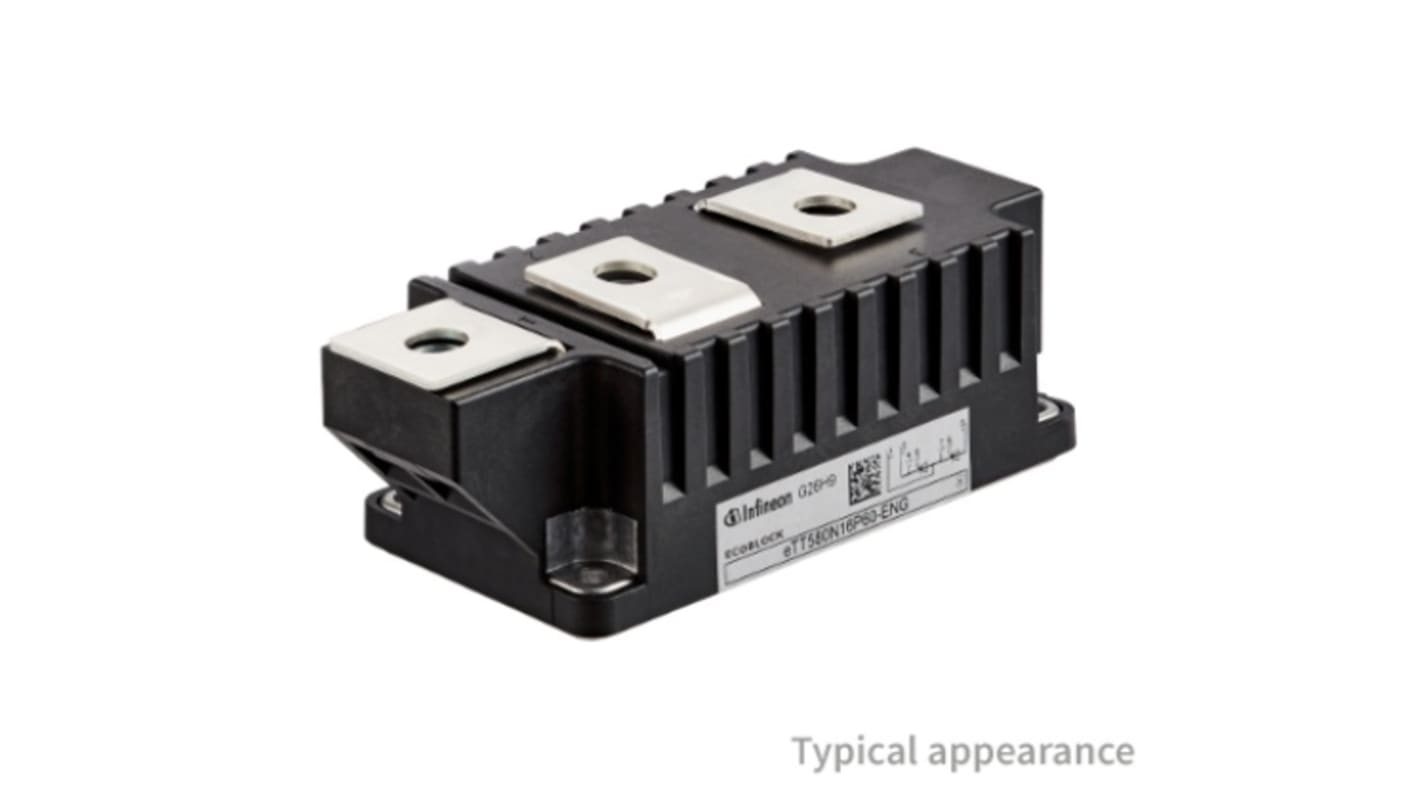

This image is representative of the product range
Bulk discount available
Subtotal (1 tray of 2 units)*
PHP31,423.72
(exc. VAT)
PHP35,194.56
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Limited stock
- 2 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tray* |
|---|---|---|
| 2 - 4 | PHP15,711.86 | PHP31,423.72 |
| 6 - 8 | PHP15,083.115 | PHP30,166.23 |
| 10 + | PHP14,691.555 | PHP29,383.11 |
*price indicative
- RS Stock No.:
- 217-7170
- Mfr. Part No.:
- ETD630N16P60HPSA1
- Manufacturer:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Rated Average On-State Current Irms | 635A | |
| Product Type | Thyristor Module | |
| Repetitive Peak Reverse Voltage VDRM | 1600V | |
| Surge Current Rating | 19800A | |
| Maximum Gate Trigger Current Igt | 250mA | |
| Pin Count | 7 | |
| Maximum Holding Current Ih | 300mA | |
| Maximum Gate Trigger Voltage Vgt | 2V | |
| Maximum Operating Temperature | 135°C | |
| Series | eTT630N16P60 | |
| Standards/Approvals | No | |
| Peak On-State Voltage | 1.37V | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Rated Average On-State Current Irms 635A | ||
Product Type Thyristor Module | ||
Repetitive Peak Reverse Voltage VDRM 1600V | ||
Surge Current Rating 19800A | ||
Maximum Gate Trigger Current Igt 250mA | ||
Pin Count 7 | ||
Maximum Holding Current Ih 300mA | ||
Maximum Gate Trigger Voltage Vgt 2V | ||
Maximum Operating Temperature 135°C | ||
Series eTT630N16P60 | ||
Standards/Approvals No | ||
Peak On-State Voltage 1.37V | ||
Automotive Standard No | ||
The Infineon Thyristor/diode 60 mm eco block 1600 V, 630 A module for phase control in pressure contact technology. ETD630N16P60 is a complete re-design of our pressure contact technology.
Complete re-design of our proven pressure contact technology
Short-on-fail capability
Best-in-class DC blocking capability
Higher operational temperature
Standard housing dimensions
Ready for low housing height (IGBT compatible)
Best power-to-price ratio
Reduced failure & system costs
Predictable performance over entire lifetime
Slim, sustainable and environmentally friendly
Ready for safety applications
Easy mounting & Faster time-to-market
