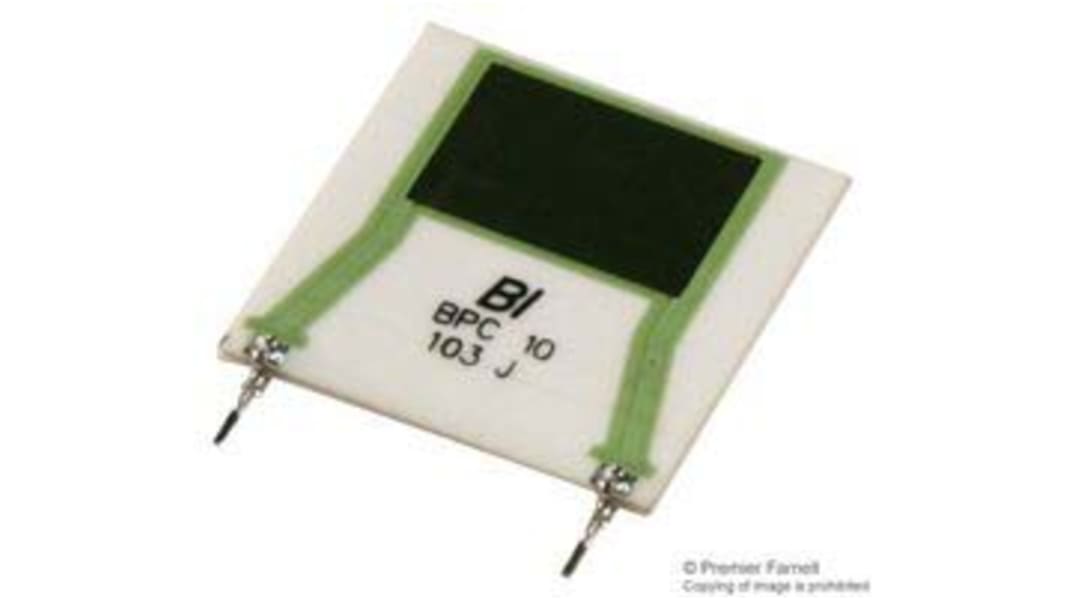

TT Electronics/BI 10 Ω Thick Film Resistor 10 W 5 % BPC10 100J
- RS Stock No.:
- 144-5992
- Mfr. Part No.:
- BPC10 100J
- Manufacturer:
- TT Electronics/BI
Subtotal (1 tray of 50 units)*
PHP21,974.70
(exc. VAT)
PHP24,611.65
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 900 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tray* |
|---|---|---|
| 50 + | PHP439.494 | PHP21,974.70 |
*price indicative
- RS Stock No.:
- 144-5992
- Mfr. Part No.:
- BPC10 100J
- Manufacturer:
- TT Electronics/BI
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TT Electronics/BI | |
| Resistance | 10Ω | |
| Product Type | Resistor | |
| Power Rating | 10W | |
| Resistor Type | Thick Film | |
| Tolerance ± | 5% | |
| Voltage | 300V ac, 500V ac | |
| Technology | Thick Film | |
| Series | BPC10 | |
| Automotive Standard | No | |
| Pin Count | 2 | |
| Lead Pitch Radial | 20.32mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 155°C | |
| Length | 25.4mm | |
| Height | 25.4mm | |
| Width | 2.54mm | |
| Standards/Approvals | RoHS | |
| Temperature Coefficient | ±100 ppm/°C | |
| Select all | ||
|---|---|---|
Brand TT Electronics/BI | ||
Resistance 10Ω | ||
Product Type Resistor | ||
Power Rating 10W | ||
Resistor Type Thick Film | ||
Tolerance ± 5% | ||
Voltage 300V ac, 500V ac | ||
Technology Thick Film | ||
Series BPC10 | ||
Automotive Standard No | ||
Pin Count 2 | ||
Lead Pitch Radial 20.32mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 155°C | ||
Length 25.4mm | ||
Height 25.4mm | ||
Width 2.54mm | ||
Standards/Approvals RoHS | ||
Temperature Coefficient ±100 ppm/°C | ||
- COO (Country of Origin):
- GB
Thick-film on ceramic offers a highly Compact resistor technology for surge and overload applications. This Application Note illustrates some of the many applications, which range from PSU inrush suppression to high voltage laser supply current limiting, and the TT electronics products which meet their high surge requirements.
Non-Inductive Planar package
High power density.
Thin package for high density PCB installation.
Power dissipated above the board
