Microchip MCP96RL00 Series, Push Pull Output Temperature Sensor, Surface Mount, Serial-2 Wire, ±6°C, 20-Pin MQFN
- RS Stock No.:
- 187-7718
- Mfr. Part No.:
- MCP96RL00-E/MX
- Manufacturer:
- Microchip

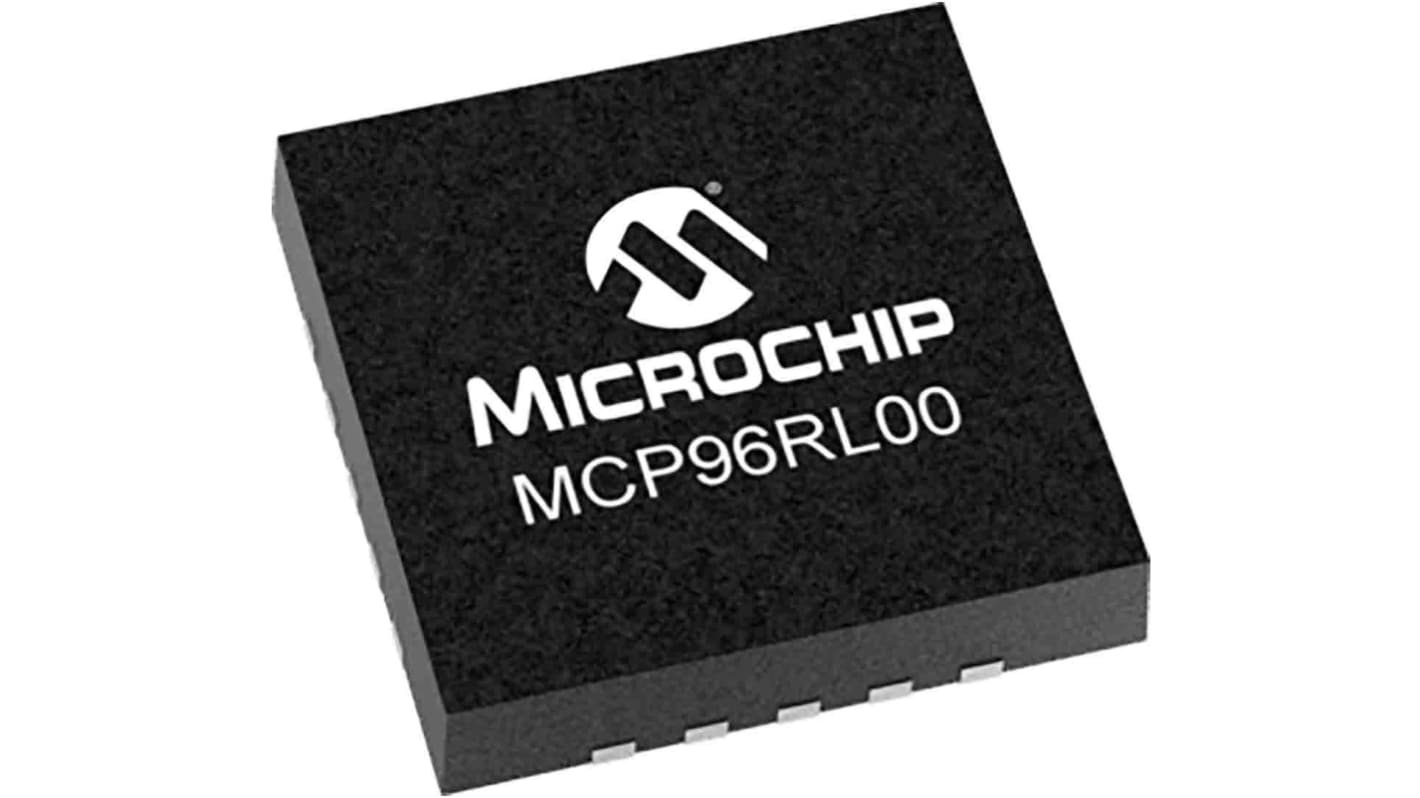

This image is representative of the product range
Subtotal (1 tube of 73 units)*
PHP14,492.252
(exc. VAT)
PHP16,231.331
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 365 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tube* |
|---|---|---|
| 73 + | PHP198.524 | PHP14,492.25 |
*price indicative
- RS Stock No.:
- 187-7718
- Mfr. Part No.:
- MCP96RL00-E/MX
- Manufacturer:
- Microchip
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Temperature Sensor | |
| Output Type | Push Pull | |
| Interface Type | Serial-2 Wire | |
| Sub Type | Temperature Sensor | |
| Accuracy | ±6°C | |
| Mount Type | Surface | |
| Pin Count | 20 | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -40°C | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 5.5V | |
| Package Type | MQFN | |
| Height | 0.95mm | |
| Width | 5 mm | |
| Standards/Approvals | No | |
| Length | 5mm | |
| Series | MCP96RL00 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Temperature Sensor | ||
Output Type Push Pull | ||
Interface Type Serial-2 Wire | ||
Sub Type Temperature Sensor | ||
Accuracy ±6°C | ||
Mount Type Surface | ||
Pin Count 20 | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -40°C | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 5.5V | ||
Package Type MQFN | ||
Height 0.95mm | ||
Width 5 mm | ||
Standards/Approvals No | ||
Length 5mm | ||
Series MCP96RL00 | ||
Automotive Standard No | ||
Thermocouple Electromotive Force (EMF) to °C Converter:
Integrated Cold-Junction Compensation
Supported Types:
Type K, J, T, N, S, E, B and R
Sensor Accuracy for Thermocouple Hot-Junction
MCP9600 ±0.5°C/±1.5°C (Typ./Max.)
MCP96L00 ±2.0°C/±4.0°C (Typ./Max.)
MCP96RL00 ±4.0°C/±8.0°C (Typ./Max.)
Measurement Resolution:
Hot and Cold-Junctions: +0.0625°C (typical)
Four Programmable Temperature Alert Outputs:
Monitor Hot or Cold-Junction Temperatures
Detect Rising or Falling Temperatures
Up to 255°C of Programmable Hysteresis
Programmable Digital Filter for Temperature
Low Power:
Shutdown Mode
Burst Mode: 1 to 128 Temperature Samples
2-Wire Interface: I2C Compatible, 100 kHz:
Supports Eight Devices per I2C Bus
Operating Voltage Range: 2.7V to 5.5V
Operating Current: 300 μA (typical)
Shutdown Current: 2 μA (typical)
Package: 20-lead MQFN
Typical Applications
Petrochemical Thermal Management
Hand-Held Measurement Equipment
Industrial Equipment Thermal Management
Ovens
Industrial Engine Thermal Monitor
Temperature Detection Racks
