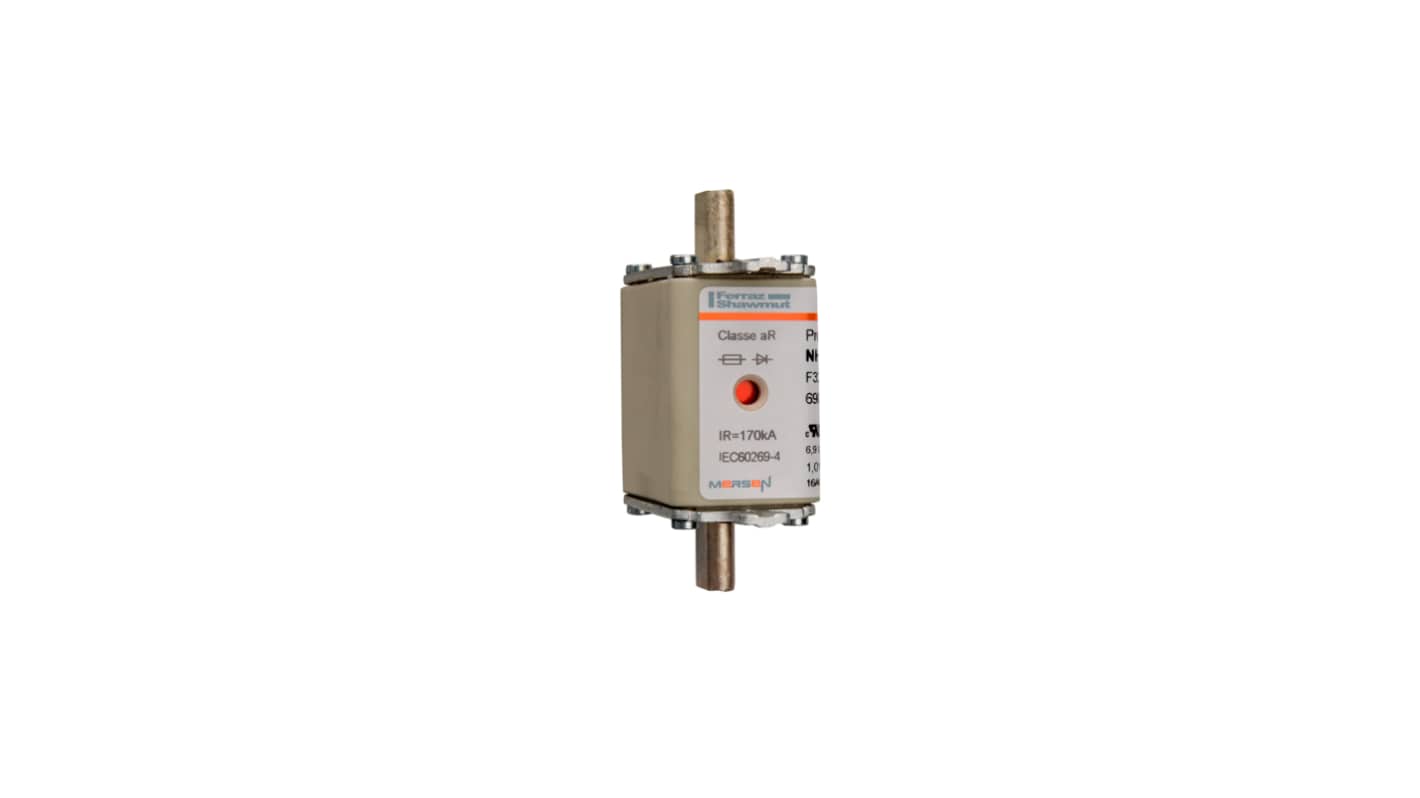

Mersen 125A NH Fuse, NH00, 690V ac
- RS Stock No.:
- 448-3421
- Mfr. Part No.:
- F320165
- Manufacturer:
- Mersen
Temporarily out of stock - back order for despatch 13/05/2024, delivery within 10 working days from desptach date
Added
Price Each
PHP6,205.72
(exc. VAT)
PHP6,950.41
(inc. VAT)
| Units | Per Unit |
| 1 - 24 | PHP6,205.72 |
| 25 - 99 | PHP6,019.56 |
| 100 + | PHP5,838.97 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 448-3421
- Mfr. Part No.:
- F320165
- Manufacturer:
- Mersen
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TN
Product Details
Protistor® fuses DIN 43620 size T00
Fuses with very high breaking capacity to protect power semi-conductors.
Body equipped with a fusion striker capable of activating a micro-switch attached to the body.
Order micro-switch separately, stock no. 448-3241
Body equipped with a fusion striker capable of activating a micro-switch attached to the body.
Order micro-switch separately, stock no. 448-3241
Approvals
DIN 43620
Specifications
Attribute | Value |
|---|---|
| Current Rating | 125A |
| Fuse Size | NH00 |
| Voltage Rating | 690V ac |
| Fuse Standard | IEC 269.4, IEC 60269-4 |
| Application Category | aR |
| Tag Width | 6mm |
| Fuse Speed | FF |
| High Rupture Capacity | Yes |
| Overall Length | 79mm |
| Body Length | 50mm |
| Body Width | 29.5mm |
| Body Height | 47.5mm |
