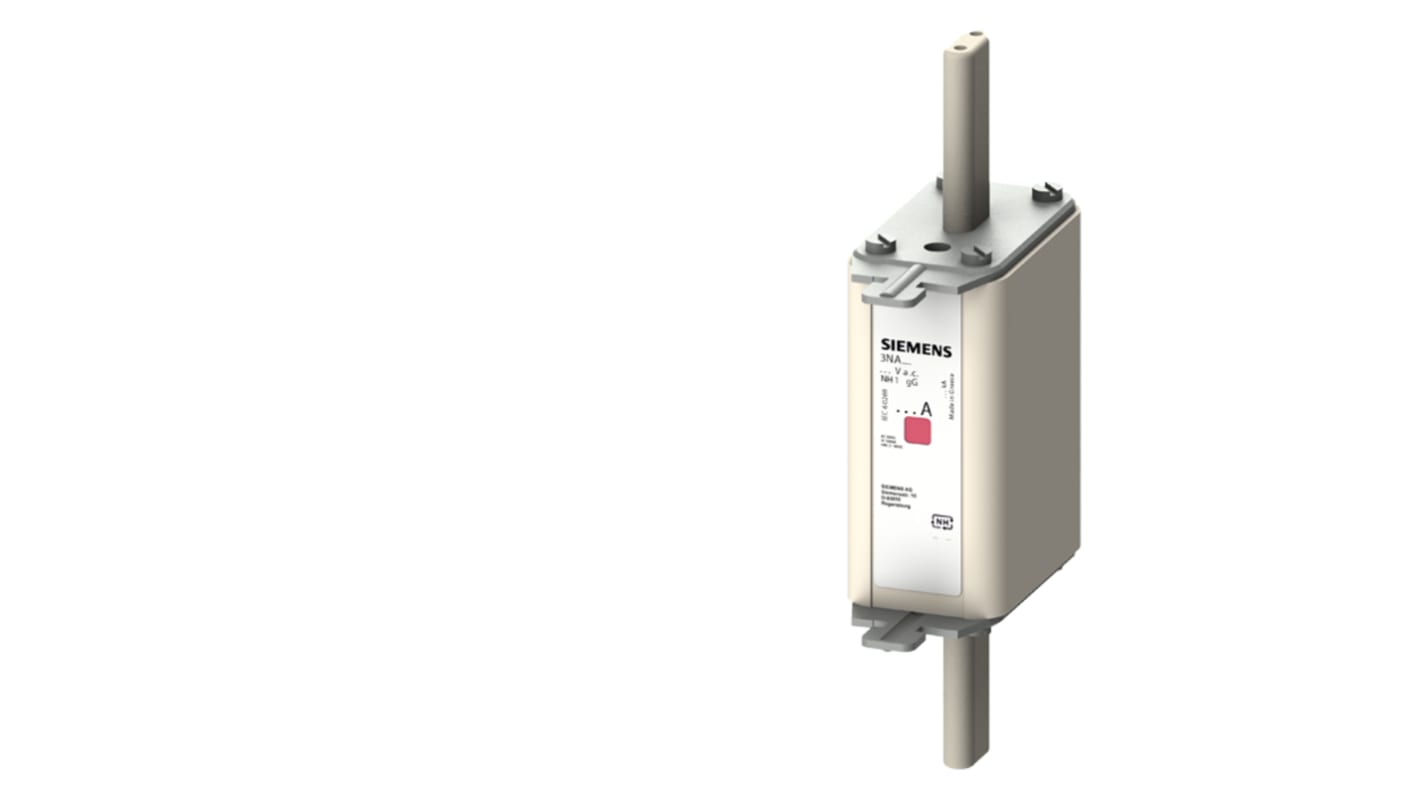

Siemens 20A NH Fuse NH1 500 V ac, 440V dc
- RS Stock No.:
- 269-8313
- Mfr. Part No.:
- 3NA7107
- Manufacturer:
- Siemens
Subtotal (1 pack of 3 units)*
PHP4,425.909
(exc. VAT)
PHP4,957.017
(inc. VAT)
FREE delivery for orders over ₱5,000.00
Stocked by manufacturer
- Ready to ship from October 01, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 3 + | PHP1,475.303 | PHP4,425.91 |
*price indicative
- RS Stock No.:
- 269-8313
- Mfr. Part No.:
- 3NA7107
- Manufacturer:
- Siemens
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Fuse Type | LV HRC | |
| Product Type | NH Fuse | |
| Current Rating | 20A | |
| Fuse Size | NH1 | |
| Voltage | 500, 440V ac | |
| Standards/Approvals | IEC 81346-2, CE, UKCA, IEC 60947-2, EAC, EN 60269-1 | |
| Fuse Speed | GG | |
| High Rupture Capacity | Yes | |
| Minimum Operating Temperature | -5°C | |
| Fuse Characteristics | gG | |
| Maximum Operating Temperature | 40°C | |
| Overall Length | 64mm | |
| Length | 64mm | |
| Height | 134mm | |
| Width | 30mm | |
| Series | SENTRON | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Fuse Type LV HRC | ||
Product Type NH Fuse | ||
Current Rating 20A | ||
Fuse Size NH1 | ||
Voltage 500, 440V ac | ||
Standards/Approvals IEC 81346-2, CE, UKCA, IEC 60947-2, EAC, EN 60269-1 | ||
Fuse Speed GG | ||
High Rupture Capacity Yes | ||
Minimum Operating Temperature -5°C | ||
Fuse Characteristics gG | ||
Maximum Operating Temperature 40°C | ||
Overall Length 64mm | ||
Length 64mm | ||
Height 134mm | ||
Width 30mm | ||
Series SENTRON | ||
- COO (Country of Origin):
- GR
The Siemens LV HRC fuse is used for installation systems in non-residential, commercial and industrial buildings as well as in systems of power supply companies, thereby protect essential building parts and plants. The LV HRC fuse is fuse system designed for operation by experts. There are no constructional requirements for non-interchangeability of rated current and touch protection.
Live grip lugs
Equipped with silver-plated contact pins
Combined indicator
NH1 operating class
