Bourns 80A Tag Fuse 38 mm 170V dc, 24.1 mm
- RS Stock No.:
- 254-4227
- Mfr. Part No.:
- PF-NT2-80
- Manufacturer:
- Bourns

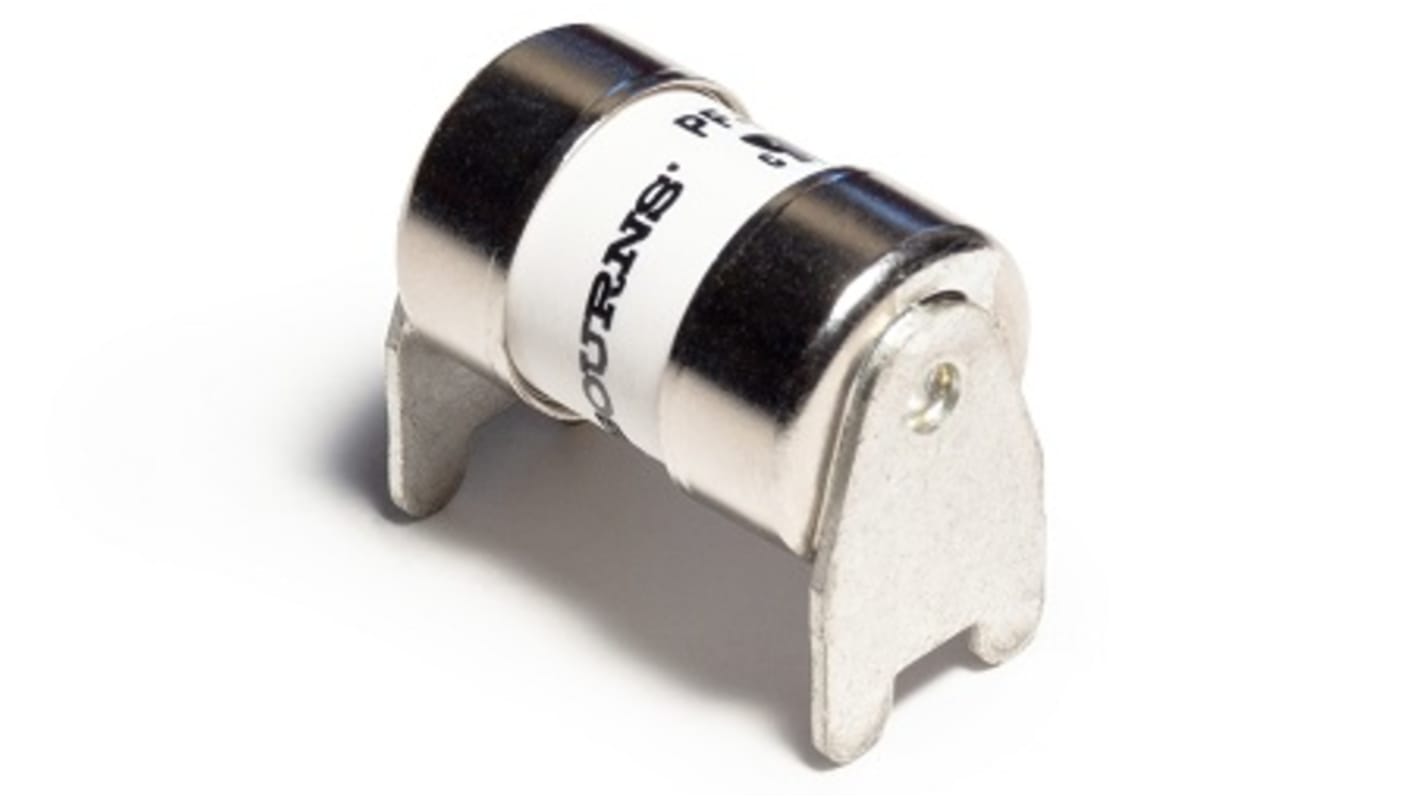

This image is representative of the product range
Subtotal (1 unit)*
PHP3,036.27
(exc. VAT)
PHP3,400.62
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP3,036.27 |
*price indicative
- RS Stock No.:
- 254-4227
- Mfr. Part No.:
- PF-NT2-80
- Manufacturer:
- Bourns
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Current Rating | 80A | |
| Product Type | Tag Fuse | |
| Fuse Size | 38 mm | |
| Voltage | 170V dc | |
| Standards/Approvals | RoHS, UL | |
| Fixing Centres | 24.1 mm | |
| Tag Width | 12.7mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Length | 23.96mm | |
| Overall Length | 23.96mm | |
| Width | 21.6mm | |
| Series | PF-N | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Current Rating 80A | ||
Product Type Tag Fuse | ||
Fuse Size 38 mm | ||
Voltage 170V dc | ||
Standards/Approvals RoHS, UL | ||
Fixing Centres 24.1 mm | ||
Tag Width 12.7mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Length 23.96mm | ||
Overall Length 23.96mm | ||
Width 21.6mm | ||
Series PF-N | ||
- COO (Country of Origin):
- TW
The Bourns electrical powerfuse safety device that operates to provide protection against the overflow of current in an electrical circuit. An important component of an electrical powerfuse is a metal wire or strip that melts when excess current flows through it.
Operation up to 170 VDC to provide current limiting short circuit protection
UL Recognized with a 100 kA interrupting rating
UL 248-1 compliant
RoHS compliant and halogen free
