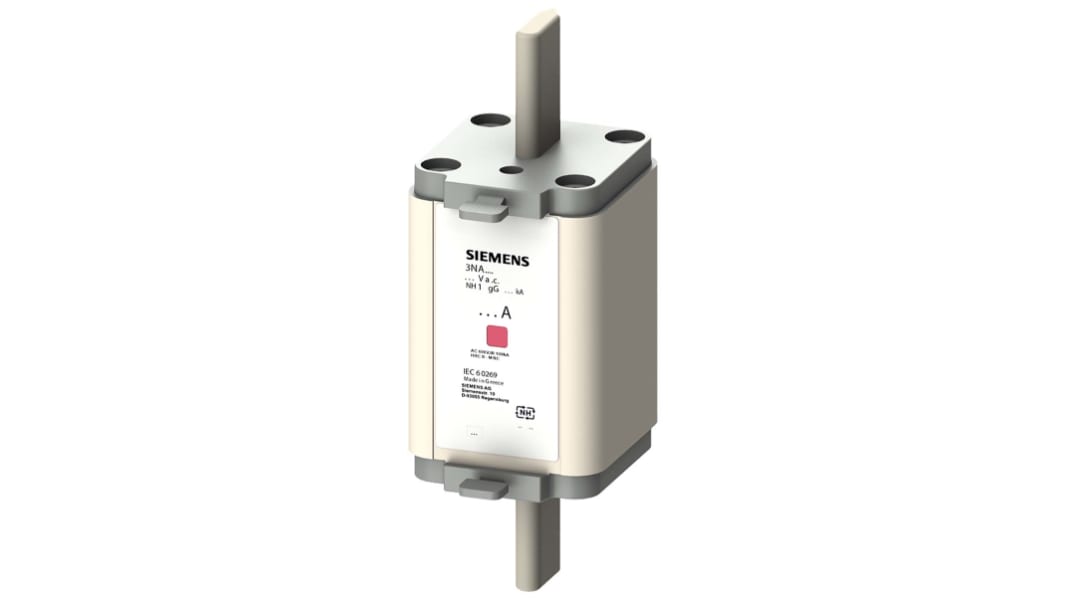

Siemens 125A Centred Tag Fuse NH1 690V ac
- RS Stock No.:
- 203-1969
- Mfr. Part No.:
- 3NA6132-6
- Manufacturer:
- Siemens
Subtotal (1 pack of 3 units)*
PHP21,703.23
(exc. VAT)
PHP24,307.62
(inc. VAT)
FREE delivery for orders over ₱5,000.00
Stocked by manufacturer
- Ready to ship from September 30, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 3 + | PHP7,234.41 | PHP21,703.23 |
*price indicative
- RS Stock No.:
- 203-1969
- Mfr. Part No.:
- 3NA6132-6
- Manufacturer:
- Siemens
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Current Rating | 125A | |
| Product Type | Centred Tag Fuse | |
| Fuse Type | HRC | |
| Fuse Size | NH1 | |
| Voltage | 690V ac | |
| Standards/Approvals | No | |
| Application Category | gG | |
| Fuse Speed | F | |
| Minimum Operating Temperature | -5°C | |
| Tag Type | Blade | |
| Maximum Operating Temperature | 60°C | |
| Length | 75mm | |
| Overall Length | 137mm | |
| Width | 30mm | |
| Series | 3NA | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Current Rating 125A | ||
Product Type Centred Tag Fuse | ||
Fuse Type HRC | ||
Fuse Size NH1 | ||
Voltage 690V ac | ||
Standards/Approvals No | ||
Application Category gG | ||
Fuse Speed F | ||
Minimum Operating Temperature -5°C | ||
Tag Type Blade | ||
Maximum Operating Temperature 60°C | ||
Length 75mm | ||
Overall Length 137mm | ||
Width 30mm | ||
Series 3NA | ||
- COO (Country of Origin):
- DE
The Siemens LV HRC fuse link with fuse size NH1, non-corroding, silver-plated switching contact. It has preferably vertical mounting position. It has insulated grip lugs.
Protection class IP IP20 with connected conductors
Design 3NA6
