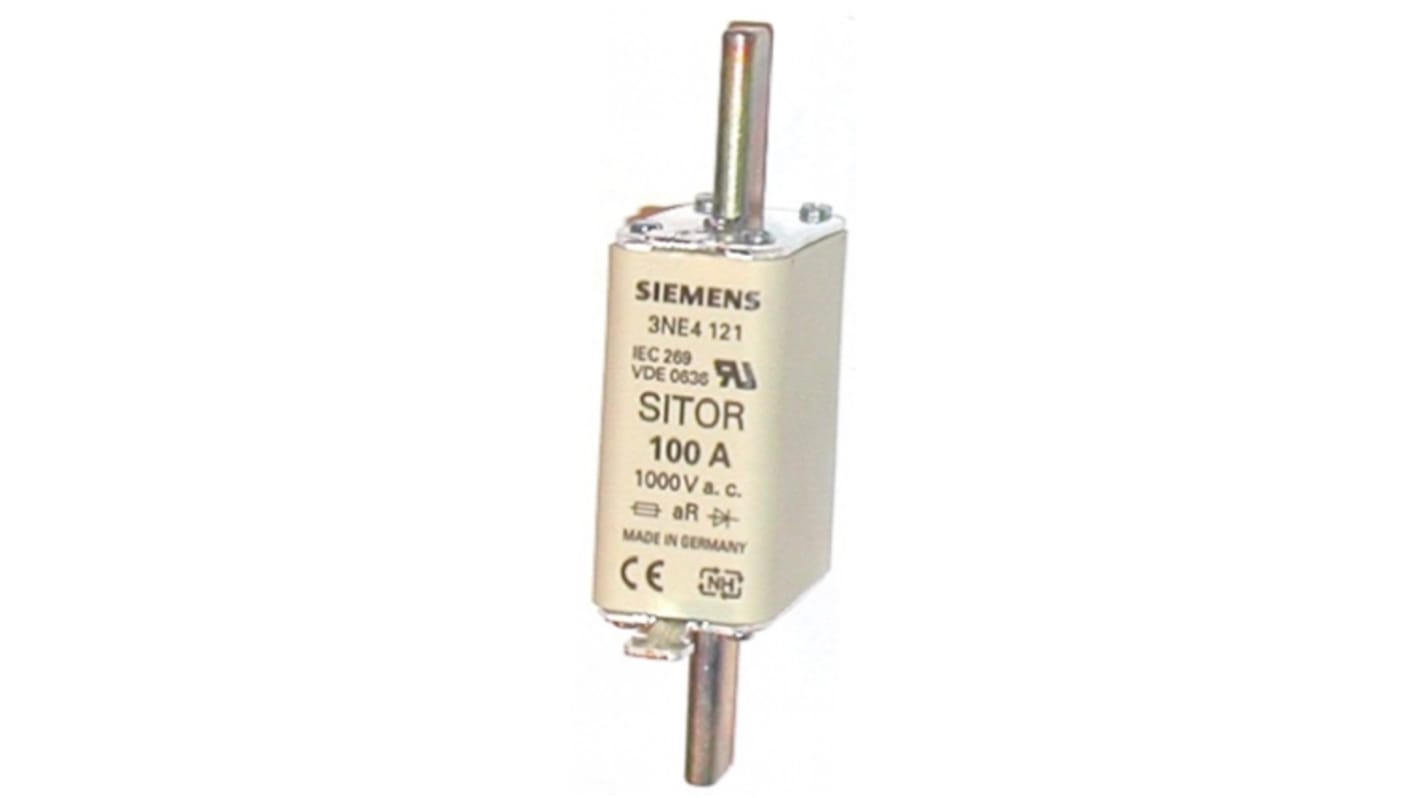

Siemens 100A Centred Tag Fuse NH0 1000V ac
- RS Stock No.:
- 395-585
- Mfr. Part No.:
- 3NE4121
- Manufacturer:
- Siemens
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 3 units)*
MYR1,448.01
FREE delivery for orders over RM 150.00
Stocked by manufacturer
- Ready to ship from 26 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 3 - 72 | MYR482.67 | MYR1,448.01 |
| 75 - 297 | MYR472.53 | MYR1,417.59 |
| 300 + | MYR458.357 | MYR1,375.07 |
*price indicative
- RS Stock No.:
- 395-585
- Mfr. Part No.:
- 3NE4121
- Manufacturer:
- Siemens
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Current Rating | 100A | |
| Product Type | Centred Tag Fuse | |
| Fuse Type | HLS | |
| Fuse Size | NH0 | |
| Voltage | 1000V ac | |
| Standards/Approvals | No | |
| Application Category | aR | |
| Tag Width | 6mm | |
| High Rupture Capacity | Yes | |
| Tag Type | Blade | |
| Minimum Operating Temperature | -5°C | |
| Length | 65mm | |
| Maximum Operating Temperature | 60°C | |
| Overall Length | 125mm | |
| Width | 30mm | |
| Height | 47mm | |
| Series | 3NE | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Current Rating 100A | ||
Product Type Centred Tag Fuse | ||
Fuse Type HLS | ||
Fuse Size NH0 | ||
Voltage 1000V ac | ||
Standards/Approvals No | ||
Application Category aR | ||
Tag Width 6mm | ||
High Rupture Capacity Yes | ||
Tag Type Blade | ||
Minimum Operating Temperature -5°C | ||
Length 65mm | ||
Maximum Operating Temperature 60°C | ||
Overall Length 125mm | ||
Width 30mm | ||
Height 47mm | ||
Series 3NE | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GR
SITOR Fuses, 3NE4 Series, Size 0, Type aR
Semiconductor protection fuses
Operating class aR (partial-range semiconductor protection)
With blade contacts, for installation in NH fuse bases or load switches
SITOR NH fuse links are designed for the overload and short circuit protection of cables, wires and power rails as well as for semiconductor protection
Standards
IEC 60269-2
