Eaton 800A Tag Fuse 83 x 210 mm 660 V ac, 350V dc, 184 mm

RS Stock No.:: 261-686
Mfr. Part No.:: TLM800
Manufacturer:: Eaton

Eaton 800A Tag Fuse 83 x 210 mm 660 V ac, 350V dc, 184 mm

Subtotal (1 unit)*

PHP34,670.85

(exc. VAT)

PHP38,831.35

(inc. VAT)

FREE delivery for orders over ₱5,000.00

Stocked by manufacturer

Ready to ship from May 31, 2027

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP34,670.85

*price indicative

RS Stock No.:: 261-686
Mfr. Part No.:: TLM800
Manufacturer:: Eaton

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Current Rating	800A
	Product Type	Tag Fuse
	Fuse Type	TLM
	Fuse Size	83 x 210 mm
	Voltage	660V ac, 350V ac
	Standards/Approvals	CE, BS88, IEC 60269, EAC, RoHS
	Fixing Centres	184 mm
	Application Category	gG, gL
	Fuse Speed	gL
	Fuse Characteristics	gG/gL
	Overall Length	210mm
	Length	210mm
	Diameter	83mm
	Height	83mm
	Width	83mm
	Series	Bussmann

	Select all
	Brand Eaton
	Current Rating 800A
	Product Type Tag Fuse
	Fuse Type TLM
	Fuse Size 83 x 210 mm
	Voltage 660V ac, 350V ac
	Standards/Approvals CE, BS88, IEC 60269, EAC, RoHS
	Fixing Centres 184 mm
	Application Category gG, gL
	Fuse Speed gL
	Fuse Characteristics gG/gL
	Overall Length 210mm
	Length 210mm
	Diameter 83mm
	Height 83mm
	Width 83mm
	Series Bussmann

Datasheet - TLM800

RoHS Status: Exempt

COO (Country of Origin):: HU

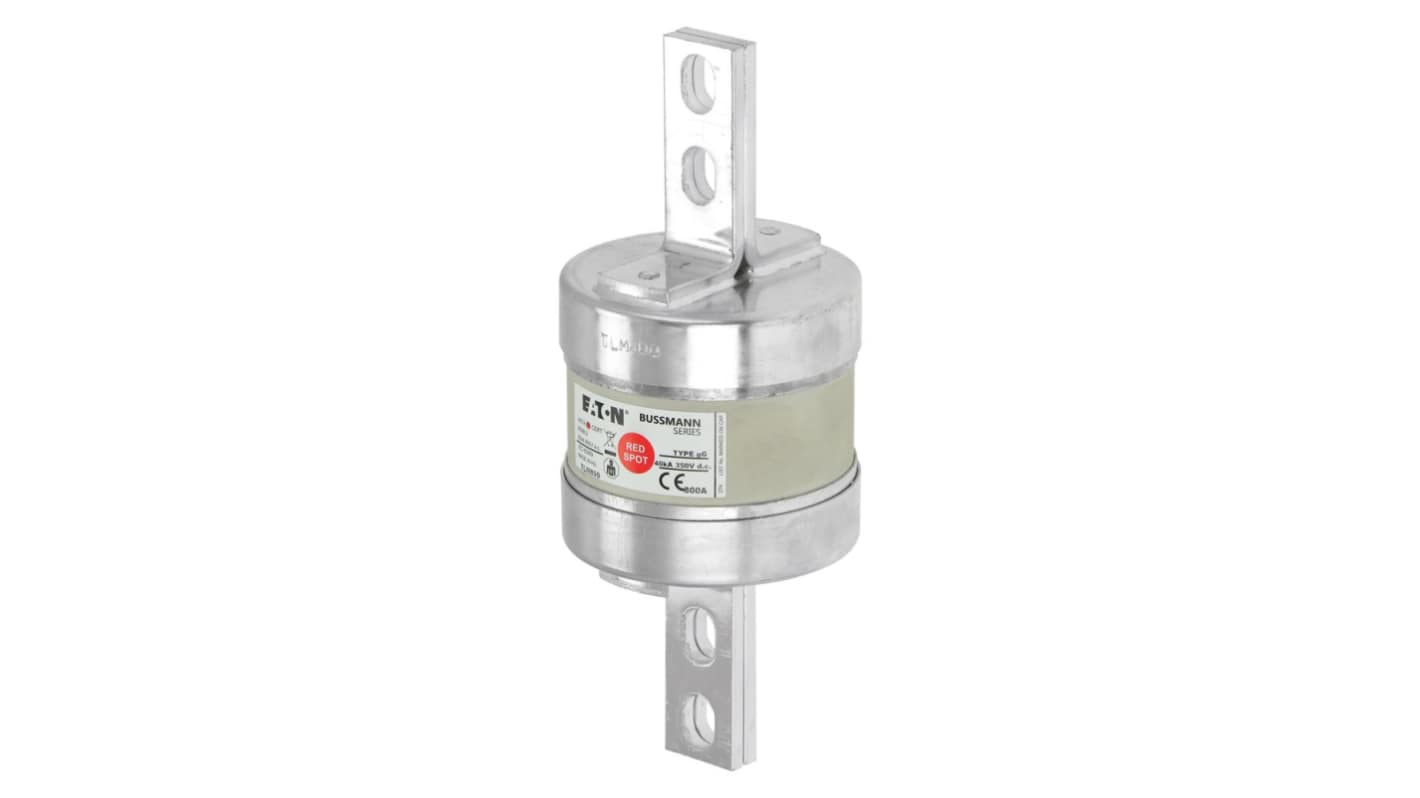

Eaton Tag Fuse, 800A Current Rating, 660V AC Voltage - TLM800

This tag fuse serves as a high-current protective element for industrial electrical systems, designed to interrupt excessive currents in low- and high-voltage circuits. It operates as a centre-bolted tag unit intended for installations where clear, robust fuse identification and Rapid replacement are required, and it is suited to both AC and DC protection duties in automation and electrical distribution equipment.

Features and Benefits:

• 800A rating provides high-current interruption capacity
• gG gL characteristics ensure full-range overload and short-circuit protection
• Rated to 660V AC for use in medium-voltage AC systems
• 350V DC capability supports DC supply and converter protection
• Conforms to IEC 60269 and BS 88 to meet recognised performance norms
• CE and RoHS marking confirms regulatory material and safety conformance

Applications

• Suitable for protection of motor feeder circuits in automation panels
• Ideal for industrial distribution boards handling high fault currents
• Used for safeguarding DC bus supplies in drive systems
• Can be used with fuseholders requiring centre-bolted tag components
• Used for replacement in installations needing gG and gL characteristics

What fixing arrangement does it require for mountings?

It uses a centre-bolted tag format with 184mm fixing centres for panel or Block installation.

What physical envelope should I allow in a fuseholder cutout?

Allow for an overall length of 210mm and a diameter/width envelope of 83mm to accommodate the body profile.

Which approvals indicate suitability for cross-border industrial use?

It carries CE marking and meets RoHS requirements, and holds EAC approval for Eurasian conformity.

What standards define its electrical performance criteria?

Its operational and interchange characteristics are defined to IEC 60269 and BS 88 standards.
