Eaton 10A Tag Fuse 12 x 47 mm 240V
- RS Stock No.:
- 228-818
- Mfr. Part No.:
- SSD10
- Manufacturer:
- Eaton
Subtotal (1 pack of 20 units)*
PHP11,350.20
(exc. VAT)
PHP12,712.22
(inc. VAT)
FREE delivery for orders over ₱5,000.00
Stocked by manufacturer
- Ready to ship from March 01, 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per Unit* |
|---|---|---|
| 1 + | PHP11,350.20 | PHP567.51 |
*price indicative
- RS Stock No.:
- 228-818
- Mfr. Part No.:
- SSD10
- Manufacturer:
- Eaton
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Tag Fuse | |
| Fuse Type | SSD | |
| Fuse Size | 12 x 47 mm | |
| Standards/Approvals | EN 60691:007, RoHS, ANSIESD S0.0:01, EN IEC 6000:018 | |
| Application Category | Street Lighting Cut-outs | |
| Fuse Speed | gL | |
| Tag Type | Offset Bladed | |
| Fuse Characteristics | gG/gL | |
| Overall Length | 47mm | |
| Length | 47mm | |
| Diameter | 12mm | |
| Height | 12mm | |
| Series | Eaton Bussmann | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Tag Fuse | ||
Fuse Type SSD | ||
Fuse Size 12 x 47 mm | ||
Standards/Approvals EN 60691:007, RoHS, ANSIESD S0.0:01, EN IEC 6000:018 | ||
Application Category Street Lighting Cut-outs | ||
Fuse Speed gL | ||
Tag Type Offset Bladed | ||
Fuse Characteristics gG/gL | ||
Overall Length 47mm | ||
Length 47mm | ||
Diameter 12mm | ||
Height 12mm | ||
Series Eaton Bussmann | ||
- COO (Country of Origin):
- IN

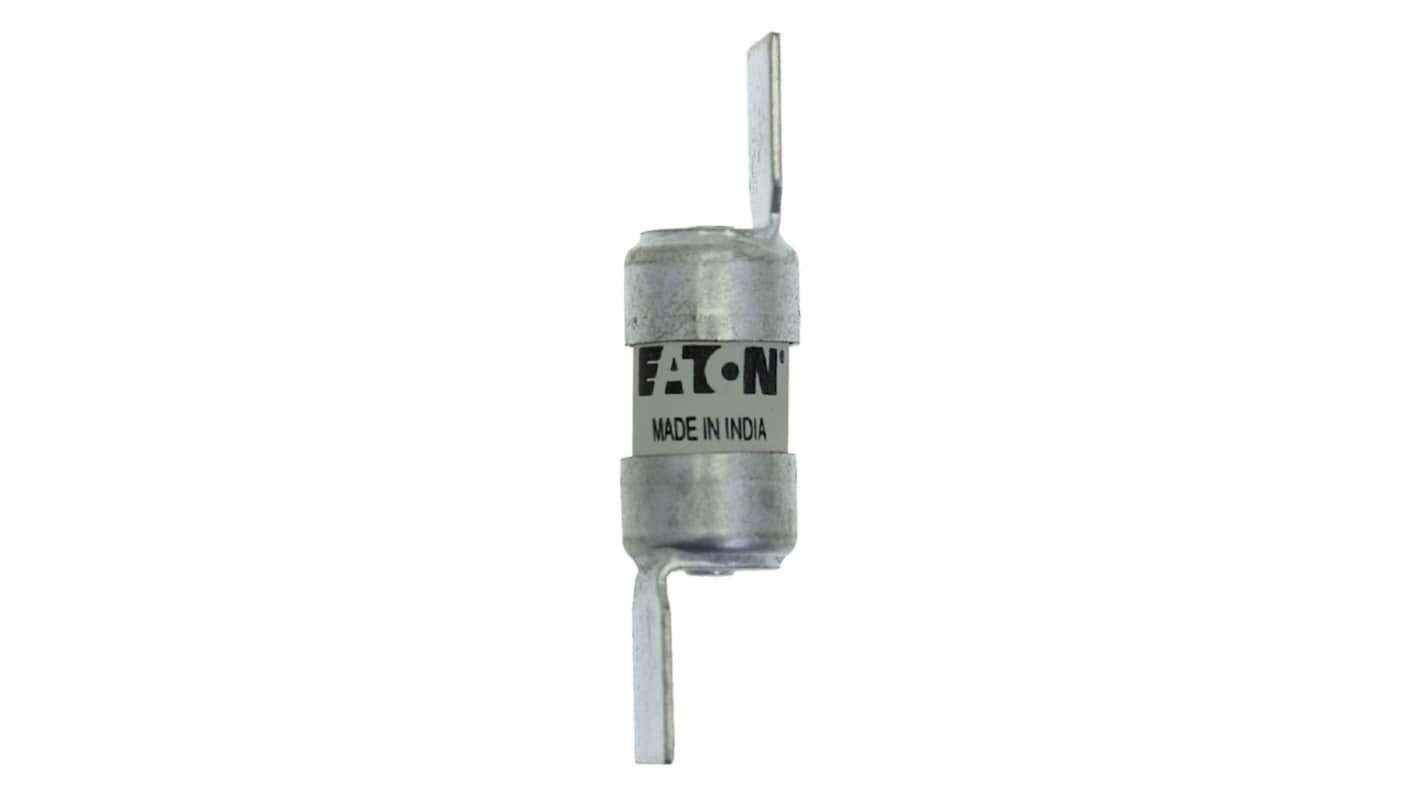

Eaton Tag Fuse, 10A Current Rating, 240V Voltage - SSD10
This tag fuse provides overcurrent protection for street lighting cut-outs and similar outdoor circuits. Designed for standard 240V distribution, it fits into dedicated cut-out assemblies to isolate faults and protect downstream wiring. The product is intended for technicians and engineers working on municipal lighting and industrial outdoor installations where a Compact replaceable protective device is required.
Features & Benefits
• 10A rating offers straightforward protection for lighting circuits
• gG/gL characteristic protects against both overloads and short circuits
• Slow-blow gL behaviour allows temporary inrush currents without nuisance trips
• Offset bladed tag simplifies insertion and removal in cut-out holders
• gG/gL characteristic protects against both overloads and short circuits
• Slow-blow gL behaviour allows temporary inrush currents without nuisance trips
• Offset bladed tag simplifies insertion and removal in cut-out holders
**Applications**
• Suitable for municipal street lighting cut-outs and feeders
• Ideal for replacing fuses in public lighting distribution networks
• Used with outdoor isolation holders in lighting maintenance tasks
• Can be used for protection of transformer secondary circuits in lighting columns
• Ideal for replacing fuses in public lighting distribution networks
• Used with outdoor isolation holders in lighting maintenance tasks
• Can be used for protection of transformer secondary circuits in lighting columns
What construction detail assists with physical handling during replacement?
The tag incorporates an offset bladed design that provides a protruding handle for manual extraction and insertion in confined cut-out assemblies.
How does the fuse respond to short-duration start-up currents?
The slow-blow gL operating behaviour tolerates brief inrush currents, preventing unnecessary interruptions while still clearing sustained faults.
Which voltage environments is it intended for?
It is specified for use in 240V systems commonly found in street lighting and related distribution circuits.
