MPN

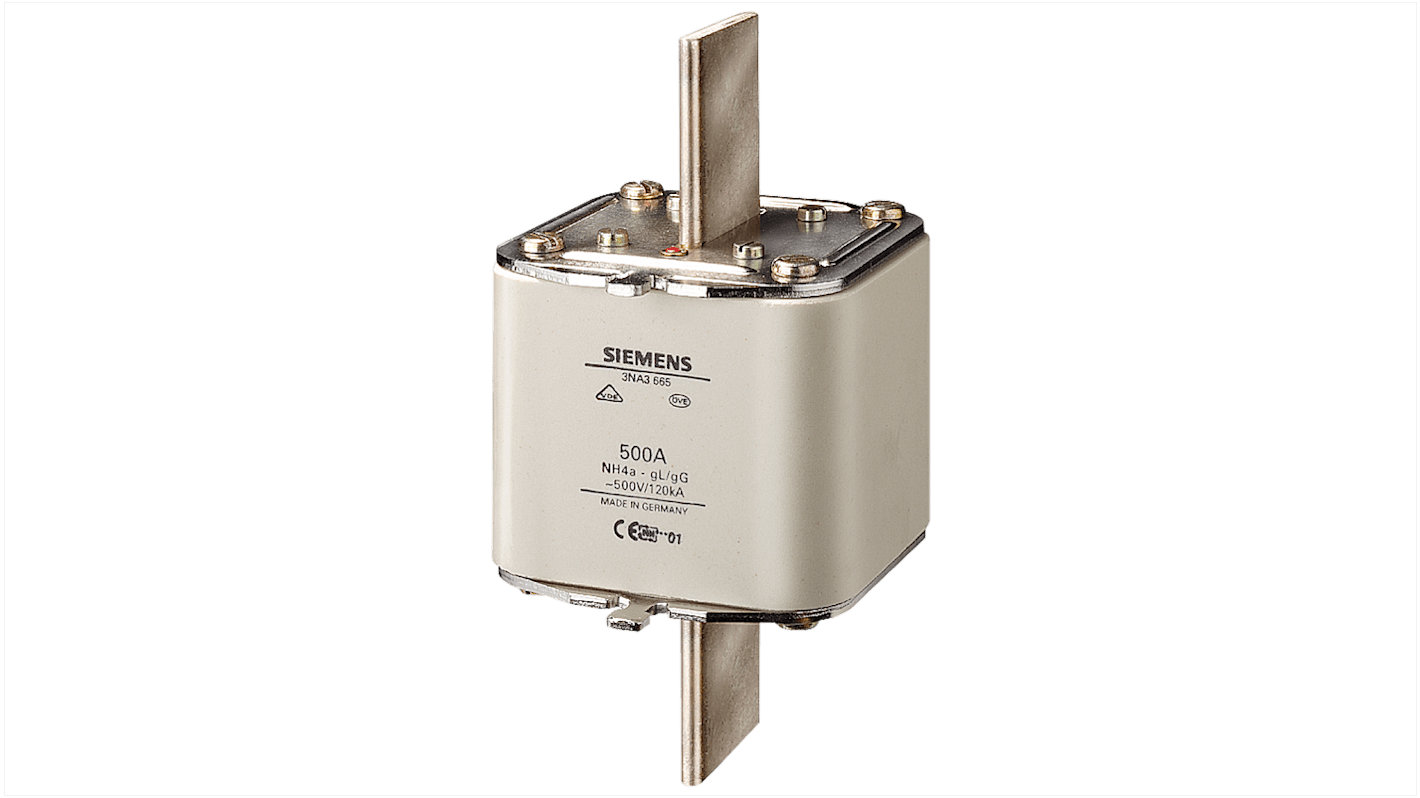

Siemens 500A Tag Fuse NH4a 500V ac/dc

Name: Siemens 500A Tag Fuse NH4a 500V ac/dc
Brand: Siemens
SKU: 143-901
Price: 31172.64 PHP
Availability: InStock

Subtotal (1 unit)*

PHP27,832.71

(exc. VAT)

PHP31,172.64

(inc. VAT)

Stocked by manufacturer

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP27,832.71

*price indicative

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Siemens
	Fuse Type	LV HRC
	Product Type	Tag Fuse
	Current Rating	500A
	Fuse Size	NH4a
	Voltage	500V ac/dc
	Standards/Approvals	IEC 81346-2, EAC, EN 60269-1, CE, UKCA, IEC 60947-2
	Fuse Speed	GG
	Minimum Operating Temperature	-5°C
	Fuse Characteristics	Non-corroding
	Maximum Operating Temperature	40°C
	Length	120mm
	Overall Length	120mm
	Width	101.8mm
	Height	202mm

	Select all
	Brand Siemens
	Fuse Type LV HRC
	Product Type Tag Fuse
	Current Rating 500A
	Fuse Size NH4a
	Voltage 500V ac/dc
	Standards/Approvals IEC 81346-2, EAC, EN 60269-1, CE, UKCA, IEC 60947-2
	Fuse Speed GG
	Minimum Operating Temperature -5°C
	Fuse Characteristics Non-corroding
	Maximum Operating Temperature 40°C
	Length 120mm
	Overall Length 120mm
	Width 101.8mm
	Height 202mm

The Siemens Fuse Element having blade contacts with front indicators. It mounted on non-insulated grip.

IP20 protection rated

UKCA and CE Approved
