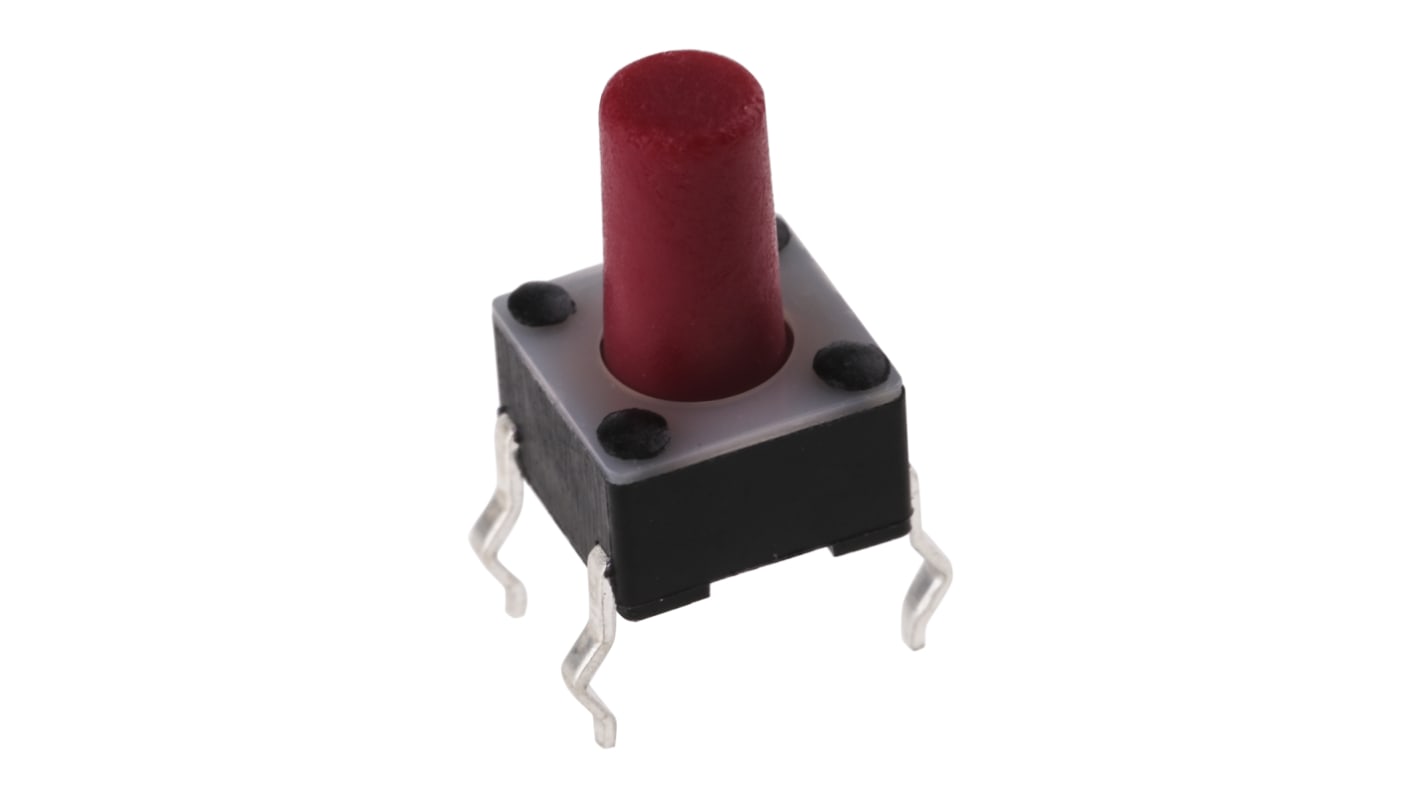

Red Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 24 V dc 5.9mm

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

TE Connectivity FSM Series Tactile Switches

The professional range of tactile switches from TE Connectivity. FSM series switches are suitable for use with mobile devices.

Features and benefits:

SPNO tactile switches available in THT, SMD & right angle mountings
SMD types suitable for immersion

Applications:

• Keyboards
• Keypads
• Telephones
• Radios
• General consumer electronics
• Closing the circuit on a PCV

Tactile

Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Terminal Type Through Hole
Switch Operation Momentary
Actuator Length 5.9mm
Actuator Colour Red
Actuator Type Button
Dimensions 6 x 6 x 9.5mm
Contact Current Rating 50 mA @ 24 V dc
Operating Force 2.55 N
Mechanical Life 100000Cycles
Height 9.5mm
Contact Material Copper Alloy
635 In Global stock for delivery within 4 - 8 working days
Price Each (In a Pack of 5)
PHP 6.654
(exc. VAT)
PHP 7.452
(inc. VAT)
units
Per Unit
Per Pack*
5 - 45
PHP6.654
PHP33.27
50 - 245
PHP6.334
PHP31.67
250 - 495
PHP5.944
PHP29.72
500 - 1245
PHP5.75
PHP28.75
1250 +
PHP5.618
PHP28.09
*price indicative
