- RS Stock No.:
- 479-1463
- Mfr. Part No.:
- 3-1825910-1
- Manufacturer:
- TE Connectivity
100 In Global stock for delivery. NCR Plus within 10 working day(s), rest of PH within 14 working days
3740 In Global stock for delivery. NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price Each (In a Pack of 20)
PHP10.26
(exc. VAT)
PHP11.49
(inc. VAT)
Units | Per Unit | Per Pack* |
20 - 80 | PHP10.26 | PHP205.20 |
100 - 480 | PHP9.953 | PHP199.06 |
500 + | PHP9.654 | PHP193.08 |
*price indicative |
- RS Stock No.:
- 479-1463
- Mfr. Part No.:
- 3-1825910-1
- Manufacturer:
- TE Connectivity
Technical data sheets
Legislation and Compliance
Product Details

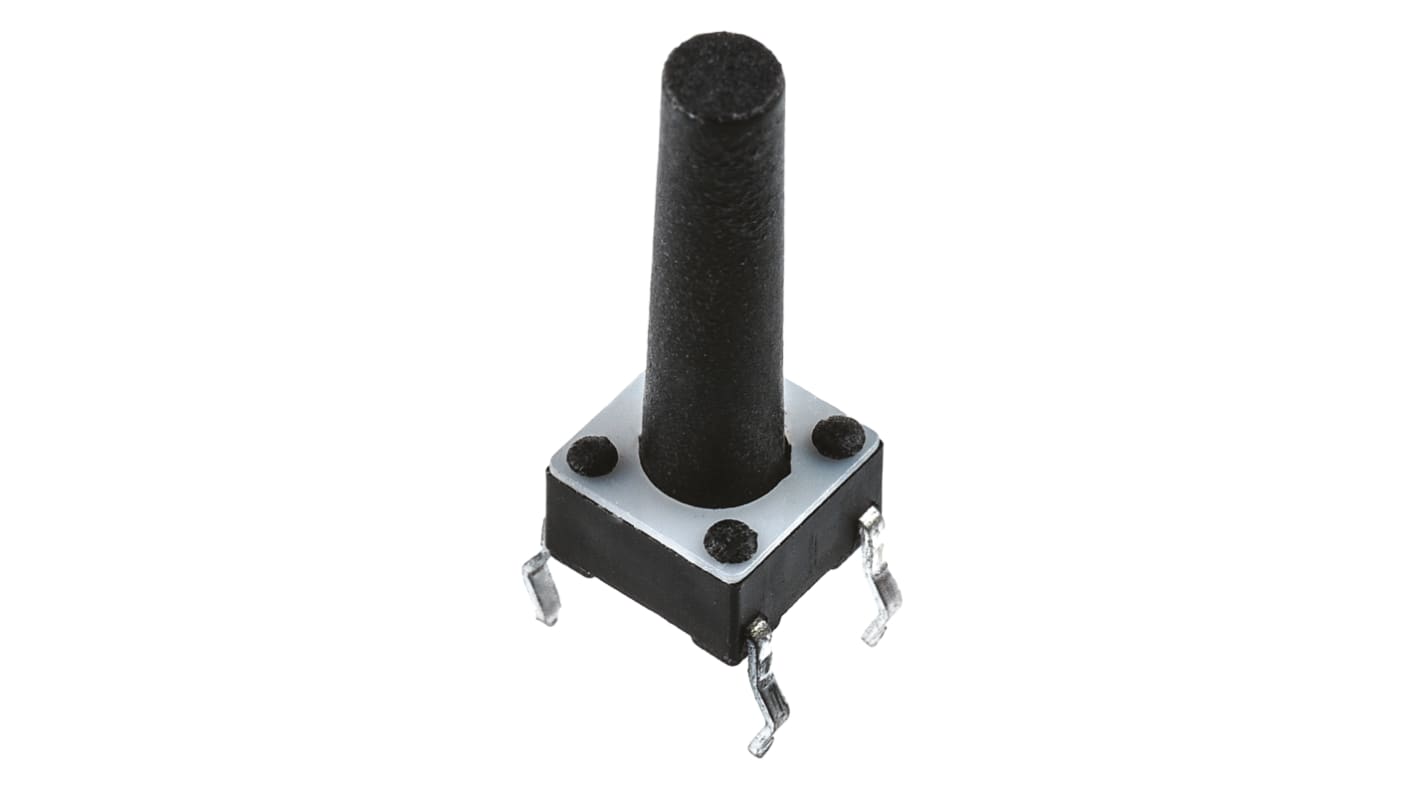

TE Connectivity FSM Series Tactile Switches
The professional range of tactile switches from TE Connectivity. FSM series switches are suitable for use with mobile devices.
Features and benefits:
SPNO tactile switches available in THT, SMD & right angle mountings
SMD types suitable for immersion
SMD types suitable for immersion
Applications:
Keyboards
Keypads
Telephones
Radios
General consumer electronics
Closing the circuit on a PCV
Keypads
Telephones
Radios
General consumer electronics
Closing the circuit on a PCV
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Tactile
Specifications
Attribute | Value |
---|---|
Contact Configuration | Single Pole Single Throw (SPST) |
Terminal Type | Through Hole |
Switch Operation | Momentary |
Actuator Length | 13.4mm |
Actuator Colour | Black |
Actuator Type | Button |
Length | 6mm |
Width | 6mm |
Dimensions | 6 x 6 x 17mm |
Illuminated | No |
Mounting Type | Surface Mount |
Contact Current Rating | 50 mA @ 24 V dc |
Voltage Rating | 24V dc |
Operating Force | 1.569 N |
Height | 17mm |
Maximum Operating Temperature | +105°C |
Contact Material | Silver Over Nickel Plated Copper Alloy (Stationary); Silver Plated Copper Alloy (Movable) |
Operating Temperature Range | -40 °C → +105°C |
Minimum Operating Temperature | -40°C |
Mechanical Life | 100000Operations |
