Wurth Elektronik, WE-XHMA, 1510 Yes Surface Mount Inductor with a Composite Core Core, 15 μH Wirewound ±20 % 10 A Idc
- RS Stock No.:
- 248-8309
- Distrelec Article No.:
- 302-84-603
- Mfr. Part No.:
- 78439370150
- Manufacturer:
- Wurth Elektronik

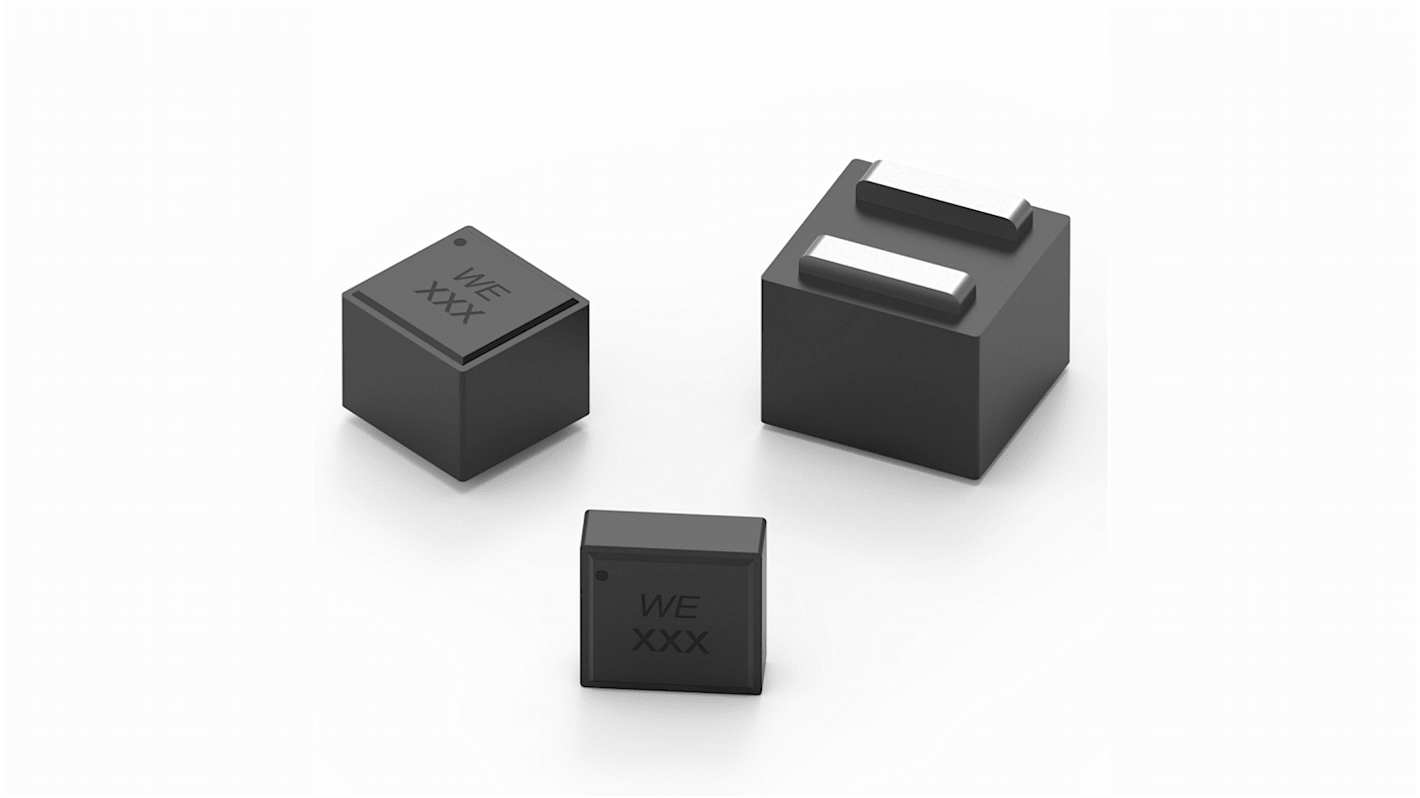

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
PHP344.57
(exc. VAT)
PHP385.92
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 141 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | PHP344.57 |
| 10 - 19 | PHP334.24 |
| 20 - 49 | PHP314.19 |
| 50 - 99 | PHP285.92 |
| 100 + | PHP251.60 |
*price indicative
- RS Stock No.:
- 248-8309
- Distrelec Article No.:
- 302-84-603
- Mfr. Part No.:
- 78439370150
- Manufacturer:
- Wurth Elektronik
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Surface Mount Inductor | |
| Inductance | 15 μH | |
| Maximum DC Current | 10A | |
| Package/Case | 1510 | |
| Packaging | Tape & Reel | |
| Length | 16.4mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 2 | |
| Maximum DC Resistance | 10.5mΩ | |
| Maximum Operating Temperature | 125°C | |
| Series | WE-XHMA | |
| Inductance Tolerance | ±20 % | |
| Termination Style | Surface Mount | |
| Depth | 10mm | |
| Height | 10mm | |
| Core Material | Composite Core | |
| Standards/Approvals | RoHS, REACH, JEDEC JS709B, IEC 61249-2-21 | |
| Maximum Self Resonant Frequency | 8MHz | |
| Distrelec Product Id | 302-84-603 | |
| Inductor Construction | Wirewound | |
| Moulded | Yes | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Surface Mount Inductor | ||
Inductance 15 μH | ||
Maximum DC Current 10A | ||
Package/Case 1510 | ||
Packaging Tape & Reel | ||
Length 16.4mm | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Pin Count 2 | ||
Maximum DC Resistance 10.5mΩ | ||
Maximum Operating Temperature 125°C | ||
Series WE-XHMA | ||
Inductance Tolerance ±20 % | ||
Termination Style Surface Mount | ||
Depth 10mm | ||
Height 10mm | ||
Core Material Composite Core | ||
Standards/Approvals RoHS, REACH, JEDEC JS709B, IEC 61249-2-21 | ||
Maximum Self Resonant Frequency 8MHz | ||
Distrelec Product Id 302-84-603 | ||
Inductor Construction Wirewound | ||
Moulded Yes | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik SMD power inductor used in power supplies for mobile devices, wireless communication devices as well as in DC/DC-converters. Size of this inductor is 1510.
Flat wire coil for low copper losses
Composite core material allows high saturation currents
Compact design
Magnetically shielded
High current capability and handles high transient current spikes
Low leakage flux noise
