MPN

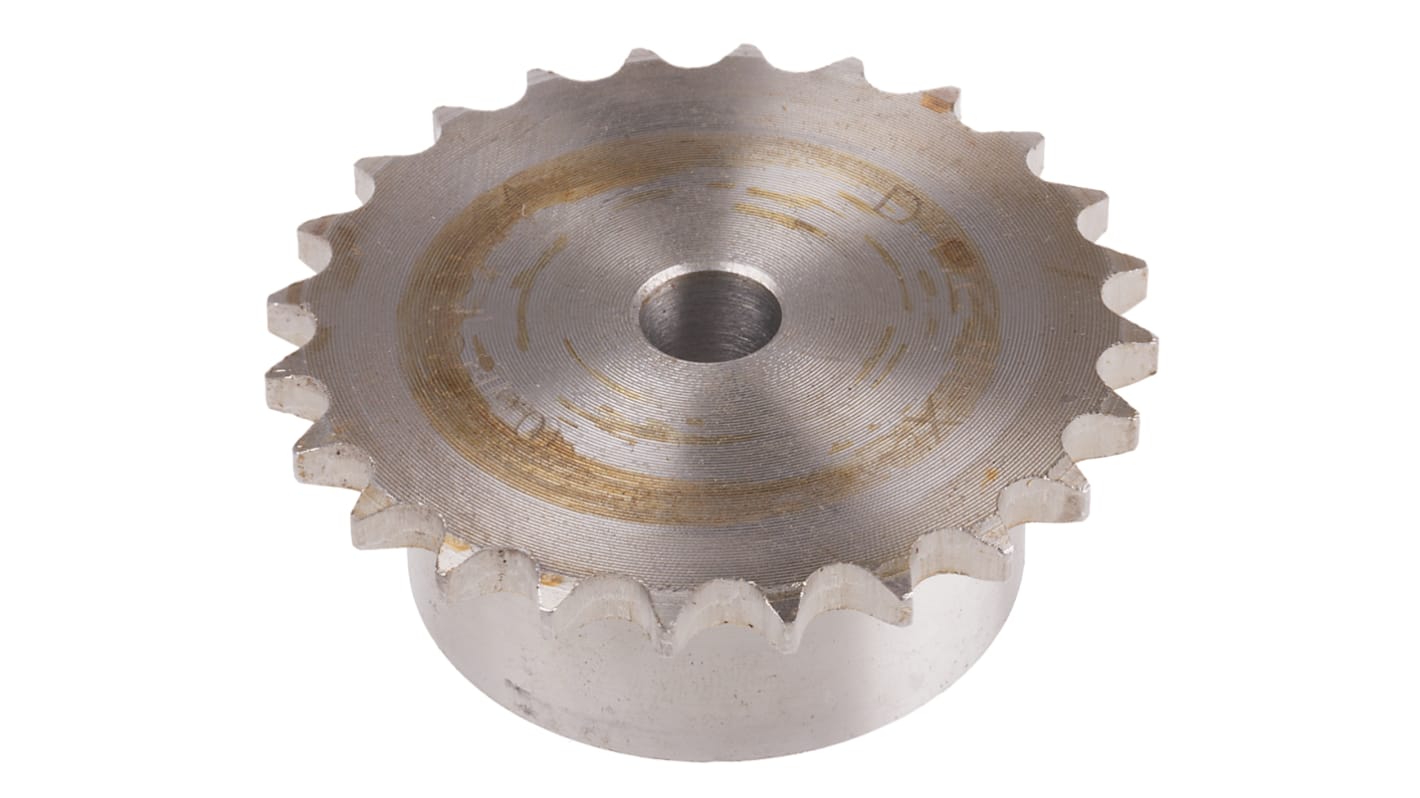

RS PRO 24 Tooth Pilot Bore Sprocket 06 B-1

RS Stock No.:: 184-375
Manufacturer:: RS PRO

RS PRO 24 Tooth Pilot Bore Sprocket 06 B-1

View all Sprockets

Bulk discount available

Subtotal (1 unit)*

PHP877.65

(exc. VAT)

PHP982.97

(inc. VAT)

Add 4 units to get free delivery

Orders below PHP3,000.00 (exc. VAT) cost PHP150.00.

In Stock

5 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 5	PHP877.65
6 - 24	PHP859.21
25 - 49	PHP833.44
50 +	PHP808.44

*price indicative

RS Stock No.:: 184-375
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Number of Teeth	24
	Product Type	Sprocket
	Bore Size	9.53 mm
	Bore Type	Pilot Bore
	Pitch Diameter	72.97mm
	Material	Steel
	Sprocket Width	40mm
	Maximum Inside Diameter	14mm
	Acceptable Chain Type	06 B-1
	Outside Diameter	77 mm
	Standards/Approvals	No

	Select all
	Brand RS PRO
	Number of Teeth 24
	Product Type Sprocket
	Bore Size 9.53 mm
	Bore Type Pilot Bore
	Pitch Diameter 72.97mm
	Material Steel
	Sprocket Width 40mm
	Maximum Inside Diameter 14mm
	Acceptable Chain Type 06 B-1
	Outside Diameter 77 mm
	Standards/Approvals No

Login to download CAD Models

COO (Country of Origin):: CN

British Standard Pilot Bored Sprockets

Manufactured to BS228/13 from steel

Easily re-bored as required
