Molex 19017 Red Insulated Female Spade Connector, Crimp, 2.79 x 0.81 mm Tab Size 22 AWG to 18 AWG
- RS Stock No.:
- 213-5347
- Mfr. Part No.:
- 190170005
- Manufacturer:
- Molex

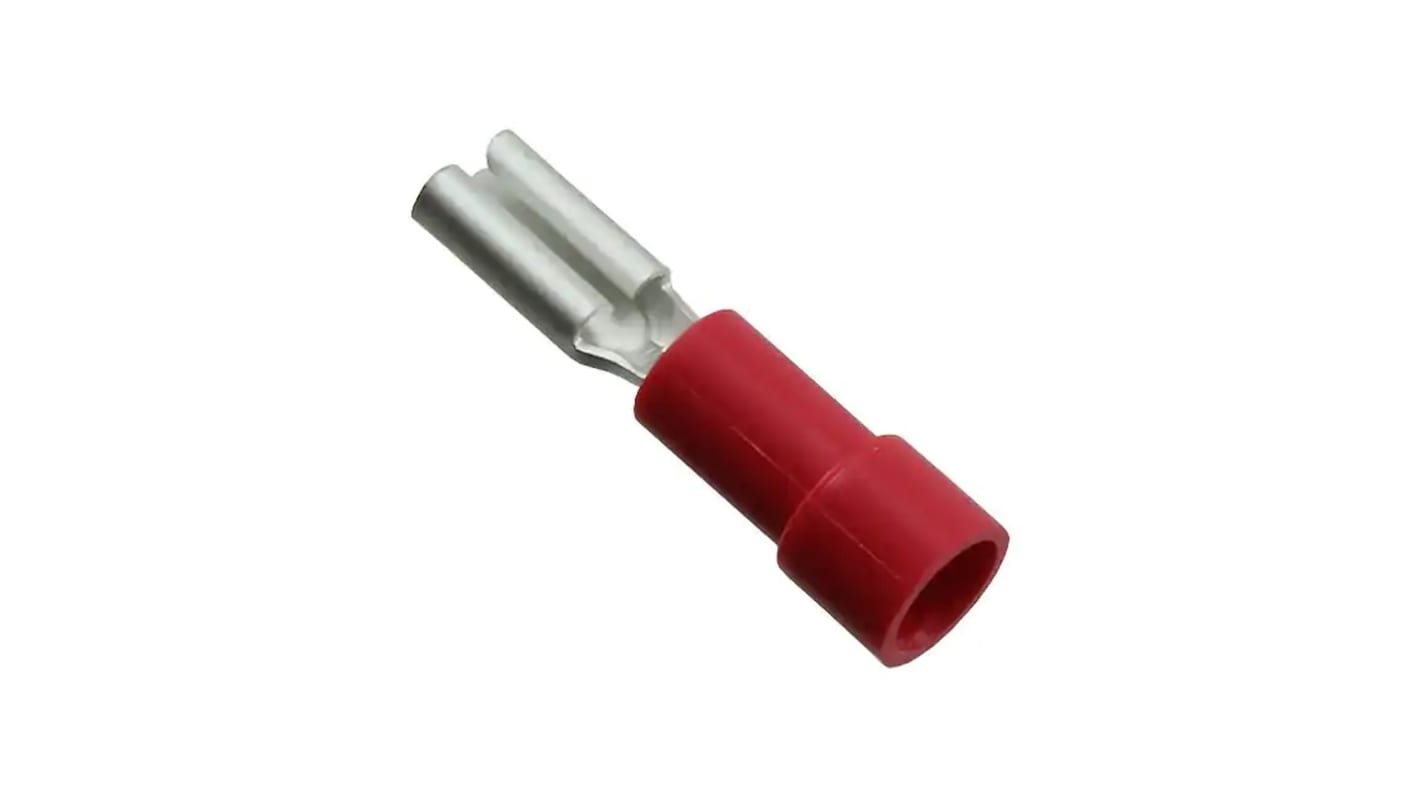

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 50 units)*
PHP656.50
(exc. VAT)
PHP735.50
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 2,300 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 50 - 200 | PHP13.13 | PHP656.50 |
| 250 - 450 | PHP12.736 | PHP636.80 |
| 500 + | PHP12.354 | PHP617.70 |
*price indicative
- RS Stock No.:
- 213-5347
- Mfr. Part No.:
- 190170005
- Manufacturer:
- Molex
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | Spade Connector | |
| Termination Type | Crimp | |
| Gender | Female | |
| Tab Width | 2.79mm | |
| Tab Thickness | 0.81mm | |
| Tab Size | 2.79 x 0.81 mm | |
| Insulation | Insulated | |
| Maximum Wire Size AWG | 18AWG | |
| Minimum Wire Size AWG | 22AWG | |
| Colour | Red | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Orientation | Straight | |
| Standards/Approvals | CSA LR18689, UL E79133 | |
| Insulation Material | Polyvinyl Chloride | |
| Series | 19017 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type Spade Connector | ||
Termination Type Crimp | ||
Gender Female | ||
Tab Width 2.79mm | ||
Tab Thickness 0.81mm | ||
Tab Size 2.79 x 0.81 mm | ||
Insulation Insulated | ||
Maximum Wire Size AWG 18AWG | ||
Minimum Wire Size AWG 22AWG | ||
Colour Red | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Orientation Straight | ||
Standards/Approvals CSA LR18689, UL E79133 | ||
Insulation Material Polyvinyl Chloride | ||
Series 19017 | ||
- COO (Country of Origin):
- US
The Molex 190170005 is a InsulKrimp quick disconnect terminal. which has a female gender, compatible for 18 to 22 AWG or 0.80 to 0.35 mm² Wire. It has a tab dimensions of 2.79 x 0.81mm.
CSA certified
UL certified
