RS PRO Silver Uninsulated Female Spade Connector, Crimp, 0.8 x 6.35 mm Tab Size 16 AWG to 14 AWG
- RS Stock No.:
- 178-8337
- Manufacturer:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 100 units)*
PHP750.40
(exc. VAT)
PHP840.40
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 4,000 unit(s) ready to ship from another location
- Plus 6,000 unit(s) shipping from October 27, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Bag* |
|---|---|---|
| 100 - 900 | PHP7.504 | PHP750.40 |
| 1000 - 1900 | PHP7.279 | PHP727.90 |
| 2000 - 4900 | PHP7.06 | PHP706.00 |
| 5000 - 9900 | PHP6.903 | PHP690.30 |
| 10000 + | PHP5.682 | PHP568.20 |
*price indicative
Sponsored
- RS Stock No.:
- 178-8337
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Termination Type | Crimp | |
| Product Type | Spade Connector | |
| Gender | Female | |
| Tab Width | 6.35mm | |
| Tab Size | 0.8 x 6.35 mm | |
| Tab Thickness | 0.8mm | |
| Insulation | Uninsulated | |
| Maximum Wire Size AWG | 14AWG | |
| Minimum Wire Size AWG | 16AWG | |
| Minimum Wire Size mm² | 1.5mm² | |
| Maximum Wire Size mm² | 2.5mm² | |
| Colour | Silver | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Orientation | Angled | |
| Standards/Approvals | No | |
| Overall Length | 15mm | |
| Series | RS PRO | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Termination Type Crimp | ||
Product Type Spade Connector | ||
Gender Female | ||
Tab Width 6.35mm | ||
Tab Size 0.8 x 6.35 mm | ||
Tab Thickness 0.8mm | ||
Insulation Uninsulated | ||
Maximum Wire Size AWG 14AWG | ||
Minimum Wire Size AWG 16AWG | ||
Minimum Wire Size mm² 1.5mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Colour Silver | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Orientation Angled | ||
Standards/Approvals No | ||
Overall Length 15mm | ||
Series RS PRO | ||
- COO (Country of Origin):
- TW

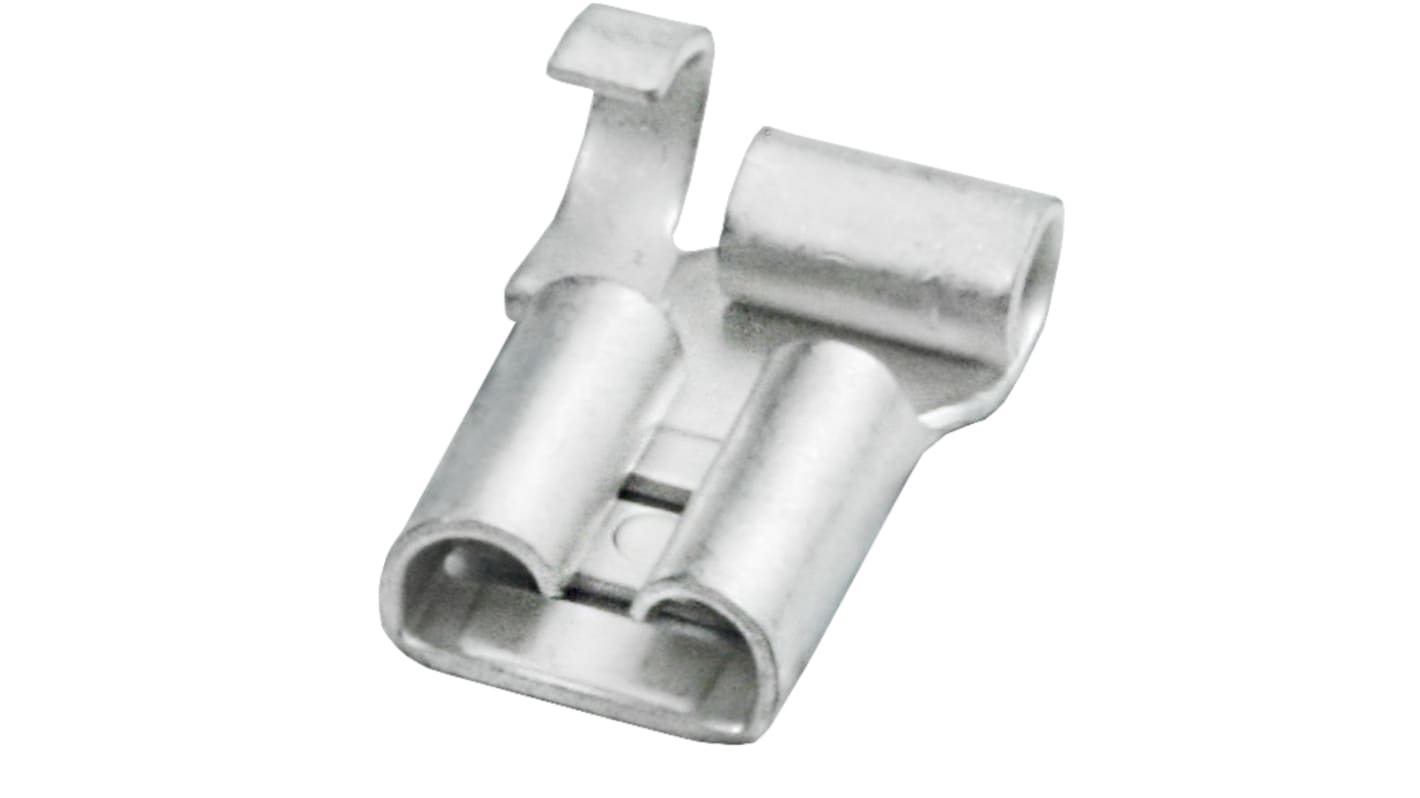

RS PRO Non-Insulated Female Flag Disconnector
This non-insulated flag disconnector from our trusted and reliable own brand RS PRO is perfect for use with wires from 1.5mm² to 2.5mm². This durable flag disconnector features tin plated construction with brass terminals, ensuring a reliable connection. This robust RS PRO flag disconnector offers a versatile quick disconnect crimp terminal suitable for use a variety of applications.
Features and Benefits
Applications
Flag disconnectors are a type of quick disconnect crimp terminal used in applications that require electrical parts and components to be disconnected quickly and safely. They are available in a variety of colours and AWG sizes, with insulated and non-insulated options available. Flag disconnectors are suitable for use in areas such as:
Why RS PRO?
RS PRO is our own brand range and brings you a wide variety of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
