JST FLVDDF Blue Insulated Female Spade Connector, Crimp, 4.75 x 0.5 mm Tab Size 16 AWG to 14 AWG
- RS Stock No.:
- 166-7493
- Mfr. Part No.:
- FLVDDF2-187A-5
- Manufacturer:
- JST

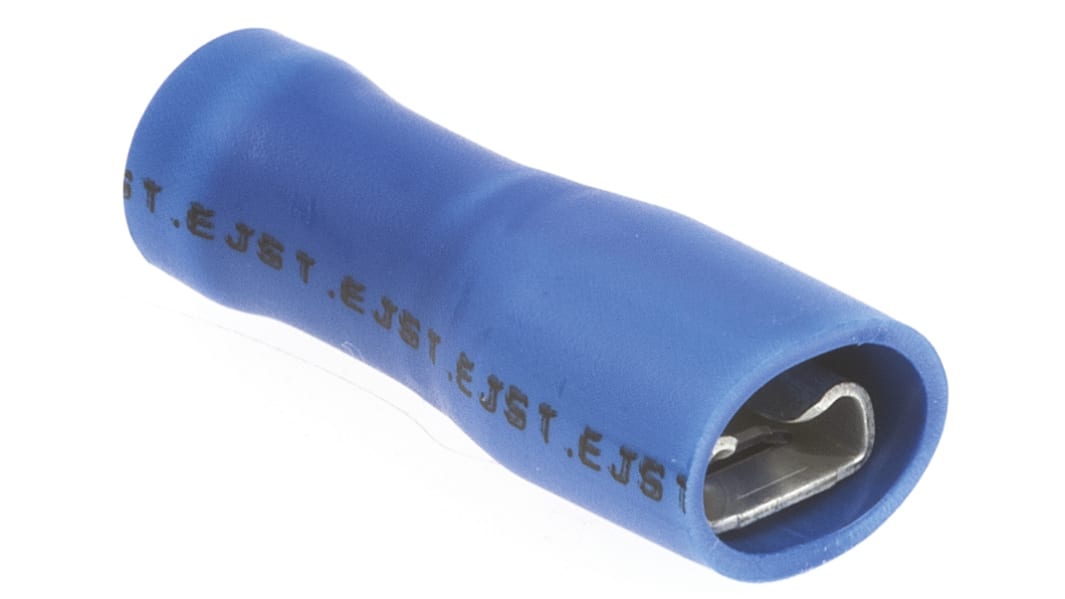

This image is representative of the product range
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 166-7493
- Mfr. Part No.:
- FLVDDF2-187A-5
- Manufacturer:
- JST
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Product Type | Spade Connector | |
| Termination Type | Crimp | |
| Gender | Female | |
| Tab Size | 4.75 x 0.5 mm | |
| Tab Width | 144.78mm | |
| Tab Thickness | 12.7mm | |
| Insulation | Insulated | |
| Minimum Wire Size AWG | 16AWG | |
| Maximum Wire Size mm² | 2.6mm² | |
| Maximum Wire Size AWG | 14AWG | |
| Minimum Wire Size mm² | 1mm² | |
| Colour | Blue | |
| Contact Material | Copper | |
| Orientation | Straight | |
| Insulation Material | Vinyl | |
| Standards/Approvals | No | |
| Overall Length | 19mm | |
| Series | FLVDDF | |
| Select all | ||
|---|---|---|
Brand JST | ||
Product Type Spade Connector | ||
Termination Type Crimp | ||
Gender Female | ||
Tab Size 4.75 x 0.5 mm | ||
Tab Width 144.78mm | ||
Tab Thickness 12.7mm | ||
Insulation Insulated | ||
Minimum Wire Size AWG 16AWG | ||
Maximum Wire Size mm² 2.6mm² | ||
Maximum Wire Size AWG 14AWG | ||
Minimum Wire Size mm² 1mm² | ||
Colour Blue | ||
Contact Material Copper | ||
Orientation Straight | ||
Insulation Material Vinyl | ||
Standards/Approvals No | ||
Overall Length 19mm | ||
Series FLVDDF | ||
- COO (Country of Origin):
- JP
JST Series Fully Insulated Crimp Receptacle Terminals
Fully insulated solderless crimp receptacle termimals available in a range of wire size ranges. These female crimp receptacle terminals have a copper sleeve and flared colour-coded full vinyl insulation.
JST Insulated Crimp Terminals
