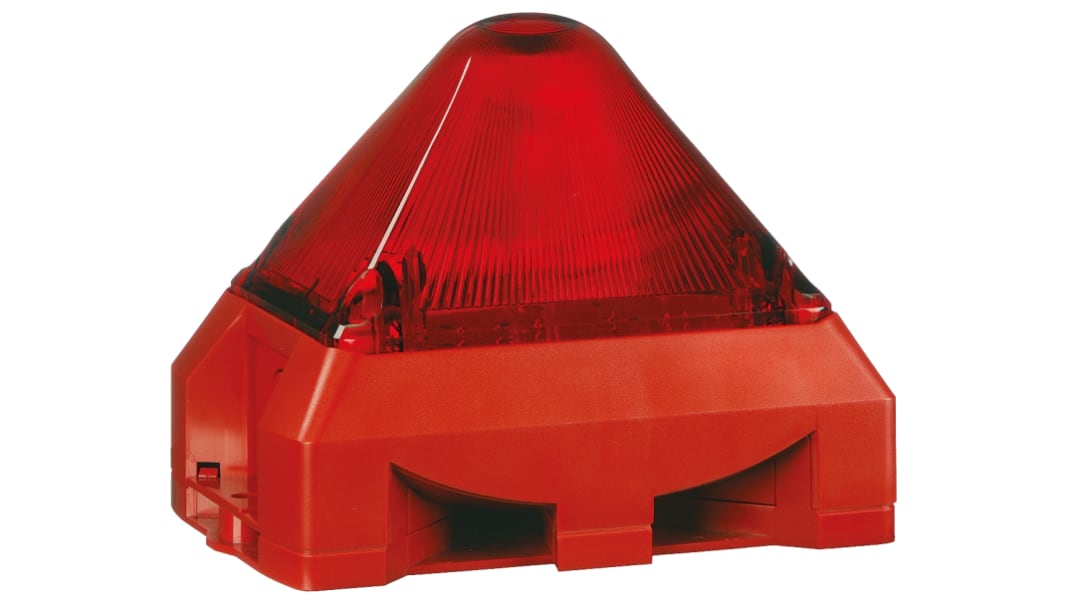

Pfannenberg PY X-MA-05 Series Red Sounder-Beacon Combination, IP66 External Lug, Internal Hole 100 dB @ 1m
- RS Stock No.:
- 846-3608
- Distrelec Article No.:
- 303-69-748
- Mfr. Part No.:
- 21554815000
- Manufacturer:
- Pfannenberg
Subtotal (1 unit)*
PHP27,561.03
(exc. VAT)
PHP30,868.35
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP27,561.03 |
*price indicative
- RS Stock No.:
- 846-3608
- Distrelec Article No.:
- 303-69-748
- Mfr. Part No.:
- 21554815000
- Manufacturer:
- Pfannenberg
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pfannenberg | |
| Product Type | Sounder-Beacon Combination | |
| Minimum Sound Level | -20dB | |
| Lens Colour | Red | |
| Current Type | AC/DC | |
| Light Effect | Flashing | |
| Sounder Type | Electronic | |
| Mount Type | External Lug, Internal Hole | |
| Terminal Type | Wire | |
| Series | PY X-MA-05 | |
| Bulb Type | Xenon | |
| Sound Level at 1m | 100dB | |
| Minimum Operating Temperature | -40°C | |
| Housing Colour | Red | |
| Maximum Operating Temperature | 55°C | |
| Maximum Sound Level | 100dB | |
| Number of Tones | 8 | |
| Hazardous Area Certification | NO | |
| IP Rating | IP66 | |
| Housing Material | ABS/Polycarbonate | |
| Standards/Approvals | DIN EN ISO 7731, DIN-VDE 0837, EN 60204-1, EN 60825-1, IEC 825 | |
| Select all | ||
|---|---|---|
Brand Pfannenberg | ||
Product Type Sounder-Beacon Combination | ||
Minimum Sound Level -20dB | ||
Lens Colour Red | ||
Current Type AC/DC | ||
Light Effect Flashing | ||
Sounder Type Electronic | ||
Mount Type External Lug, Internal Hole | ||
Terminal Type Wire | ||
Series PY X-MA-05 | ||
Bulb Type Xenon | ||
Sound Level at 1m 100dB | ||
Minimum Operating Temperature -40°C | ||
Housing Colour Red | ||
Maximum Operating Temperature 55°C | ||
Maximum Sound Level 100dB | ||
Number of Tones 8 | ||
Hazardous Area Certification NO | ||
IP Rating IP66 | ||
Housing Material ABS/Polycarbonate | ||
Standards/Approvals DIN EN ISO 7731, DIN-VDE 0837, EN 60204-1, EN 60825-1, IEC 825 | ||
Pfannenberg PYRA Flashing Sounder Beacons, PY-X-MA-05
The PYRA PY-X-MA-05 is an electronic sounder beacon with a 100 dB output and a flashing xenon light effect. It has 8 alarm tones and a 5J flash, with a choice of four different flash rates. The PY X-MA-05 has a large signalling range and is safe and easy to install.
Rectangular PC/ABS blend housing with pyramid style PC lens
Safe - an incorrect installation is virtually impossible
Easy - significantly shorter assembly and installation times
Economical - largest possible signalling range due to effective Xenon technology
Installation options with external lugs or internal holes
Choice of four different flash rates via DIP switch
Suitable for panel mounting
Electronic constant current regulation at 24 V ac/dc devices to avoid load fluctuations
Integrated inrush current limitation and undervoltage detection
Providing full synchronization on multi-flashing light systems
Light and sounder can be controlled separately
8 alarm tones, 100 dB
Visual covering distance of 11 m
IK08 Impact-proof housing
IP66 protection according to EN 60529
5J flash
10 year warranty
Approvals
UL pending.
