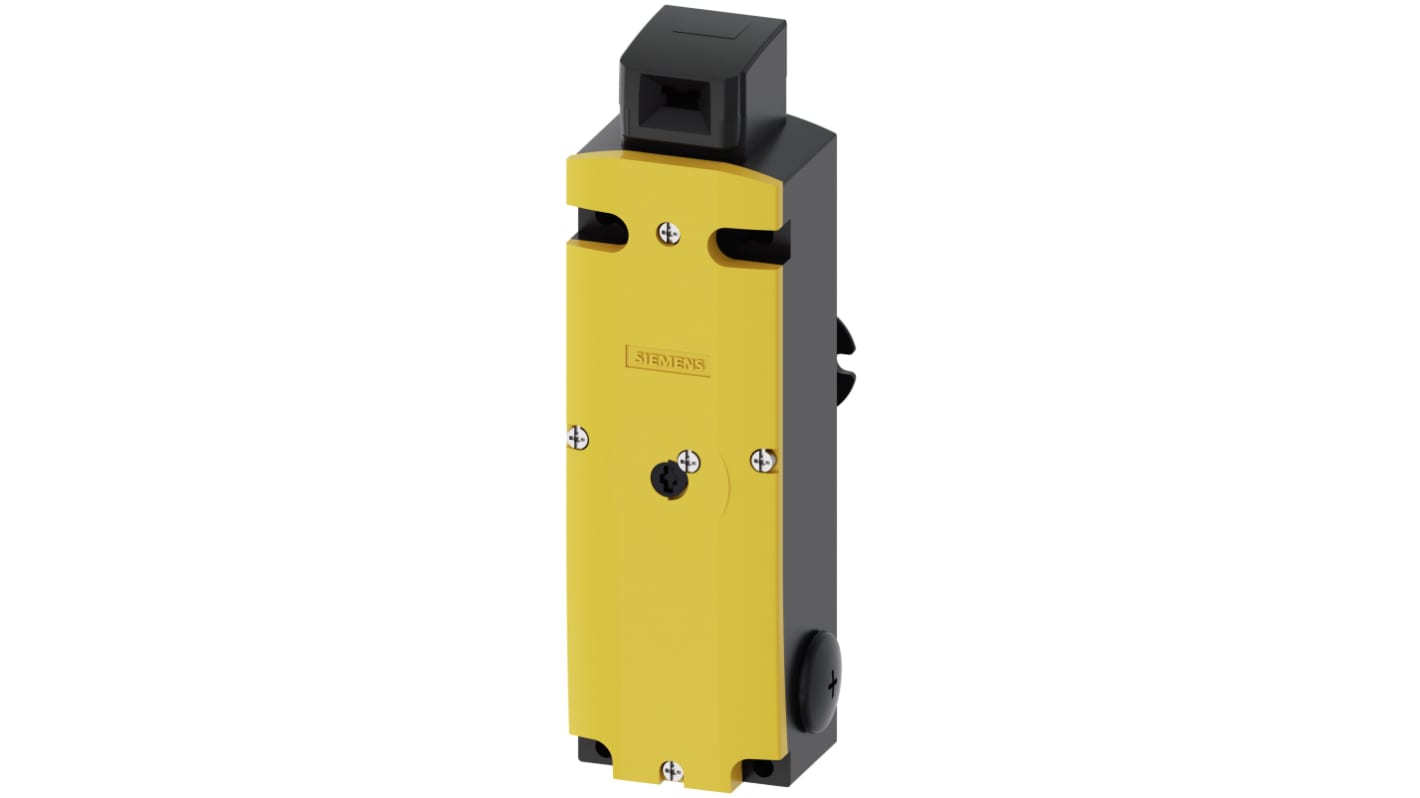

Siemens 3SE5 Series Solenoid Interlock Switch, Power to Lock Actuator Included
- RS Stock No.:
- 763-7075
- Mfr. Part No.:
- 3SE5312-0SG11
- Manufacturer:
- Siemens
Subtotal (1 unit)*
PHP49,014.84
(exc. VAT)
PHP54,896.62
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from March 31, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP49,014.84 |
*price indicative
- RS Stock No.:
- 763-7075
- Mfr. Part No.:
- 3SE5312-0SG11
- Manufacturer:
- Siemens
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Solenoid Interlock Switch | |
| Actuator Included | Yes | |
| Series | 3SE5 | |
| Actuator Type | Standard Coded | |
| Safety Contacts | 1 NO | |
| Terminal Type | Screw | |
| Conduit Entry | M20 | |
| Contact Current | 3A | |
| Housing Material | Metal | |
| Contact DC Voltage | 24V dc | |
| Power to Lock/Unlock | Power to Lock | |
| Depth | 184.1mm | |
| Hazardous Area Certification | No | |
| Standards/Approvals | CE Certified | |
| Width | 43.8 mm | |
| Length | 54mm | |
| IP Rating | IP67, IP66 | |
| Power Consumption | 3.5W | |
| Supply Voltage | 24 V dc | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Solenoid Interlock Switch | ||
Actuator Included Yes | ||
Series 3SE5 | ||
Actuator Type Standard Coded | ||
Safety Contacts 1 NO | ||
Terminal Type Screw | ||
Conduit Entry M20 | ||
Contact Current 3A | ||
Housing Material Metal | ||
Contact DC Voltage 24V dc | ||
Power to Lock/Unlock Power to Lock | ||
Depth 184.1mm | ||
Hazardous Area Certification No | ||
Standards/Approvals CE Certified | ||
Width 43.8 mm | ||
Length 54mm | ||
IP Rating IP67, IP66 | ||
Power Consumption 3.5W | ||
Supply Voltage 24 V dc | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
Siemens Solenoid Interlock Switch, 24V DC Supply Voltage, 53mm Length - 3SE5 Series - 3SE5312-0SG11
Keep personnel and processes safe with this solenoid interlock switch from Siemens. You can use it to control entry to sensitive or dangerous areas while potentially dangerous kit is at work. The switch can be set to only allow a guard to open only when it's fully safe. For example, if the power to cutting equipment is stopped, access will only be given once the blade stops spinning. The unit accepts a standard supply voltage of 24V DC, so it's widely compatible with industrial systems such as CNC machinery in workshops or packaging equipment in warehouses.
Features & Benefits
• 30g/11ms shock resistance and 0.35mm/5g vibration resistance for smooth running under challenging conditions
• Compact dimensions of 43.8 (D) x 54 (L) x 184.1mm (D) for use in tight areas
• Operates reliably in a temperature range between -25°C and +60°C
• M20 conduit entry for easy installation and maintenance
• Repeat accuracy of 0.05mm for reliable locking and unlocking every time
Is this solenoid interlock switch waterproof?
Yes, it has an IP67 rating, indicating protection against short periods of immersion and high-pressure jets of water from any direction.
