Staubli Solar Cable 10 mm² CSA 98 A Flame Retardant, Halogen Free, -40 → +90 °C Black
- RS Stock No.:
- 172-2316
- Mfr. Part No.:
- 62.7433-91021
- Manufacturer:
- Staubli
100 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price Each (On a Reel of 50)
PHP188.902
(exc. VAT)
PHP211.57
(inc. VAT)
| Units | Per Unit | Per Reel* |
| 50 - 200 | PHP188.902 | PHP9,445.10 |
| 250 - 450 | PHP185.123 | PHP9,256.15 |
| 500 + | PHP181.421 | PHP9,071.05 |
| *price indicative | ||
- RS Stock No.:
- 172-2316
- Mfr. Part No.:
- 62.7433-91021
- Manufacturer:
- Staubli
Technical data sheets
Legislation and Compliance
Product Details

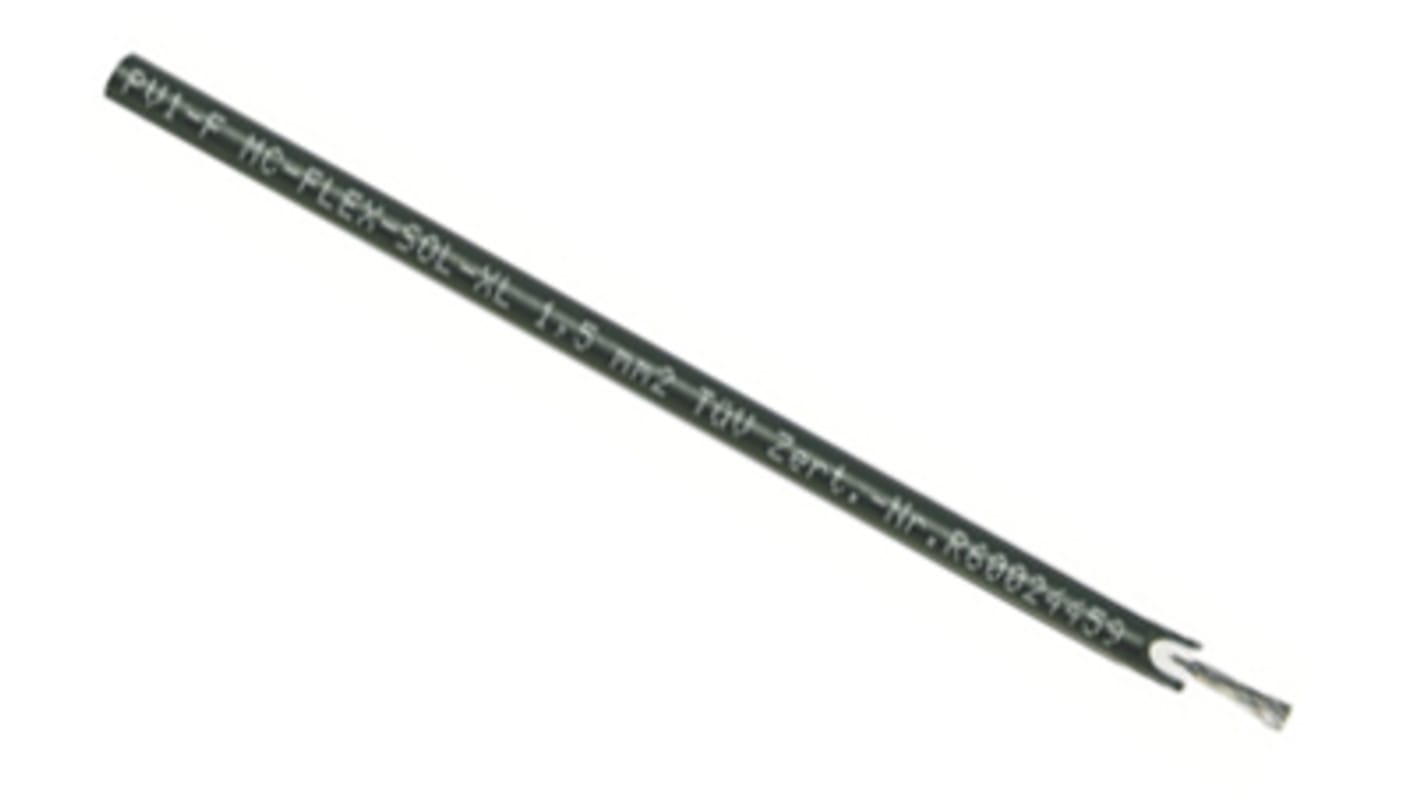

Halogen free cross-linked polyolefin double layers photovoltaic cables for use at the photovoltaic power systems.
Specifications
Attribute | Value |
|---|---|
| Fire Behaviour | Flame Retardant, Halogen Free |
| Cross Sectional Area | 10 mm² |
| Current Rating | 98 A |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +90°C |
| Sheath Colour | Black |
| Outer Diameter | 7.2mm |
| Solar Cable Type | Solar PV |
| Cable Shape | Single Core |
| Better World Claim | Renewable energy solution |
| Better World Product | Yes |
| Series | FLEX-SOL |
| Voltage Rating | 1500 V |
| Standards Met | EN 50618, IEC, IEC/EN 60228, TUV |
| Operating Temperature Range | -40 → +90 °C |
