TDK Single Layer Ceramic Capacitor (SLCC) 4nF 20kV dc ±10% Z5T Dielectric, UHV +85°C Max Op. Temp.
- RS Stock No.:
- 921-4352
- Mfr. Part No.:
- UHV-3A
- Manufacturer:
- TDK

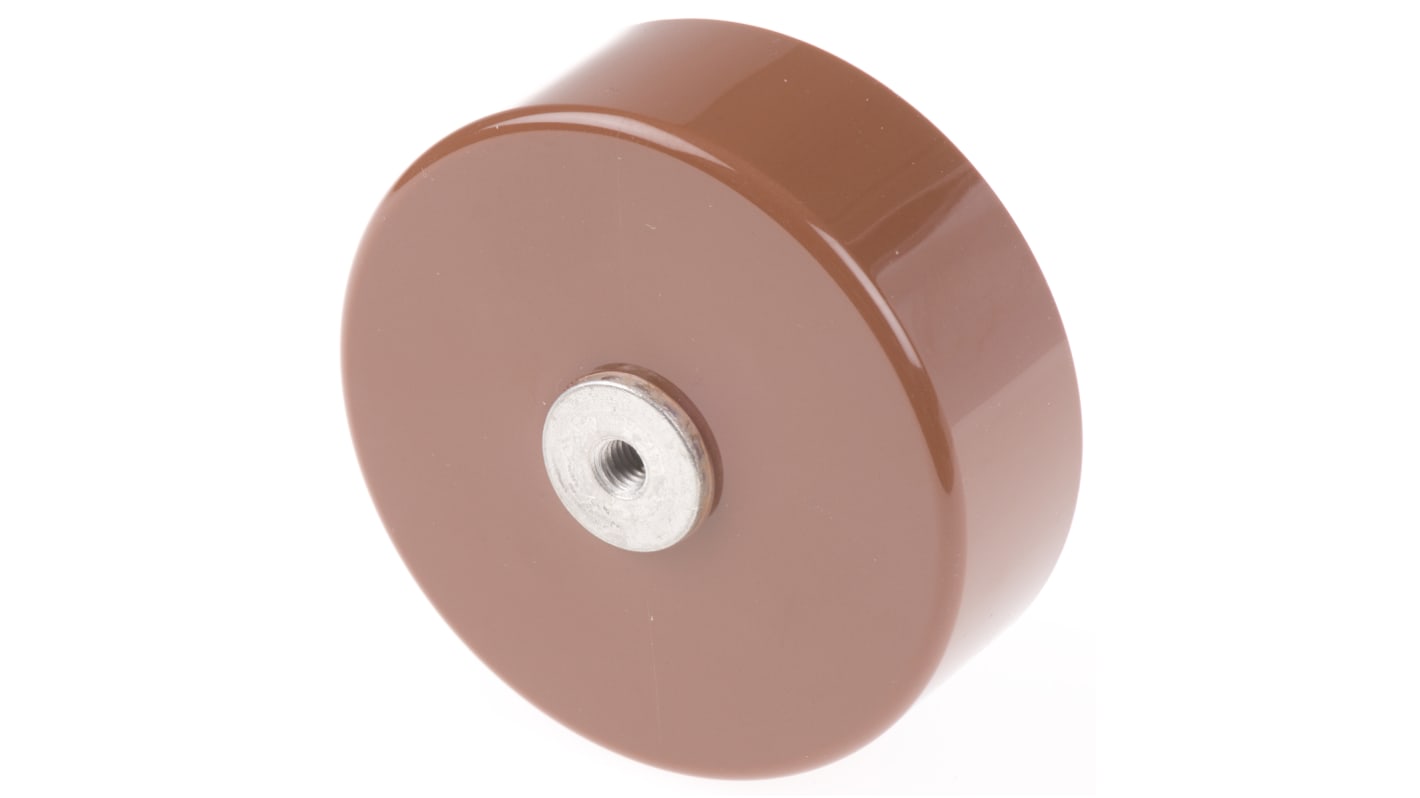

This image is representative of the product range
Subtotal (1 tray of 20 units)*
PHP97,110.32
(exc. VAT)
PHP108,763.56
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 80 unit(s) shipping from January 05, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tray* |
|---|---|---|
| 20 + | PHP4,855.516 | PHP97,110.32 |
*price indicative
- RS Stock No.:
- 921-4352
- Mfr. Part No.:
- UHV-3A
- Manufacturer:
- TDK
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Capacitance | 4nF | |
| Voltage | 20kV dc | |
| Series | UHV | |
| Tolerance | ±10% | |
| Dielectric | Z5T | |
| Diameter | 60mm | |
| Length | 23mm | |
| Dimensions | 60 x 23mm | |
| Terminal Type | Screw Terminal | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -30°C | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Capacitance 4nF | ||
Voltage 20kV dc | ||
Series UHV | ||
Tolerance ±10% | ||
Dielectric Z5T | ||
Diameter 60mm | ||
Length 23mm | ||
Dimensions 60 x 23mm | ||
Terminal Type Screw Terminal | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -30°C | ||
- COO (Country of Origin):
- JP
TDK Class 2 moulded ceramic capacitor
Ultra-high Voltage (UHV) Ceramic Capacitors, FHV Series
Moulded Type with Metal Terminals
High capacitance and low temperature characteristics of capacitance
Small size and low dissipation factor
Excellent voltage-capacitance characteristics
Screw terminals for easy mounting
Applications in High voltage power supplies and laser equipment
Moulded Type with Metal Terminals
High capacitance and low temperature characteristics of capacitance
Small size and low dissipation factor
Excellent voltage-capacitance characteristics
Screw terminals for easy mounting
Applications in High voltage power supplies and laser equipment
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
