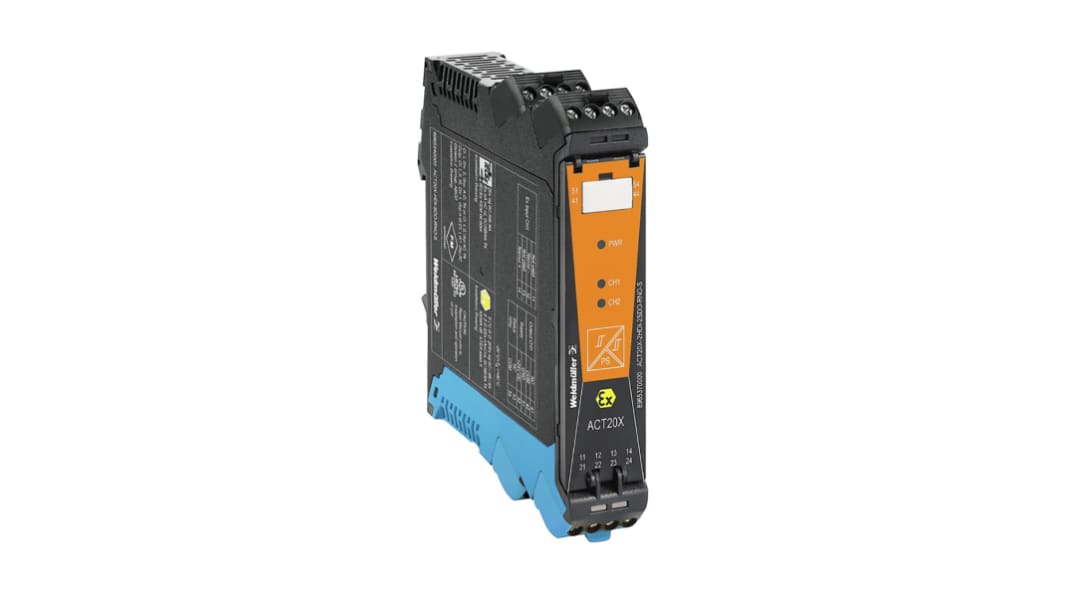

Weidmüller ACT20X Series Signal Conditioner, Switch Input, NPN Open Collector Output, 19.2V, 31.2 V Supply, IECEx
- RS Stock No.:
- 902-8000
- Mfr. Part No.:
- 8965360000
- Manufacturer:
- Weidmüller
Subtotal (1 unit)*
PHP12,740.55
(exc. VAT)
PHP14,269.42
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP12,740.55 |
*price indicative
- RS Stock No.:
- 902-8000
- Mfr. Part No.:
- 8965360000
- Manufacturer:
- Weidmüller
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Product Type | Signal Conditioner | |
| Input Signal Type | Switch | |
| Output Signal Type | NPN Open Collector | |
| Output Range | 2.5 V dc | |
| Supply Voltage | 19.2, 31.2V | |
| Hazardous Area Certification | IECEx | |
| Mount Type | DIN Rail | |
| Maximum Operating Temperature | 60°C | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -20°C | |
| IP Rating | IP20 | |
| SIL Level | SIL 2 | |
| Standards/Approvals | EAC, UL | |
| Series | ACT20X | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Product Type Signal Conditioner | ||
Input Signal Type Switch | ||
Output Signal Type NPN Open Collector | ||
Output Range 2.5 V dc | ||
Supply Voltage 19.2, 31.2V | ||
Hazardous Area Certification IECEx | ||
Mount Type DIN Rail | ||
Maximum Operating Temperature 60°C | ||
Terminal Type Screw | ||
Minimum Operating Temperature -20°C | ||
IP Rating IP20 | ||
SIL Level SIL 2 | ||
Standards/Approvals EAC, UL | ||
Series ACT20X | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DK
ACT20X HDI-SDO-S/2HDI-2SDO-S Signal Isolating Converter
The ACT20X HDI-SDO-S/2HDI-2SDO-S isolating converters are specially designed for recording NAMUR sensor signals and digital switching signals which originate from Ex zone 0. Negative-switching (NPN) transitor outputs are used to transmit the signals to applications in the safe zone.
DIN Rail mounting
22.5 mm width
Alarm contact in the event of a malfunction
1 or 2 channel options
Screw connection, removable terminal block
IP20 protection
